  • Seco-Larm Enforcer 4-in-1 Analog Turret Camera, White

Seco-Larm Enforcer 4-in-1 Analog Turret Camera, White

SKU: SEEVY2251AxWQ

Please Select Option To View Availability

$32.78 to $52.22

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Details

Supports 4 Video Formats for Most Surveillance Networks

Add a high definition surveillance camera that operates using multiple different video formats with the Seco-Larm Enforcer 4-in-1 Analog Turret Camera. This HD turret camera provides high-quality surveillance for indoor and outdoor applications with useful features such as wide viewing angles, built-in IR LED, and Digital Noise Reduction for clear images 24/7. The camera supports four different video formats: TVI, CVI, AHD, and Analog, with TVI as the default.

  • Supports TVI, CVI, AHD, and Analog video formats in 1080p resolution
  • Split-glass design eliminates IR reflection
  • IR LEDs provide night vision over 60 feet
  • Cables concealed in bracket to prevent tampering
  • Joystick OSD control makes configuration easy
  • Weatherproof (IP66) and vandal resistant design for outdoor use
  • Available in Fixed and Varifocal Lense models

Installation Details

The 4-in-1 HD Analog Turret Camera mounts to a ceiling or wall using the integrated/removable mounting base and included hardware. The mounting base conceals the power cables to help prevent tampering. The camera uses 12VDC power.

The camera provides OSD settings that are programmable through the included in-line OSD joystick. Using the joystick, you can program special features at a moment's notice.

Contents

  • Turret Camera
  • Power Balun
  • (3) Screws
  • (3) Screw Anchors
  • Mounting Template
  • Manuals

Notes

  • Do not point the camera at the sun.
  • Do not mount the camera in areas exposed to strong magnetic fields or strong electrical signals.

Building A Secure Future Since 1971

So many places and things to protect; so many ways to protect them; one partner: Seco-Larm. Home Controls offers an impressive line of Seco-Larm security products, ranging from simple switches to some of the most sophisticated alarm devices. Whether it's physical security, CCTV, access control, RF equipment, or vehicle security, Seco-Larm is the premier choice. Seco-Larm gives its customers an extensive range of dependable, cost-effective security products with a full program of service and support.

Specifications

  • Manufacturer Part #:

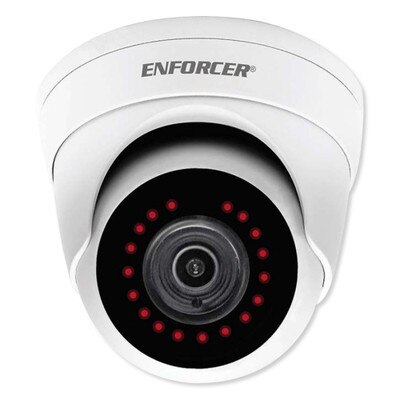

    • EV-Y2251-A2WQ: Fixed Turret Camera

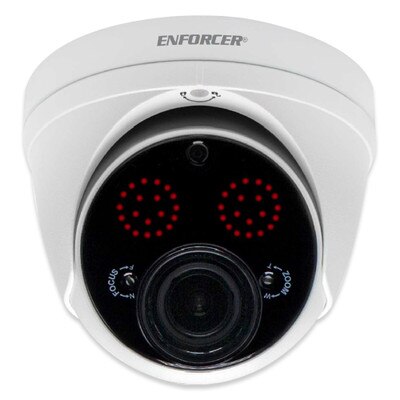

    • EV-Y2251-AMWQ: Varifocal Turret Camera
  • CMOS: 1/2.7" 2MP CMOS
  • Resolution (HD): 1920x1080
  • 3DNR: Yes
  • 2DNR: Yes
  • Viewing Angle:
    • EV-Y2251-A2WQ: 121°
    • EV-Y2251-AMWQ: 38 to 138°
  • Number of IR LEDs:
    • EV-Y2251-A2WQ: 18
    • EV-Y2251-AMWQ: 40
  • IR Range:
    • EV-Y2251-A2WQ: Up to 65ft
    • EV-Y2251-AMWQ: Up to 148ft
  • FPS:
    • PAL 25FPS; NTSC 30FPS
  • F Stop: F1.6
  • Minimum illumination:
    • (IR On): 0 Lux
    • (IR Off): 0.05 Lux
  • Operating Voltage: 12VDC
  • Operating Temperature: -4° to 131°F (-20° to 55°C)
  • Dimensions:
    • EV-Y2251-A2WQ: 3-15/16 x 3-9/16 inches (100 x 90 mm)
    • EV-Y2251-AMWQ: 4-15/16 x 4-5/16 (125 x 110mm)
  • Weight:
    • EV-Y2251-A2WQ: 1lb-1 ounces (474g)
    • EV-Y2251-AMWQ: 1lb, 9.4 oz (720g)
  • Approvals: FCC, CE, RoHS
  • Warranty: 3 Years

Downloads

»Seco-Larm Enforcer 4-in-1 HD TVI, CVI, AHD Analog Turret Cameras Spec Sheet (.pdf)
»Seco-Larm Enforcer 4-in-1 HD TVI, CVI, AHD Analog Turret Cameras Installation Manual (.pdf)
»Seco-Larm Enforcer 4-in-1 HD TVI, CVI, AHD Analog Turret Cameras User Manual (.pdf)
