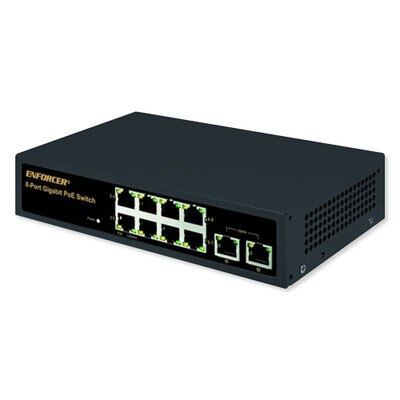

Seco-Larm 8-Port Enforcer Unmanaged PoE Switch

SKU: SENS508UTGAQ

Order now and we'll ship same business day (if ordered before 3 pm PST).

$139.95

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Details

Provide Data and Power to 8 PoE Enabled Devices

Provide Ethernet data and power to up to 8 PoE devices with the Seco-Larm 8-Port Enforcer Unmanaged PoE Switch. This switch features extra backplane bandwidth and fast packet forwarding capability for smooth video transmission and clear images, making it ideal for HD CCTV installations. It supports 10/100/1000Mbps Ethernet speed and has 8 downlink ports and 2 uplinks ports with a switching capacity of 20Gbps. All of these features combined will ensure a strong and efficient network connection for your PoE devices such as IP cameras, IP access control, IP speakers/intercoms, VOIP, and other PoE devices.

  • Provides data transmission and power to 8 PoE enabled devices
  • Specially designed for video transmission, providing extra backplane bandwidth and fast packet forwarding
  • Supports 1000BaseT and 20Gbps switching capacity
  • (8) downlink ports and (2) uplink ports
  • Simple plug-and-play installation
  • Ideal for IP cameras, IP access, VOIP, IP speakers/intercoms, and HD CCTV installations

Contents

  • Unmanaged POE Switch, 8 Port, 20Gbps
  • Manual

Seco-Larm Security Products

So many places and things to protect; so many ways to protect them; one partner: Seco-Larm. Under the Enforcer trademark, Home Controls offers an impressive line of Seco-Larm security products, ranging from simple switches to some of the most sophisticated alarm devices. Whether for physical security, CCTV, access control, RF equipment, or vehicle security, Seco-Larm is the premier choice. Seco-Larm gives its customers such an extensive range of dependable, cost-effective security products with a full program of service and support.

Specifications

  • Manufacturer Part #: NS-508UT-GAQ
  • Operating Voltage: 100~240 VAC
  • Number of Downlink Ports: 8
  • Number of Downlink Ports: 2
  • Power Consumption:<15W
  • Ethernet Speed: 10/100/1000Mbps (uplink, 1000Mbps)
  • Ethernet Standard:
    • IEEE 802.3
    • IEEE 802.3u
    • IEEE 802.3af
    • IEEE 802.3at
    • IEEE 802.3x
    • IEEE 802.3ab
  • Transmission Distance: 328ft (100m)
  • PoE Capacity: 120W
  • Switch Capacity: 20Gbps
  • Transfer Rate:
    • 10Mbps: 14,880pps
    • 100Mbps: 148,800pps
    • 1000Mbps: 1,488,000pps
  • MAC Address Table: 4K
  • LED Indicators: Connection/transmission and PoE for each port, power

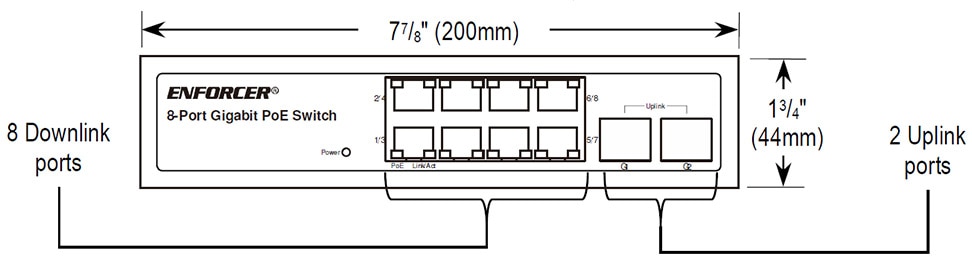

  • Dimensions: 7-7/8 x 2-3/8 x 4-5/8 inches (200 x 44 x 118 mm)
  • Credentials: FCC, RoHS, CE
  • Warranty: 1 Year
