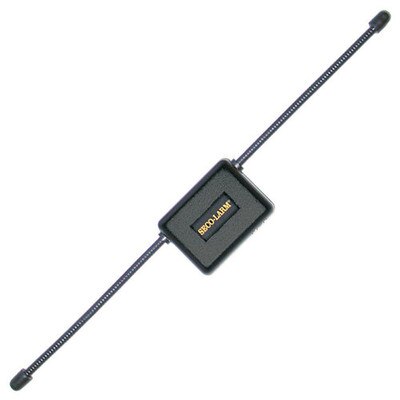

Seco-Larm Enforcer Extended Range RF Antenna

Extends Range Up To 1000 Feet

The Seco-Larm Enforcer Extended Range Antenna extends the range of the following receivers up to 1000 feet (open air):

• SK-910R single-channel receiver,
• SK-910RA miniature single-channel receiver,
• SK-910R2 two-channel receiver,
• SK-910R4 four-channel receiver.

This antenna easily plugs into a connector on the receiver – no extra wiring needed and includes a 9 foot cable. Double-stick mounting tape is included.

Seco-Larm Security Products

So many places and things to protect; so many ways to protect them; one partner: Seco-Larm. Under the Enforcer trademark, Home Controls offers an impressive line of Seco-Larm security products, ranging from simple switches to some of the most sophisticated alarm devices. Whether for physical security, CCTV, access control, RF equipment, or vehicle security, Seco-Larm is the premier choice. Seco-Larm gives its customers such an extensive range of dependable, cost-effective security products with a full program of service and support.

Product Features

• Extends range up to 1,000 feet for these Seco-Larm RF receivers:
• SK-910RA single-channel miniature receiver,
• SK-910R single-channel receiver,
• SK-910R2 two-channel receiver,
• SK-910R4 four-channel receiver.
• Easily plugs into a connector on the receiver’s motherboard – no extra wiring needed.
• Includes 9-foot cable.
• Double-stick mounting tape included.

Technical Details

• Power supply: +5VDC, ± 0.1VDC (supplied by receiver’s motherboard).
• Current consumption: 4.0mA.
• Sensitivity: 0.89μV @ -108dBm.
• Frequency: 315MHz.
• Bandwidth: 3.0MHz (-3dB).

»Seco-Larm Enforcer SK-91ERSD Extended Range RF Antenna Data Sheet (.pdf)
