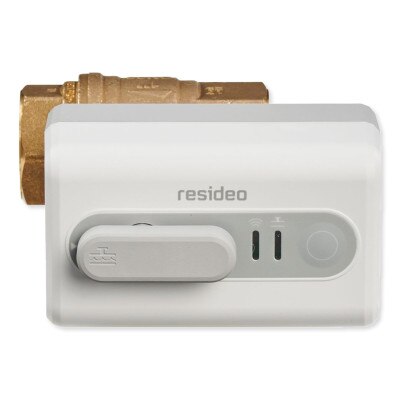

Resideo L5 Wi-Fi Actuator and NPT Ball Valve

Stops Water Leaks And Prevents Damage Caused By Flooding

Protect your property from costly water damage with the Resideo L5 Wi-Fi Actuator and NPT Ball Valve. You will no longer have to worry about water leaks that can cause flooding because the Resideo L5 Wi-Fi Actuator easily attaches onto your property"s water main and will automatically shut off the water flow when water is detected. To detect water leaks, the actuator comes with a 5ft. water sensor cable that connects to the actuator and can detect water along the entire length. You can even expand the detection range by up to 500 ft. by linking together additional Resideo Rope Sensors. You can also install multiple Resideo Water Leak Detectors (sold separately) to cover your entire property and place them in areas that are more susceptible to water leaks and floods such as under sinks, around toilets, near water heaters and washers, or under other appliances.

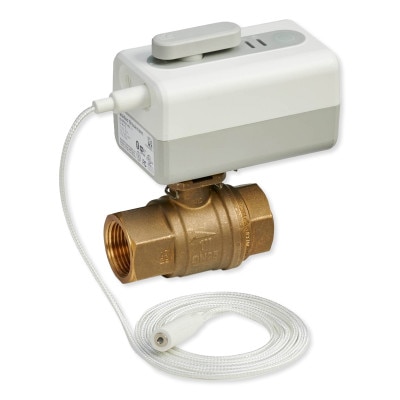

• Wi-Fi Water shut-off valve with 5ft. water sensor cable stops water flow when a leak is detected
• Multiple water sensor cables can be connected to expand water detection area by up to 500 feet
• One L5 Wi-Fi Water Leak Shutoff Valve can be paired up to 30 Resideo Wi-Fi Leak Detectors (sold separately)
• Ideal for detecting leaks under sinks, bathroom toilets, washers, water heaters, or any appliance that may cause water leaks

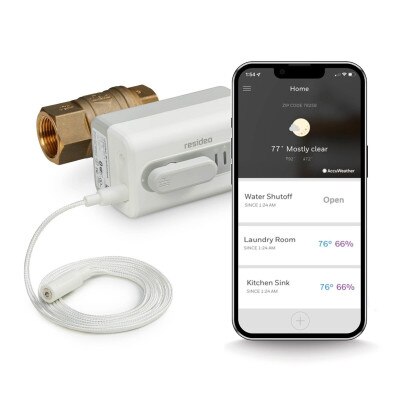

• Resideo App for iOS and Android devices allows you to set up notifications, customize alerts, and pre-set shutoff locations

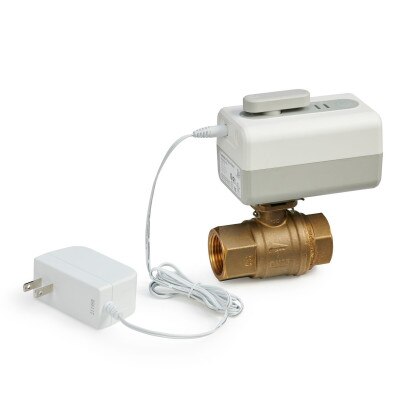

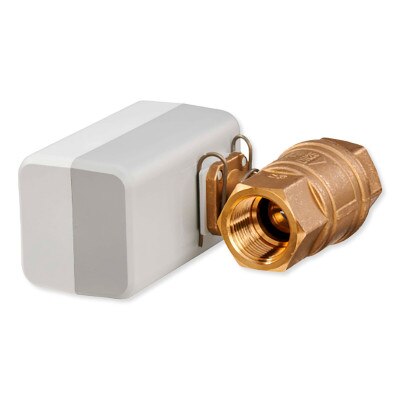

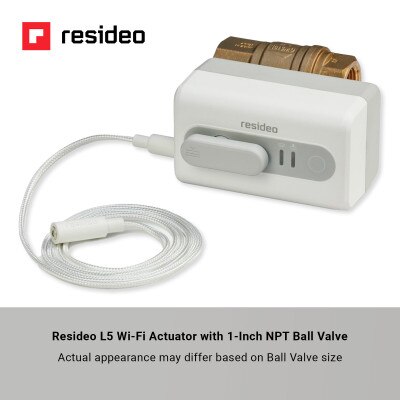

The L5 Wi-Fi Actuator also includes a 10 ft. power adapter and a metal clip for attaching the device to the water ball valve. Other design features include a manual override lever for emergencies, a power button to control the valve and initiate Bluetooth pairing, an LED indicator to display connectivity and valve status, and an ISO flange valve interface and an Auxiliary Input. The L5 Wi-Fi Water Leak Shutoff Valve connects to your home Wi-Fi network to give you full control over your valve and can be connected and controlled with the Resideo App (for iOS and Android devices). The Resideo App works as a water leak detection control panel where you"ll be able to set up notifications, customize alerts, and pre-set shutoff locations. The L5 Wi-Fi Actuator is offered in multiple models with NPT Ball Valve sizes: 1", 1/2", 1-1/4", and 3/4".

Place 5 Ft. Cable Sensors Near or Under:

• Kitchen: dishwashers, refrigerators, icemakers
• Bathroom: toilets, bathtubs, showers
• Water Heaters
• Washing Machines
• Sinks

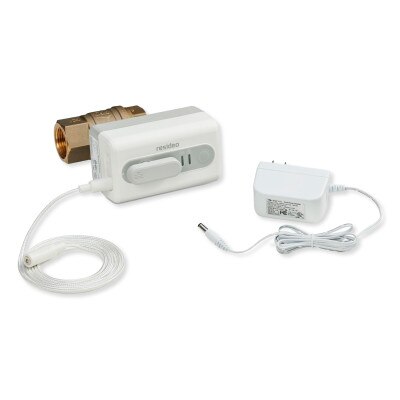

Contents

• L5 Actuator
• Lead-Free Ball Valve
• Power Supply Adapter
• Actuator to Ball Valve Metal Clip
• Water Leak Detector Cable

Notes

• Requires connection to a home"s Wi-Fi network and a smart device with the Resideo App (available for iOS and Android).
• Can expand water detection to other areas of your home with multiple Resideo L1 Leak and Freeze Detectors (sold separately).

Resideo Smart Home Water Management

Keeping your property safe from costly water damage is what Resideo"s line of Wi-Fi water leak detectors and water management systems are designed to do. Water leaks and frozen pipes can cause significant damage, especially if you"re away from home. With Resideos wireless Wi-Fi Actuators and Leak detector sensors, you"ll be immediately notified when there"s a leak via the Resido App for iOS and Android devices; and you"ll have peace of mind knowing that Resideo"s wireless actuators are designed with remote water shut off capabilities to immediately shut off the main flow of water to your property, keeping your valuables safe from damage caused by flooding.

Product Features

• Auto Shutoff Through Water Leak and Freeze Sensor
• Control the L5 Wi-Fi Water Leak Shutoff Valve Remotely Via the App
• Manual Override to Turn On or Off Water
• Easy Install

Includes

• L5 Actuator
• Lead-free Ball Valve
• Power Supply Adapter
• Actuator to Ball Valve Metal Clip
• Water Leak Detector Cable
• Separate Water Leak Detector and Cable

Technical Details

• Manufacturer Part #:
• VWS02Y-1/2: 1/2" NPT Ball Valve
• VWS02Y-3/4: 3/4" NPT Ball Valve
• VWS02Y-1: 1" NPT Ball Valve
• VWS02Y-11/4: 1-1/4" in NPT Ball Valve
• UPC:
• VWS02Y-1/2: 1941590079016
• VWS02Y-3/4: 194159007918
• VWS02Y-1: 194159007925
• VWS02Y-11/4: 194159007932
• Application: Water Leak Detection, Water Shut off Valve
• Available Pipe Sizes:
• 1-inch
• DN Size: DN25
• Dimensions: 2.67(W) x 5.98(H) x 5(L) inches (68 x 152 x 127mm)
• 1/2-inch
• DN Size: DN15
• Dimensions: 2.67(W) x 5.16(H) x 4.61(L) inches (68 x 131 x 117mm)
• 1-1/4-inch
• DN Size: DN32
• Dimensions: 2.67(W) x 6.5(H) x 5.28(L) inches (68 x 165 x 134mm)
• 3/4-inch
• DN Size: DN20
• Dimensions: 2.67(W) x 5.67(H) x 4.69(L) inches (68 x 144 x 119mm)
• Rated Torque: 44.25 in-lbs, 5 Nm
• Breakaway Torque: 57.53 in-lbs, 6.5 Nm
• Wireless Connectivity: Wi-Fi frequency band of 2.4GHz, 802.11 b/g/n, Bluetooth 4.1
• Connection Type: NPT
• Valve Type: Ball Valve
• Lead Free: Yes
• Protection Class: IPX4, Indoor, UL Type 2
• Color: White, Brass
• Mounting Location: Install the L5 Water Valve on the main water line after the main water shutoff valve and the pressure reducing valve (if applicable)
• Mounting Option: Valve can be installed in any orientation
• Actuator Connection: Ball Valve Flange size F03
• Media Temperature: 36 to 149°F (2 to 65°C)
• Ambient Operating Temperature: 32 to 113°F (0 to 45°C)
• Compatible App: First Alert App, Resideo App
• Manual Override: Yes
• Mounting Accessories: Metal Clip
• Additional Dimensions Details: 10 ft cord on Power Supply Adapter
• Approvals and Standards: CE EMC 2014/30/EU, CE RED 2014/53/EU, EN 60730-1, EN 60730-2-14, UKCA, CAN/CSA C22.2, UL 60730-1, UL 60730-2-14, WEEE 2012/19/EU, ES 116, RoHS 2011/65/EU, ES 50040083, REACH 1907/2006, Proposition 65, FCC part 15, subpart C, RSS-247
• Warranty: 2 Years

»Resideo L Series: Water Control Products Spec Sheet (.pdf)
»Resideo Braukmann L1 Wi-Fi Water Leak and Freeze Detector Spec Sheet (.pdf)
»Resideo Braukmann L5 Wi-Fi Water Leak Shutoff Valve Installation Manual (.pdf)
