PCS PulseWorx UPB Receiving Module

SKU: PCRM010V

Order now and we'll ship same business day (if ordered before 3 pm PST).

$25.95

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Details

Receiver for Relay Dimming Switches

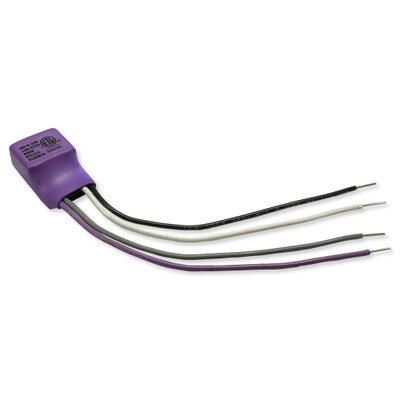

Add multi-level relay dimming control to LED lighting fixtures with the PCS Receiving Module, 0-10V. This small module is designed to be installed in LED lighting fixtures with Relay Dimming compatible drivers. The Receiving Module requires no programming and no new wires to set up, and can be installed in any 0-10V lighting fixture.

The Receiving Module allows for connected Relay Dimmer switches to change light levels with simple preset commands. If a load-bearing switch powers more than one LED fixture, each connected fixture requires its own Receiving Module in order to be controlled.

  • Works with all popular 0-10V LED drivers
  • Supports 1 to 10 possible dimming levels
  • Installs between load-bearing switches and any lighting fixture
  • Utilizes patented "Relay" communication, no PLC , no RF wireless, no Wi-Fi

NOTE: Neutral wire required. Required for use with the PCWS120Vx & PCWS227Vx.

Introducing Relay Dimming

PCS has developed the fastest, most reliable hardwired LED dimming transmission method that effectively eliminates signal interference caused by electrical noise and power interruptions. Relay Dimming is very simple and accomplishes one simple function – dimming LED fixtures without having to run two 0-10V wires from the wall switch or occupancy sensor. Relay Dimming does this by removing the need for a transmitter circuit. It only uses the relay that controls the power to the LED fixture's circuit.

What Relay Dimming does is, in effect, for a very brief period, turns the power off and then back on to eliminate noise and signal interference. Noise and signal attenuation are no longer factors in Relay Dimming.

PCS Lights the Way for Innovation

PCS develops and manufactures reliable, high-quality lighting control products for the residential and industrial/commercial markets. PCS products are designed to use standard power lines to communicate control signals without additional wiring, providing customers an affordable, flexible lighting control system.

Specifications

Add multi-level relay dimming control to LED lighting fixtures with the PCS Receiving Module, 0-10V. This small module is designed to be installed in LED lighting fixtures with Relay Dimming compatible drivers. The Receiving Module requires no programming and no new wires to set up and can be installed in any 0-10V lighting fixture. The Receiving Module allows for connected Relay Dimmer switches to change light levels with simple preset commands. If a load-bearing switch powers more than one LED fixture, each connected fixture requires its own Receiving Module in order to be controlled. NOTE: Neutral wire required. Required for use with the PCWS120Vx & PCWS227Vx. Indoor Use Only. Dimensions: 1.0 (H) X 0.7 (W) X 0.5 (D) inches. Manufacturer Part #: RM-0-10V.
