Napco iBridge Wi-Fi Touchscreen

7-Inch Color Touchscreen Wirelessly Connects To The Gemini Security System

The Napco iBridge WiFi Touchscreen will give you complete control of your home security system all while adding Z-Wave automation control to your property. This touchscreen control panel wirelessly connects to the Napco Gemini security system and serves as the intuitive and powerful hub for all of your security and Z-Wave automation devices (requires StarLink Connect Universal Communicator or IBR-ZRemote, both sold separately). It features easy-to-read icons for Arm/Disarm/Stay/Away (one-button control) and can mirror top brand keypads in conventional keypad mode, supporting Napco, ADT/Honeywell, and DSC brands. Its thin, slim profile design makes it ideal for mounting on a wall, allowing it to easily blend with your home's decor.

• Home security and automation touchscreen provides seamless access to all the features of your Gemini security system
• Wirelessly connects to the Napco Gemini security system
• 7-inch full-screen TFT high-resolution capacitive color display (1024 x 600)
• High-speed, quad-core processor (up to 1.6GHz)
• Onscreen notification viewing of SMS text or MMS multimedia notifications
• Compatible with the following control panels: GEMP816, GEM-P1632, GEM-P1664, GEM-P3200, GEM-P9600, and GEM-X255.

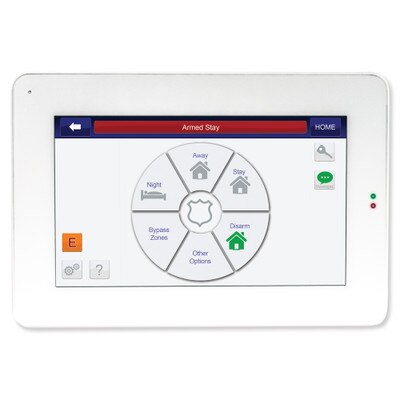

The Napco iBridge Touchscreen features a 7-inch full-screen TFT high-resolution capacitive color display (1024 x 600) with a high-speed, ultra-responsive, quad-core processor. It supports multiview video with up to 6 camera viewing capabilities and features Entry/Exit countdown displayed, 3 emergency buttons, and the ability to quickly bypass zones. This touchscreen supports Z-Wave devices when it's integrated with the StarLink Connect Dual Path Communicator or IBR-ZRemote (both sold separately), and increases range performance up to 100%. You'll be able to create and control custom scenes for a smart home or business, combining security, video, and automation-controlled devices by touch, a schedule, or a triggered event.

Smart Security At Home & On Your Smartphone Or Tablet

iBridge Connected Home System (iBridge app)

The iBridge App is a "smart" user-friendly, interactive app designed for your Napco security system. Its interactive touch screens will not only display the status of your system but will also give you step-by-step instructions to guide you through all operations. Once the system is set up, all connected devices (cameras, video doorbells, alarms, locks, etc.) can be controlled via the Gemini keypad or free iBridge app, which is available for iPhones, iPads, Androids, and iBridge Touchscreen Tablets.

Installation Details

The control panel mounts to a wall using the included mounting hardware and touchscreen rear case. The IBR-TOUCH-WL touchscreen requires power supplied from the included 12VDC adapter (wire is intended to be hidden within the mounting surface). The center hole of the touchscreen rear case will allow you to route the power wire of the 12VDC adapter. Upon power-up, the Setup Wizard will automatically start. Follow the sequence of images to complete the installation.

Contents

• iBridge Wi-Fi Touchscreen
• Rear Mounting Case
• Mounting Hardware
• Manual

Notes

• Requires integration with the StarLink Connect Dual Path Communicator or IBR-ZRemote (both sold separately) for controlling Z-Wave devices.
• Compatible with the following control panels: GEMP816, GEM-P1632, GEM-P1664, GEM-P3200, GEM-P9600, and GEM-X255.
• DSC and Honeywell keypad skins are supported for use with the IBR-TOUCH and IBR-TOUCH-WL tablets only when used with a StarLink Connect communicator and when the "Wi-Fi Only Mode" selection is enabled in the tablet's administrator settings.

Security By Napco

The Napco Security Group is a leading diversified manufacturer of security products, encompassing burglar and fire alarms, access control systems, video and electronic digital and proximity locks, as well as panic exit hardware. Sold and installed by tens-of-thousands of security professionals, from security dealers to locksmiths to systems integrators, millions of homes, businesses, institutions, and people around the globe are protected by products from the Napco Group of Companies.

• Manufacturer Part #: IBR-TOUCH-WL
• LCD Size: 7-inch digital screen
• Screen On Idle: 300mA
• Clicking Menu Items: 380mA
• Speaker: 1 Integral 2W
• Wi-Fi: 802.11b/g/n with integral antenna
• CPU: Quad-core processor, (up to 1.6GHz)
• Resolution Ratio: 1024 x 600 x, 16:9 aspect ratio, 16.7 million colors
• Pixels: 1024 x RGB (3) x 600
• Touchscreen: Digital and full-screen, capacitive
• Power: 12VDC adapter (included)
• Operating Temperature: 32-120°F (0-49°C)
• Dimensions: 5.38(W) x 7.87(H) x 0.88(D) inches (13.7 x 20 x 2.2 cm)
