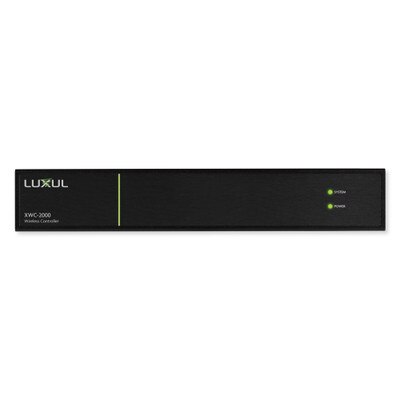

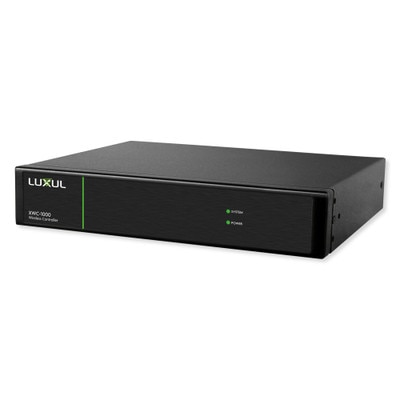

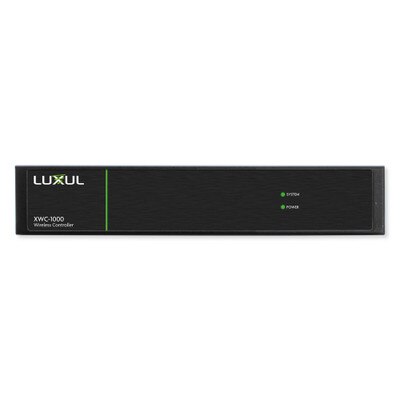

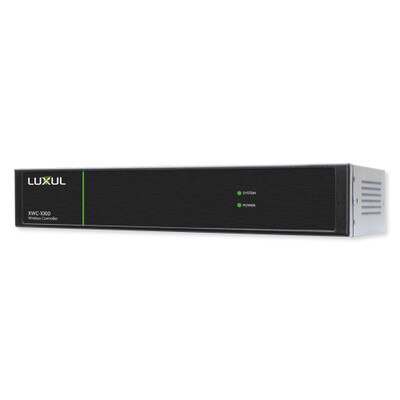

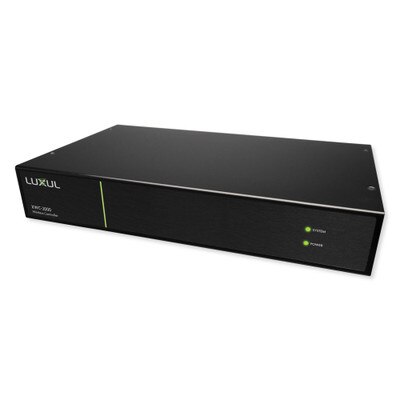

Luxul Wireless Controller

SKU: LXXWC2000

Please Select Option To View Availability

$Dealer

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Details

DEALER ONLY ITEM: Not Available Directly to End Users.

Dealers, log on to see pricing. »Sign up to become an authorized installer.

Gain Seamless Roaming for Mobile Devices In Large Areas

The Luxul Wireless Controller uses Roam Assist Technology to provide stable, secure, and usable Wi-Fi coverage in large areas that use more than one Access Point. This wireless controller provides an easy way to set up and manage a multi-access point wireless network to provide seamless roaming of mobile devices. Installation is easy since this wireless controller only has two connections: one for power and another for a single Gigabit Ethernet port.

  • Provides seamless roaming of mobile devices within wireless networks using more than one wireless access point
  • Create a secure guest network with broad coverage
  • Central control and configuration of Luxul access points
  • 1U metal enclosure for rack mount or desktop use
  • Enables VPN remote access to the network
  • Easy-to-use setup wizard for AP configuration

The XWC-1000 supports up to 16 Luxul access points (APs) while the XWC-2000 supports up to 32. The Luxul Wireless Controller is compatible with a wide range of APs, allowing integrators to mix and match access points to optimize and enhance network performance.

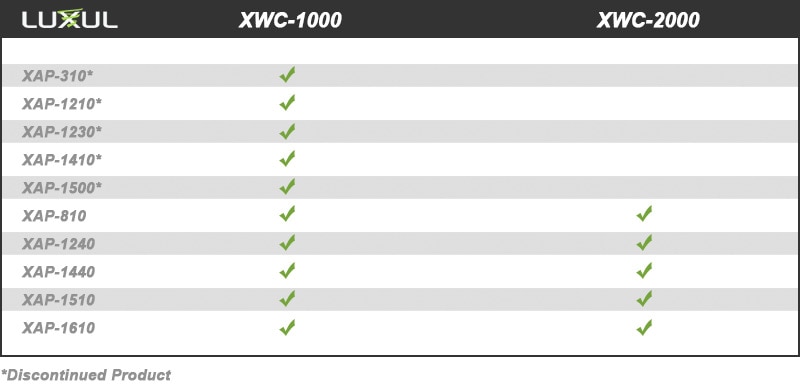

Luxus Wireless Controller Compatibility Chart

Luxul ProWatch Provides Off-Site Monitoring

ProWatch is a free cloud management solution that provides app-based remote monitoring and management of your network devices from anywhere with an Internet connection. ProWatch consists of three classifications: ProWatch Enabled, ProWatch Integrated, and ProWatch+.

  • ProWatch Enabled products are designed with ProWatch compatibility to provide remote access and monitoring of the device, deliver alert notifications and firmware updates, and allow for remote rebooting of the device.
  • ProWatch Integrated products are devices that have been added into a ProWatch connected network and are capable of reporting information to the network.
  • ProWatch+ products allow non-ProWatch enabled devices to be controlled remotely and report information as if they were native ProWatch Enabled devices.

As a ProWatch Enabled device, this device can be remotely monitored and controlled via the ProWatch software, receive OTA firmware updates, deliver notifications, and remotely restarted.

Contents

  • Wireless Controller
  • Rack Mount Kit
  • Rubber Feet
  • Power Cord
  • Quick Install Guide

Simply Connected Network Design

Luxul is a leading innovator of custom IP networking solutions and installations. Luxul provides a complete line of network devices and accessories for residential and commercial applications that serve to streamline network design and functionality. With Luxul, installers can deliver scalable IP networks that are easier to install and configure compared to traditional networking systems.

Specifications

Requirements

  • Suitable network devices
  • Ethernet Cable
  • Internet Connection to View Documentation Online

Technical Details

  • Manufacturer Part #:
    • XWC-1000 (16 Access Points)
    • XWC-2000 (32 Access Points)
  • UPC:
    • XWC-1000 (16 Access Points): 729440674694
    • XWC-2000 (32 Access Points): 655003921083
  • Controller:
    • Simple Setup Wizard
    • Management via Web Interface
    • Cloud-based Firmware Updates
  • Access Point:
    • AP Provisioning
    • Supports up to 16 APs (XWC-1000)
    • Supports up to 32 APs (XWC-2000)
    • Secure Guest Networks via VLAN
    • 802.1Q VLANs
    • WPA, WPA2 Security with TKIP, AES Encryption

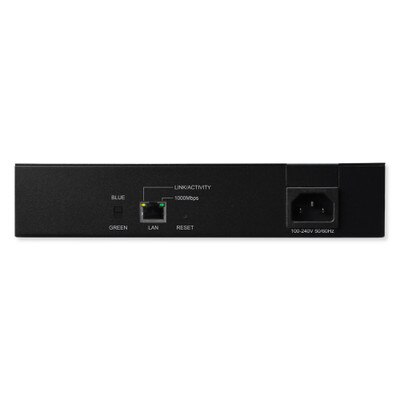

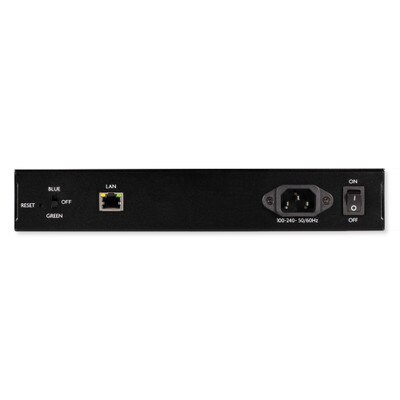

  • Interface: One 10/100/1000M Port
  • Button: Reset button
  • AV Series: LEDs on the front, Port on the back
  • Power: Internal Switched Power AC100-240V, 50/62Hz 0.3A
  • Max Power Consumption:
    • 8.6W (XWC-1000)
    • 5.8W (XWC-2000)
  • Dimensions:
    • XWC-1000: 11.6 x 7 x 1.75 inches (294 x 178.8 x 44.5mm)
    • XWC-2000: 5.41 x 10.31 x 1.73 inches (137.5 x 262 x 44mm)
  • LEDs: Power, System, Ethernet Activity
  • XWC-1000 Compatible Access Points:
    • XAP-1510 AC1900 Dual-Band Wireless AP
    • XAP-1500 Dual-Band Wireless 900N Low Profile AP
    • XAP-1410 AC1200 Dual-Band Wireless AP
    • XAP-1240 Wireless 300N Outdoor AP
    • XAP-1230 Wireless 300N Commercial Grade AP
    • XAP-1210 Wireless 300N Low Profile APwser
    • Secure remote access via VPN
  • XWC-2000 Compatible Access Points:
    • XAP-1610 Apex Wave 2 AC3100 Dual-Band AP
    • XAP-1510 Apex AC1900 Dual-Band Wireless AP
    • XAP-1440 Apex AC1200 Dual-Band Wireless Outdoor AP
    • XAP-810 Apex AC1200 Dual-Band Wireless AP
    • XAP-1240 Apex Wireless 300N Outdoor AP
  • Certification: FCC, IC, CE, RCM, CE-LVD, CE-ErP
  • Warranty: 3-Year Limited

Downloads

»Luxul XWC-1000 Wireless Controller Spec Sheet (.pdf)
»Luxul XWC-2000 Wireless Controller Spec Sheet (.pdf)
»Luxul XWC-1000 Wireless Controller Installation Manual (.pdf)
»Luxul XWC-2000 Wireless Controller Installation Manual (.pdf)
