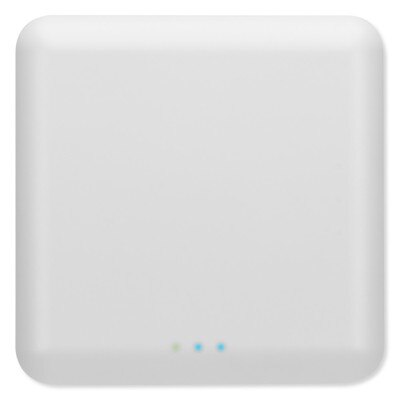

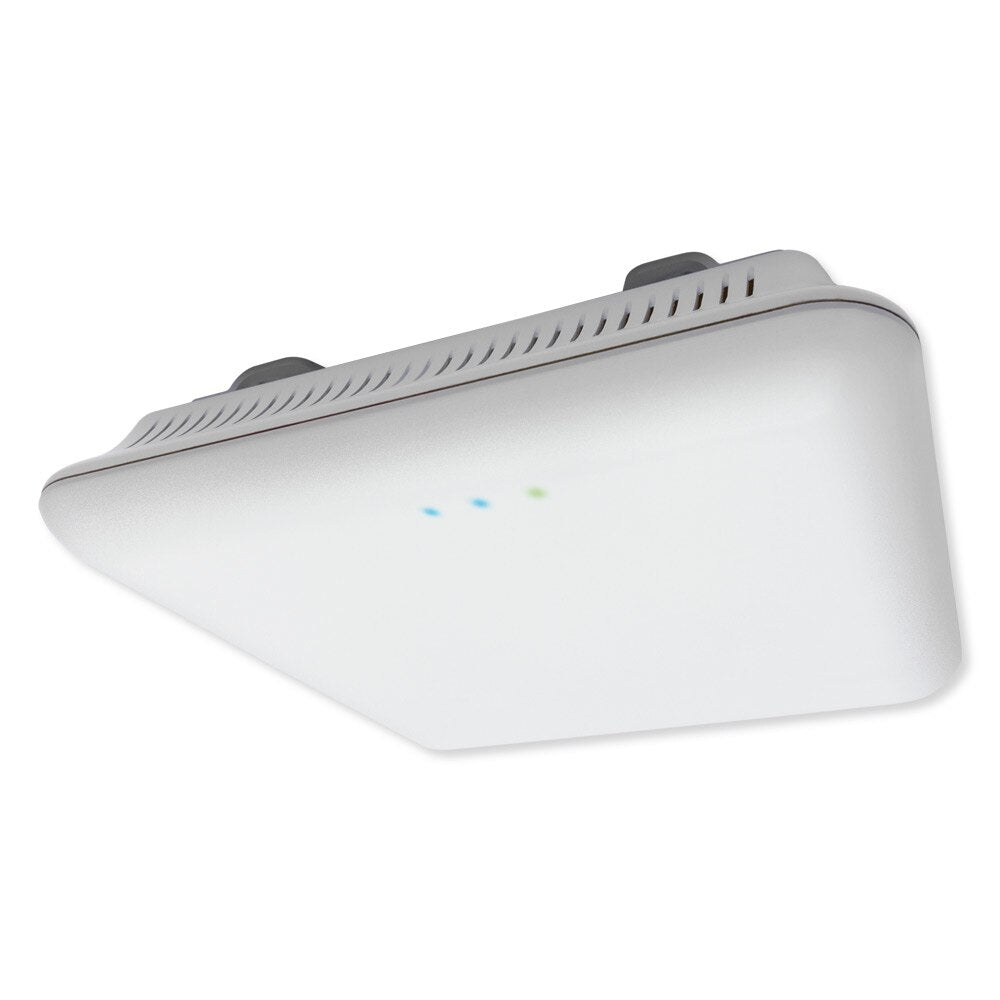

Luxul AC1200 High Power Dual-Band Wireless Access Point

Deliver Dual-Band High Speed WiFi Outdoors

Deliver high speed Wi-Fi coverage throughout your home or business with the Luxul High Power Dual-Band Outdoor Access Point. This wireless access point delivers superior WiFi coverage across 2.4GHz and 5Ghz frequencies to residential or business zones with speeds up to 866 Mbps. The Access Point can be set up as the single wireless gateway to your local network or as one of multiple access points within a single network. Installation is fast and easy thanks to its PoE injector port and its universal mounting design that allows it to be placed on most flat surfaces.

• Stream data up to 300 Mbps at 2.4GHz and 866 Mbps at 5GHz
• Supports high-bandwidth tasks including HD streaming, video surveillance, or gaming applications
• VLAN supports creation of a secure guest network
• Compatible with Roam Assist-capable Luxul wireless controllers
• PoE connection simplifies installation

Luxul ProWatch Provides Off-Site Monitoring

ProWatch is a free cloud management solution that provides app-based remote monitoring and management of your network devices from anywhere with an Internet connection. ProWatch consists of three classifications: ProWatch Enabled, ProWatch Integrated, and ProWatch+.

• ProWatch Enabled products are designed with ProWatch compatibility to provide remote access and monitoring of the device, deliver alert notifications and firmware updates, and allow for remote rebooting of the device.
• ProWatch Integrated products are devices that have been added into a ProWatch connected network and are capable of reporting information to the network.
• ProWatch+ products allow non-ProWatch enabled devices to be controlled remotely and report information as if they were native ProWatch Enabled devices.

As a ProWatch Enabled device, this device can be remotely monitored and controlled via the ProWatch software, receive OTA firmware updates, deliver notifications, and remotely restarted.

Contents

• High Power Dual-Band AP
• Mounting Kit
• Rubber Feet
• PoE Injector and Power Adapter
• Quick Install Guide

Notes

• Requires a connection to a Luxul wireless controller in order to operate.
• The Wave 2 AC1200 Dual-Band Access Point does not support wireless bridging between multiple wireless networks.

Simply Connected Network Design

Luxul is a leading innovator of custom IP networking solutions and installations. Luxul provides a complete line of network devices and accessories for residential and commercial applications that serve to streamline network design and functionality. With Luxul, installers can deliver scalable IP networks that are easier to install and configure compared to traditional networking systems.

• Manufacturer Part #: XAP-810
• UPC: 655003920413
• Standards: IEEE, 802.11b/g/n, 802.11a/n/ac, 802.3at
• Interface: Two 10/100/1000M Ports
• Antenna: Two Dual-Band Antennas
• Button: Reset
• Power Supply: PoE (injector included)
• Power Consumption:
• Average Power Consumption: 12W
• Max Power Consumption: 17W
• Frequency: Concurrent 2.4GHz and 5GHz with Beamforming
• Wireless Speed:
• 2.4GHz: 300Mbps
• 5GHz: 866Mbps
• Wireless Security: WPA-PSK, WPA2-PSK, WPA/WPA2
• Operating Mode: Wireless AP
• Other Functions and Features:
• Remote Web Management
• System Logging
• Backup & Restore Configurations
• Firmware Upgradeable via Browser
• Operating Temperature: 32°F to 122°F (0°C to 50°C)
• Dimensions: 6.25 (L) x 6.25 (W) x 1.75 (H) inches (158.75 x 158.75 x 44.45mm)
• Certification: CE, FCC, RoHS, IC, RCM
• Warranty: 3-Year Limited

»Luxul XAP-810 High Power AC1200 Dual-Band Wireless AP Spec Sheet (.pdf)
»Luxul XAP-810 AC1200 Dual-Band Wireless Access Point Installation Manual (.pdf)
