JascoPro Series Z-Wave Plus In-Wall Smart Paddle Dimmer, 700 Series

Use Z-Wave To Control Indoor Lights Or Appliances

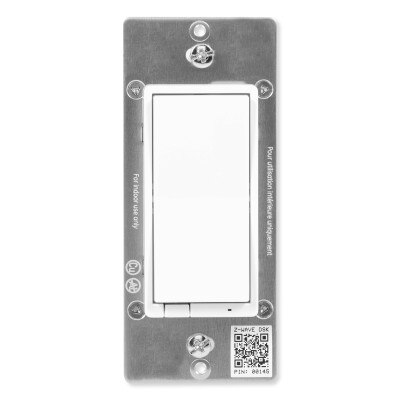

Add Z-Wave control to an indoor light or appliance with the JascoPro Series Z-Wave Plus In-Wall Smart Dimmer Paddle Switch, 700 Series. This smart dimmer paddle switch works with most dimmable LED, CFL, incandescent and halogen lights and uses Z-Wave technology to enable On/Off remote control and local control for a wired light or appliance. As a Z-Wave 700 device, it utilizes the latest Z-Wave features including a faster processor for quicker transmissions, larger memory for more complex automations, and greater energy efficiency when controlling devices and communicating with a Z-Wave hub. It can be installed in single or multi-way wired applications to work in tandem with up to 4 JascoPro series add-on switches in 3, 4, 5 or 6-way wiring configurations. This smart paddle switch can also be included in multiple automation groups or scenes and features a multicolor LED that works as an indicator light to inform you of its location in the dark.

• Z-Wave 700 dimmer switch works with most dimmable LED, CFL, incandescent and halogen lighting
• Supports loads up to 600W, 2-gang 500W or 3-gang 400W incandescent, 360W or 3A CFL/LED
• Range up to 150 ft (line of sight) between the closest Z-wave receiver and wireless controller
• Suitable for single-pole or multi-pole applications
• Can be included in multiple Z-Wave automated groups or networks through a Z-Wave compatible hub
• Z-Wave 700 Series Chipset includes S2 security and SmartStart provide easy inclusion into automation networks and secure operation
• Voice control with Amazon Alexa and Google Assistant through a compatible hub

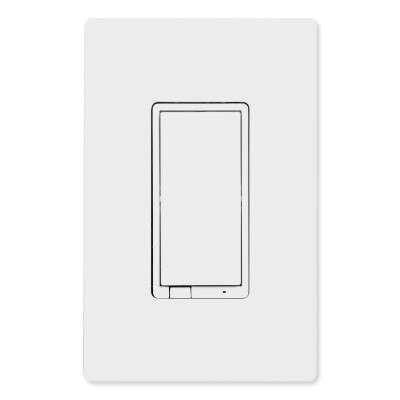

• Uses a standard decorative-size wallplate (sold separately)

This Z-Wave Plus Smart Paddle Dimmer Switch is also designed with QuickFit and SimpleWire features:

QuickFit: Provides a housing that's smaller by 20% with no break-off tabs to remove, which is ideal for older-style switch boxes, multi-gang configurations, or any other application with limited space.

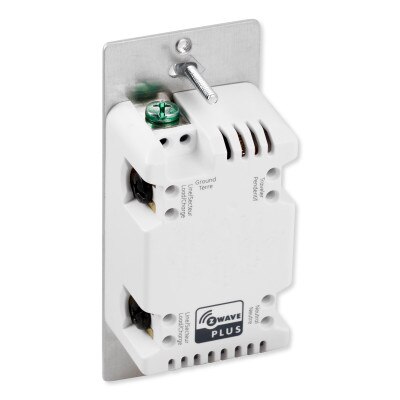

SimpleWire: Auto-detects line/load terminals, making installation easier and quicker by detecting line and load wires and configuring the dimmer accordingly. It also features an offset dual ground terminal to avoid switch box mounting screws.

Z-Wave 700 Series / Z-Wave Plus v2 Certification

Z-Wave Plus v2 is an upgraded Z-Wave certification program to help you identify products that take advantage of the latest Z-Wave hardware platform, also known as 700 Series or Gen7 Z-Wave. Z-Wave Plus v2 compatible devices include extended wireless range up to 2600 ft/800 m outdoors, three layers of encryption, faster operation, and longer battery life.

Installation Details

The Z-Wave Plus In-Wall Smart Paddle Dimmer works with most incandescent, LED, CFL, and halogen lighting. The switch supports single-pole or multi-pole applications, using up to four JascoPro Series model add-on switches in 3, 4, 5 or 6-way wiring configurations. The switch requires standard screw terminal installation with wiring connections for Line (Hot), Load, Neutral, and Ground. Multi-pole installation also requires a neutral wire.

Contents

• In-Wall Smart Dimmer Paddle Switch
• Manual

Notes

• Requires a Z-Wave network controller.
• Wallplate not included. Uses standard single-gang wallplate. For indoor use only.
• The fixture controlled by the switch must not exceed 960 watts (Incandescent); 1800W (15A) Resistive or 1/2 HP Motor.
• The switch is designed only for use with permanently installed fixtures.

Jasco: Leader And Innovator In Electronics

Established in 1975, Jasco Products is a leader in the design and development of home automation products and wireless accessories. Jasco develops consumer electronic accessories, computer accessories, home electrical products, and personal security and surveillance products. The company is also an active member of the Consumer Electronics Association (CEA).

• Manufacturer Part #: 59383
• UPC: 030878593830
• Z-Wave Module: 700 series
• Frequency: 908.4/916 MHz
• Power: 120 VAC, 60 Hz
• Load Ratings: 600W, 2-gang 500W or 3-gang 400W incandescent, 360W or 3A CFL/LED
• Range: Up to 150 feet from controller or closest Z-Wave device
• Environmental Conditions: For indoor use only
• Operating Temperature Range: 32 to 104°F (0 to 40°C)
• Approvals: FCC, IC
• Warranty: 5-Year limited

»Jasco 59383 JascoPro Series In-Wall Smart Paddle Dimmer Spec Sheet (.pdf)
