Details
Automate Common Devices Over A Network
Most home electronic devices – such as TVs, stereos, and security alarms – can't communicate over networks. Global Caché's cost effective and easy-to-use GC-100 network adapters are designed to solve this problem by creating a network to control the most commonly used devices, each easily managed and accessed via built-in software.
The GC-100 Network Adapter connects common electronic devices using a series of senors that can work, interrupt, or be polled by another network device. This mix-and-match design includes infrared (IR), serial and relay communications (including sensor inputs) that provide control of diverse systems such as entertainment, security, lighting, and irrigation.

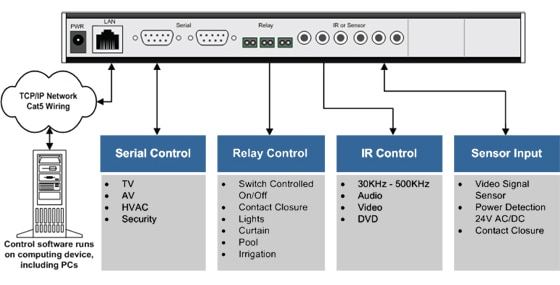

Control Options
- Serial Controlled Devices: TV, AV, HVAC, Security
- Relay Controlled Devices: Switch Controlled On/Off, Contact Closure, Lights, Curtain, Pool, Irrigation
- IR Controlled Devices: 30KHz - 500KHz, Audio, Video, DVD
- Sensor Input: Video Signal, Sensor, Power Presence, AC/DC, Contact Closure
Benefits
- Cost effective pricing saves you money
- Modular design saves time and money on installation
- Use one device rather than several from different vendors to save time and money on service
- Ability to provide open network-based system for more satisfied customers
- Lower cost and high reliability for more satisfied customers
- Less inventory required due to modular mix and match design
- One power supply avoids expense, clutter, and improves reliability
IMPORTANT NOTE: Global Caché products are not available to ship outside the U.S. Please contact Global Caché directly for international orders.
Network-Based Automation
As the number of homes and businesses with high-bandwidth Internet and networking capability has grown dramatically, so has the number of people who want to take advantage of their connected environments. Using network-based automation and control software, you can be safer, more energy efficient, and have more convenience and fun.
Specifications
Product Features
- Connects IR, Sony Control-S, RS232 serial, sensors, and relay contact closures to a network
- 10 Base-T network port
- Very small footprint
- Only one power supply required for each enclosure
- Embedded web server for easy configuration using a browser
Technical Details
- Power Input: 9 to 18V DC@300mA (wall power adapter included)
- Setup: Integrated web server allows for easy browser based configuration; Downloadable iLearn (free from Global Cache) software allows for the capture and storage of IR commands for control uses with the GC-IR Learner
- Warranty: 1 Year Limited
LED Indicators
- Power
- Network Activity
- Link Status
- IR Transmission
- Sensor Input Status
- GC-100 Visual ID
Network Interface
- Connector: RJ45
- Protocol: 10 Base-T Ethernet
- Standards: TCP, DHCP, HTTP
Serial Interface
- Connector: Male DB9
- Data Rates: 1200 baud to 57.6 Kbaud
- Parity: odd, even, none
- Flow control: bi-directional hardware RTS/CTS
- IR input: utilizing a GC-IRE and GC-RG1, IR commands are received via RS232 port
IR and Sensor Interface
- Selectable IR outputs or sensor inputs per port
- IR emitter supplied for each IR port
- GC-BL2 IR Blaster support
- Connector: 3.5mm stereo jack
- IR input: IR commands received via RS232 port utilizing GC-IRE and GC-RG1
Relay Interface
- 3 Integrated Contact Closure Relays with transient voltage suppression
- Screw terminal 24V AC/DC@.5A N.O. contact
- Allows for control and monitoring of in-line, low voltage wiring
- Possibilities include: pools/spas, garage doors, irrigation, etc ...
- Certifications: FCC (Part 15, Class B), C-tick, CE; RoHs compliant
- Power Input
- Network Connection
- Serial Ports
- Relay Connections
- Independent IR Outputs or Sensor Inputs
- Dimensions (L x D x H)

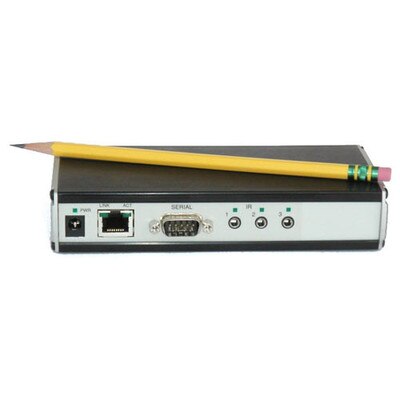

- GC-100-06
- Power Input: Yes
- Network Connection: Yes
- Serial Ports: 1
- Relay Connections: No
- Independent IR Outputs or Sensor Inputs: 3
- Dimensions (L x D x H): 6" x 3" x 1.3"

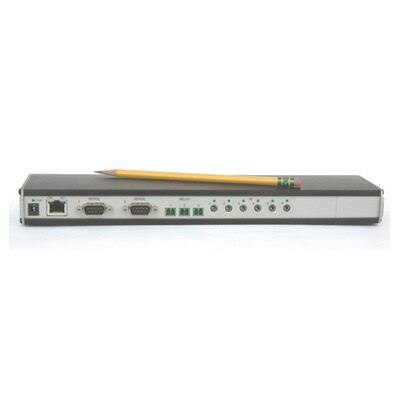

- GC-100-12
- Power Input: Yes
- Network Connection: Yes
- Serial Ports: 2
- Relay Connections: 3
- Independent IR Outputs or Sensor Inputs: 6
- Dimensions (L x D x H): 12" x 3" x 1.3"

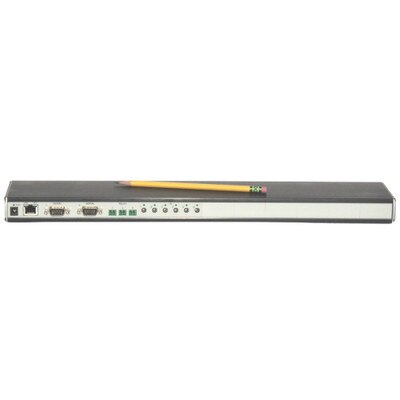

- GC-100-18
- Power Input: Yes
- Network Connection: Yes
- Serial Ports: 2
- Relay Connections: 3
- Independent IR Outputs or Sensor Inputs: 6
- Dimensions (L x D x H): 17.5" x 3" x 1.3"
