Ecolink Z-Wave Long Range Garage Door Controller

Long Range Garage Door Remote Access With Z-Wave 800 and Z-Wave LR Control

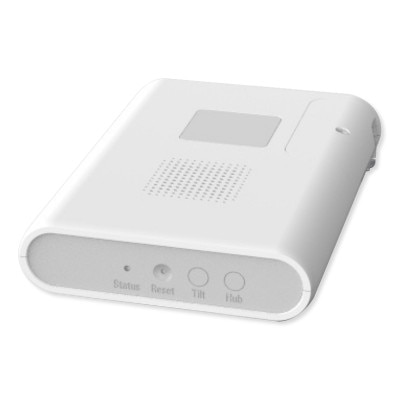

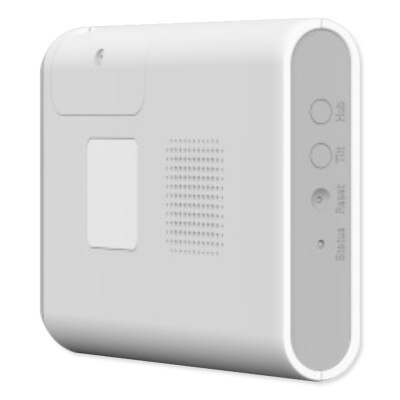

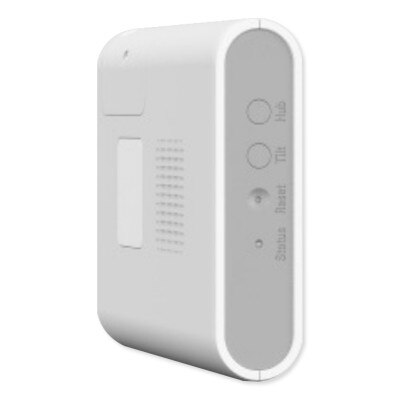

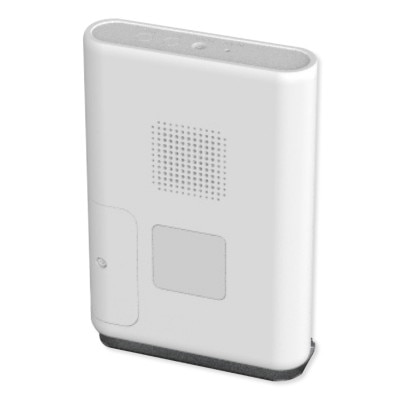

Add Z-Wave and Z-Wave Long Range connectivity and remote access to your garage door with the Ecolink Z-Wave Long Range Garage Controller. This Z-Wave gateway connects directly to a garage door operator to add remote Open/Close control and real-time device monitoring to your garage door. Once added into your Z-Wave network, the Ecolink Z-Wave Long Range Garage Controller enables your garage door to be included in automated routines to automatically Open/Close your garage when you arrive or leave home. An included tilt sensor sends real-time status, ambient temperature, and usage alerts of your garage door to your Z-Wave controller's mobile device, informing you when the garage door is used or simply reporting the door's current status when you check in on your mobile device.

The Ecolink Garage Controller is compatible with most legacy garage door openers and nearly any Z-Wave or Z-Wave Plus device and system hub. The Ecolink Z-Wave Long Range Garage Controller utilizes both Z-Wave 800 and Z-Wave LR wireless technology to provide reliable connectivity, increased encryption protection, and easier setup into Z-Wave networks. Users can choose which Z-Wave transmission option for the Ecolink Garage Controller that best suits their network: Z-Wave 800 for standard mesh connectivity that increase the signal strength and overall reach of their Z-Wave network, or Z-Wave LR for long range direct communication between the Garage Controller and a compatible Z-Wave LR hub up to 2200ft (670) away. If the Ecolink Garage Controller is using Z-Wave LR frequencies, it is unable to be used as a standard Z-Wave relay and must be connected with a Z-Wave LR compatible hub.

• Garage door controller adds Z-Wave functionality and remote access to a garage door, also reports ambient air temperature
• Compatible with Z-Wave 300, 500, 700 and 800 series devices, controllers, and hubs, as well as Z-Wave LR compatible hubs
• Comes with 345Mhz Clearsky® protocol tilt sensor
• Audible and flashing light warnings prior to open/close door operation
• Works with SmartThings, Ezlo, Qolsys, 2GIG, Prima by Napco, and Interlogix networks
• Supports both standard Z-Wave mesh protocol or Z-Wave LR star protocol to offer users the choice between close range or incredible long range connection
• Standard Z-Wave mesh range reaches up to 130 feet (40m) line of sight to the nearest Z-Wave receiver or hub
• Z-Wave LR protocol uses direct transmissions between the device and hub to reach up to 2200ft (670 m) line of sight at the cost of no signal repeating
• Z-Wave Smart Start technology pairs new devices quickly and S2 framework ensures enhanced security

Installation Details

The Ecolink Z-Wave Long Range Garage Controller can easily be mounted onto the existing L bracket and be connected directly to the garage door operator, which enables communication with the Z-Wave hub or security panel. Mount the included door sensor to the garage door, or if you prefer, you can use a hard-wired reed switch to monitor the state of the garage door. For controlling the garage door opener, you'll need to wirelessly pair the Z-Wave Garage Door Controller to the garage door opener or use a hard-wired connection to the garage door opener's button terminal. Pair the Z-Wave Garage Door Controller to your Z-Wave enabled hub or security panel; then test if it can open or close the garage door via the "test" mode and whether or not it can be controlled via your Z-Wave network.

Z-Wave Plus v3 Certification

Z-Wave Plus v3 is an upgraded Z-Wave certification program to help you identify products that take advantage of the latest Z-Wave hardware platform, also known as 800 Series or Gen8 Z-Wave. Z-Wave Plus v3 compatible devices include extended wireless relay range up to 130 feet (40m) to the nearest Z-Wave device, three layers of encryption, faster operation, and longer battery life.

Z-Wave LR Certification

Z-Wave LR extends Z-Wave connectivity beyond the boundaries of a single building with increased range and coverage and optimized battery life. Z-Wave LR devices operate on a star network topology which features a Z-Wave LR compatible gateway/hub at a central point and then establishes a direct connection to devices. ZWLR compatible devices can reach a max transmission range of up to 262 ft (80 m) indoors and 1 mile (1.6km) outdoors without using any other Z-Wave devices as a signal relay or node. Z-Wave networks can support both Z-Wave LR and traditional Z-Wave nodes can co-exist within the same network, enabling a wide variety and combination of Z-Wave devices and Z-Wave LR devices.

Contents

• Garage Door Controller
• Tilt Sensor
• AC/DC Power Adapter
• (2) Mounting Screws
• (4) sets of Screws, Washers, Wall Anchors
• (2) sets of Hex Bolts, Flat Washers, Split Lock Washers, Nuts
• (2) 2-Sided Adhesive Tape
• (2) Mounting Screws
• Quick Start Guide

Notes

• Requires a compatible Z-Wave hub or Z-Wave security controller or hub.
• If the Ecolink Garage Controller is using Z-Wave LR frequency, it is unable to be used as a standard Z-Wave relay and must be connected with a Z-Wave LR compatible hub.
• For indoor use only.

Ecolink

Every Ecolink product originates as an insight – an idea generated by something that people want or something they want to do better. At Ecolink, it's not about the things they make, it's about the things they make possible. Ecolink was born from a pedigree of great distinction within the electronics industry. With countless years of design/development experience and numerous innovative and game-changing products, the Ecolink team designs and manufactures products to the highest standards of performance and quality.

• Manufacturer Part #: GDZW7-LR
• UPC: 851166005640
• Z-Wave LR Transmission Distance: Up to 2200 Ft line of sight
• Z-Wave Operating Frequencies:
• 908.42MHz/916MHz
• Z-Wave Long Range (912MHz, 920MHz)
• Transmit Frequency: Z-Wave, 908.42/916MHz, 912/920MHz (Long Range)
• Receive frequency: Z-Wave, 908.42/916MHz, 912/920MHz (Long Range), 345MHz
• Certification: UL-325
• Specifications: Power: 120VAC, 50/60 Hz
• Garage Door Position Sensor Frequency: 345 MHz
• UL Certified Pre-Installed Bellwire to 2nd External Contact: 22AWG, 2 Conductor, Solid Copper Security Cable, White, L = 1.5m
• Dimensions: 5 L x 3.75 W X 1 D inches (127 L x 95.25 W x 25.4 D mm)
• Power: Line powered 120 VAC 60 Hz, 0.08A Maximum US
• Operating Temperature: 32° to 122°F (0° to 50°C)
• Other Features:
• Temperature Sensing
• External contact for installer to opt-in using magnetic contact instead of using tilt sensor for determination of the garage door's state
• Accelerometer
• Z-Wave S2 Encryption
• Regulatory and Certification:
• UL-325 Specification Design
• UL certified pre-installed bellwire to 2nd external contact:
• 22AWG, 2 Conductor, Solid Copper Security Cable, White, L = 1.5m
• Warranty: 12 Months

»Ecolink GDZW7-LR Z-Wave Long Range Garage Door Controller User Manual (.pdf)
