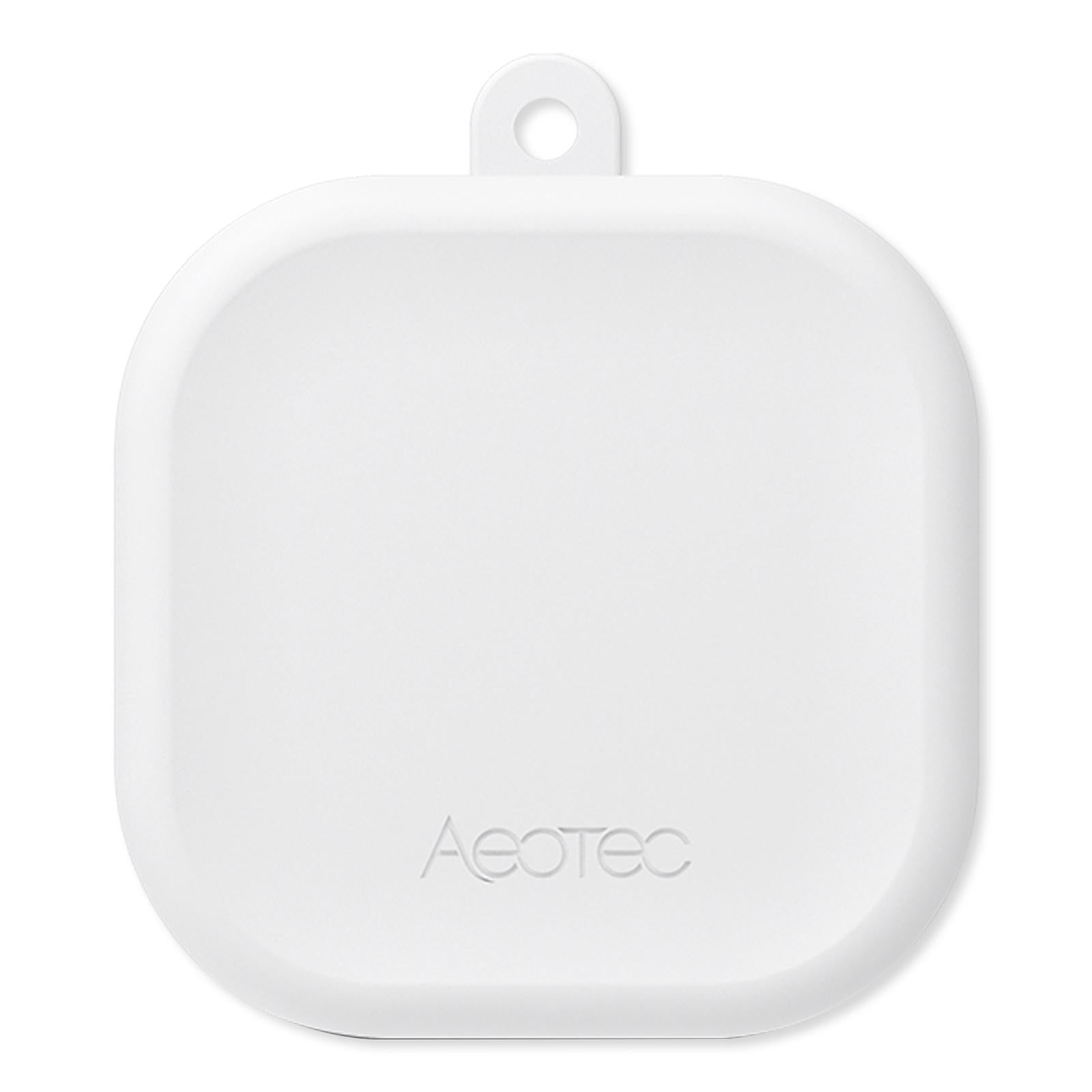

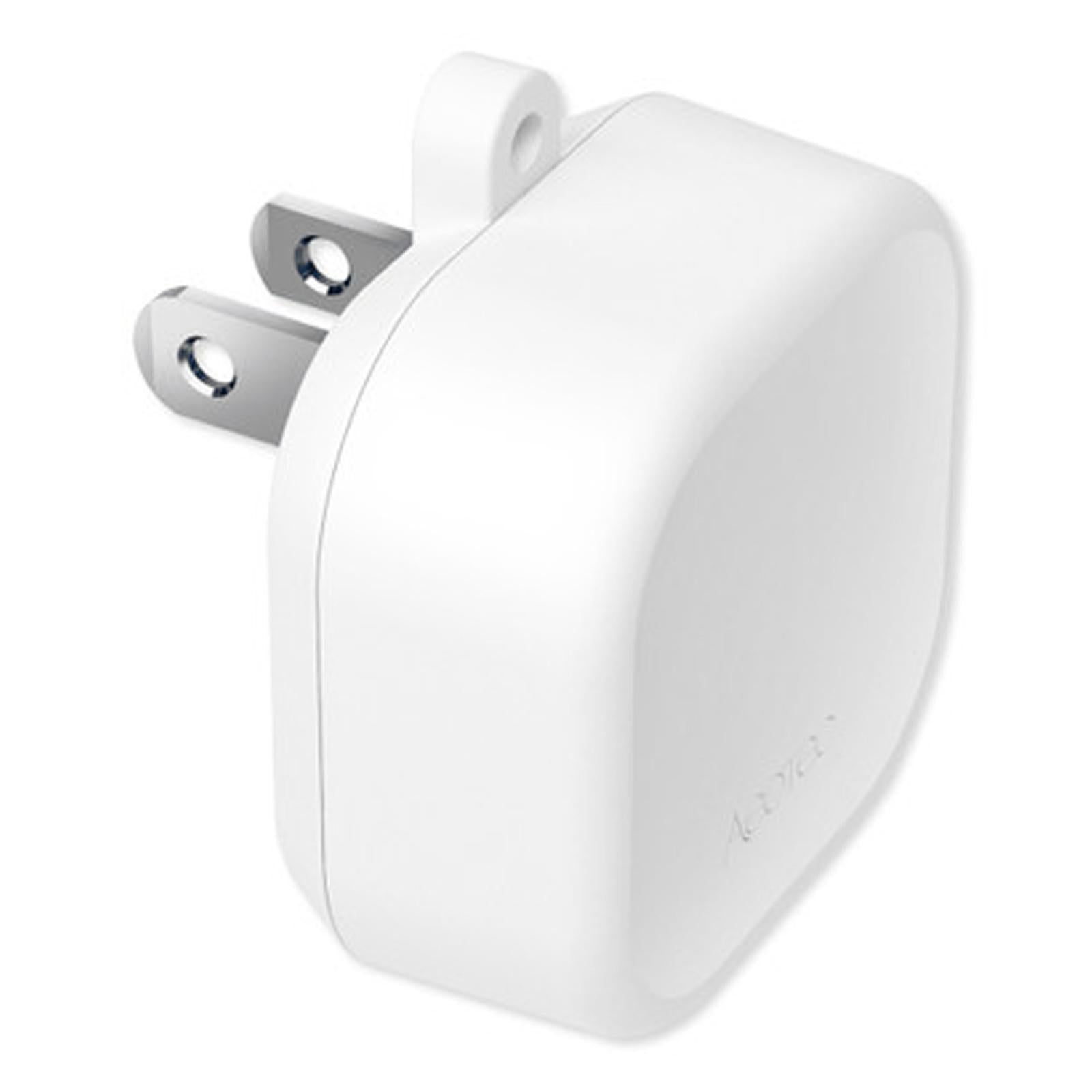

Aeotec Zigbee Range Extender Zi

SKU: AEZGA001A

Order now and we'll ship same business day (if ordered before 3 pm PST).

$31.95

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Details

Strengthen Your Zigbee Network

Amplify all Zigbee signals within your Zigbee network by plugging in the Aeotec Zigbee Range Extender Zi. This Zigbee 3.0 repeater improves the signal strength and operating range of Zigbee networks by adding an additional Zigbee node to pass along commands from transmitters to their intended receivers, increasing the range and signal strength of your Zigbee network. The repeater's small size prevents it from covering up neighboring outlets, so you can boost your network without blocking a second plug.

  • Boosts Zigbee signal strength throughout your network
  • LED light uses three patterns to indicates device status
  • Compatible with Aeotec Smart Home Hub/SmartThings, Home Assistant, Hubitat, and other Zigbee hubs
  • Plugs into a standard power outlet

The Aeotec Range Extender Zi's LEDs use 3 distinct light patterns to indicate the device's status.

  • Fade in and out: powered but not connected to any network.
  • Flashing Rapidly: attempting to connect to a Zigbee network.
  • Solid ON/OFF: connected to a Zigbee network.

Installation Details

The Aeotec Range Extender Zi plugs into a standard power outlet. Once plugged in, the Range Extender can be configured via your controller's PC web portal or associated app. The Range Extender's LED is defaulted to be always ON. By double-tapping the action button on the Extender, the LED can be turned OFF or ON.

Contents

  • Range Extender Zi
  • User Manual

NOTE: This item is a Zigbee frequency extender; it will not work to boost your Wi-Fi signal.

Harmonizing The Digital Home With Zigbee

Aeotec is a leading developer and manufacturer of wireless products which complement the "Digital Smart Home". Their products are designed to save energy, protect the home, and ultimately improve life. They focus on providing innovation, the highest caliber of quality, and unparalleled user experience without sacrifice.

Specifications

  • Manufacturer Part #: ZGA001-A
  • UPC: 810667025533
  • Zigbee Hardware: EFR32MG21A0120
  • Zigbee 3.0 Repeater: Yes
  • Max Signal Strength: 8.90 dBm
  • Working Band: 2.4GHz
  • Operating Distance:
    • More than 50 meters indoors / More than 164 feet indoors.
    • Up to 100 meters outdoors / Up to 328 feet outdoors.
  • AC Input: 120V 60Hz, Max: 68mA
  • Max Power Consumption: 0.8W
  • Plug Type: A Type
  • Operating Temperature: 32°F to 104°F/0°C to 40°C.
  • Relative Humidity: 8% to 80%.
  • Waterproof and Dust Rating: IP20 under IEC 62368-1
  • Product Dimensions: 2.09 x 1.81 x 1.57 inches (53.2 x 46 x 40 mm)
  • Package Dimensions: 2.99 x 2.67 x 2.28 inches (76 x 68 x 58 mm)
  • Product Weight: 38g
  • Total Package Weight: 66 g
  • Certifications: FCC, CE
  • Warranty: 1 Year
