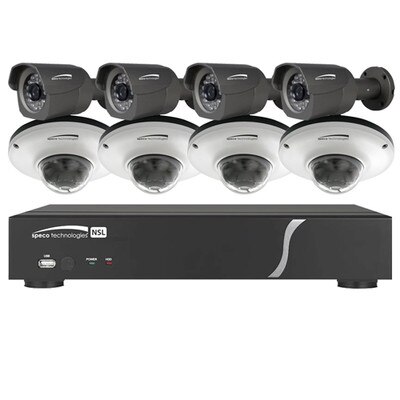

Speco Zip Kit: 8-Channel NVR with 4 Dome & 4 Bullet Cameras

Plug-and-Play Professional Surveillance System

Great for setting up comprehensive indoor/outdoor surveillance, the Speco Zip Kit (with 8-Channel NVR & 4 Dome & 4 Bullet Cameras) is a plug-and-play system that comes with eight weatherproof IP cameras, four dome-style and four bullet-style. All cameras auto-enroll into the included Network Video Recorder (NVR). Recorded footage is available through the Internet-connected NVR, providing remote access to the video from anywhere in the world!

• Full HD audio/video recording and playback
• Dome cameras have night vision up to 23 feet
• Bullet cameras have night vision up to 65 feet
• Supports 2-way audio communication
• NVR compatible with both PCs and Macs
• Free Speco DDNS server with NVR

About the Network Video Recorder

The full-featured 8-channel NVR makes it easy for installers to quickly setup a professional surveillance system. It features four "EZ" functions:

• EZ Set-Up Wizards: One-click wizard guides you through basic system programming for the date/time, preferred recording method, video quality, preferred network, and port forwarding.
• EZ Camera: Automatically discovers and installs connected IP cameras.
• EZ Search: Allows you to quickly search through recorded events via thumbnails.
• EZ Copy: Auto-copy the video you are playing onto a USB flash drive.

The NVR has built-in PoE and supports full HD (1920 x 1080) recording and playback to accommodate the included HD IP cameras. It offers dual network ports, allowing you to isolate the IP camera network and remote network traffic. Built-in S.M.A.R.T. technology also provides self-monitoring, analysis and reporting technology for the NVR's hard disk drive (HDD).

Compatible with both PCs and Macs, the NVR is network accessible via SpecoTech Multi-Client Software, SecureGuard CMS, and/or the Speco Player Mobile Viewer.

About the Cameras

Included with the 8-channel NVR are eight weatherproof, vandal-resistant IP cameras (4 dome-style, 4 bullet-style). The dome cameras have 3.7mm lenses with night vision up to 23 feet, while the bullet cameras have 3.6mm lenses with night vision up to 65 feet.

All cameras capture real-time video up to 30fps, support dual streaming and motion-activated recording, and have a built-in mic/speaker for two-way audio communication. A pre-recorded audio message can even be triggered to play automatically upon motion detection.

Kit Includes

• 8-Channel NVR (N8NSL2TB)
• 2TB HDD
• Remote Control
• Mouse for NVR
• Software & Manual CD
• (2) AAA Batteries, 1.5A
• Power Adapter, 48VDC
• Power Cable
• Quick Setup & User Guides
• (4) IP Dome Cameras (O2MD2W)
• Torx Wrench
• Screws & Anchors
• Template Sheet
• Manual CD
• Quick Manual
• (4) IP Bullet Cameras (O2VLB2)
• Mounting Screws
• L-Type Wrench
• CD with Software & User's Guide
• Quick Installation Guide

NOTE: Camera power supplies not included.

IMPORTANT NOTE: Speco Technologies products are not available to ship outside the U.S. Please contact Speco Technologies directly for international orders.

Speco Technologies

For over 45 years, SPECO Technologies has been dedicated to providing the highest quality residential and commercial sound, security, CCTV closed circuit video and electronic accessories. Contractors, installers, builders, engineers and architects rely on Speco products to satisfy both their commercial and residential needs.

Dome Cameras (O2MD2W)

• Image Sensor: Progressive scan 1/2.9" CMOS, 2.0MP
• Resolution: 1920x1080
• Minimum Illumination: F2.0, 0.2 lux (IR on – 0 lux)
• S/N Ratio: 50dB
• Day/Night: IR-cut filter
• Number of IR LEDs: 12
• IR Range: 30 feet (depending on scene reflection)
• White Balance: AWB
• Exposure Control: Yes
• Digital Slow Shutter: Yes
• WDR/BLC: WDR
• DNR: 2D/3D

Video

• Supported Resolutions: 1920x1080 @ 30fps / 1280x720 @ 30fps
• Compression: H.264 (Main / Baseline Profile), MJPEG
• Bitrate Control: VBR, CBR
• Multiple Streaming: 3 simultaneous profiles

External Terminal

• Ethernet: 10/100 Mbps
• Power: DC jack

Network

• Protocols: IPv4, TCP, UDP, RTCP, RTP, RTSP, HTTP, SMTP, FTP, DHCP, UPnP, NTP, DNS
• DDNS Support: Speco DDNS (free of charge)
• Security: User ID and Password protection, IP address filtering, HTTPS, digest authentication, user access log
• User Access: 8 simultaneous users at D1 resolution; Number of users may vary depending on resolution

System

• PoE: Standard (IEEE 802.3af)
• Analytics: Motion detection (3 regions)
• Events: FTP video file upload, email image upload
• Video Buffer: Configurable pre-record and post-record
• Image Settings: Text overlay, privacy mask

Client

• Web Browser Support: Windows (Internet Explorer 8 and up, Chrome, Firefox)
• Mobile Apps: Speco OnSIP (iPhone, iPad and Android)
• PC Application: Speco NVR, SecureGuard

Operation

• Power Supply: PoE, 12VDC (power supply not included)
• Power Consumption: 7W with IR
• Operating Temperature: -13° to 122° F
• Operating Humidity: 8 to 80 percent RH
• Weight: 14.4 ounces
• Dimensions: 4.8(Dia.) x 2.17(H) inches
• Certifications: FCC, RoHS
• Warranty: 2 Years

Bullet Cameras (ZIP2B)

• Image Sensor: Progressive scan 1/2.9" CMOS, 2.0MP
• Maximum Resolution: 1920x1080
• Minimum Illumination: F1.6, Color: 0.01 lux, BW: 0 lux
• S/N Ratio: 50dB
• IR LEDs: Yes
• IR Range: 65 feet (depending on scene reflection)
• White Balance: Auto, Manual
• Exposure Control: Yes
• Digital Slow Shutter: Yes
• Backlight: BLC/HLC
• Day/Night: IR-cut filter
• DNR: 2D

Video

• Main Resolution: 1920x1080 / 1280x720 @ 30fps
• Compression: H.264 (HP/BP), MJPEG
• Bitrate Control: VBR, CBR
• Multiple Streaming: 3 streams

External Terminal

• Ethernet: 10/100 Mbps
• Power: DC jack

Network

• Protocols: IPv4/IPv6, TCP, UDP, RTP, RTSP, HTTP, HTTPS, SMTP, FTP, DHCP, DNS, Bonjour
• DDNS Support: Speco DDNS (free of charge)
• Security: User ID and Password protection, IP address filtering, HTTPS, digest authentication, user access log
• User Access: 20 users max.; Number of users may vary depending on resolution

System

• PoE: Standard (IEEE 802.3af)
• Analytics: Motion detection (4 regions), Tamper protection
• Alarm Triggers: Analytics
• Alarm Events: Email, record, snapshot
• Video Buffer: Configurable pre-record and post-record
• Image Settings: Privacy mask

Client

• Web Browser Support: Windows (Internet Explorer 8 and up, Chrome, Firefox)

Operating / Physical

• Power Supply: PoE, 12VDC (power supply not included)
• Power Consumption: 6W
• Operating Temperature: -20°F to 140°F (-28°C to 60°C)
• Operating Humidity: Less than 95 percent RH
• Dimensions: 6.1(L) x 2.6(W) x 2.8(H) inches
• Weight: 1.37 pounds
• Certifications: FCC, RoHS
