Yale Pro 2 Keyed Touchscreen Keypad Lock with Bluetooth, No Smart Module

Let Yale Get the Door Through Hands-Free Operation

Upgrade your front door with a wirelessly connected smart lock with the Yale Pro 2 Keyed Touchscreen Keypad Lock with Bluetooth, No Smart Module. This Bluetooth compatible smart lock replaces your existing lock and deadbolt to provide 4 ways to access your door: entering a 4-8 digit passcode into the touchscreen keypad, using a standard turnkey, Auto Unlock & Auto Lock via proximity detection, or remotely accessing the lock through the Yale Access app when within Bluetooth range. You can check on the lock's real time status, receive notifications when the lock is used, and decide who can unlock your door and when through the Yale Access app. Additional features include Apple Homekit compatibility, voice control via Siri, and IPX5 Coastal Grade Rating and 90 Minute Fire Rating which ensure the lock can continue to operate during rainy weather or in fire related emergencies. Add a Yale Smart Module (sold separately) to include your Yale Pro 2 Lock into your Wi-Fi, Z-Wave Plus, or Matter compatible smart home or smart security network and enable voice control with either Amazon Alexa or Google Assistant.

• Bluetooth smart lock with touchscreen keypad offers multiple key-free and remote access options to unlock your front door
• 4 ways to unlock: 4-8 digit passcode, remote access through the Yale Access app, Auto-Unlock via proximity, and standard turnkey
• Included DoorSense Sensor reports lock and door status and enables Auto-Unlock/Auto-Lock when entering or leaving Bluetooth proximity
• IPX5 Coast Rating and Fire Rated for up to 90 minutes ensures reliable performance in inclement weather and fire emergencies
• Compatible with most left and right handed US and Canada doors
• Two-factor authentication and fingerprint resistant keypad ensure access to your door is kept within your control
• Share passcodes with guests, friends, and family and schedule when passcodes can be used through Yale Access app
• Add a Yale Smart Module (Wi-Fi, Z-Wave, or Matter) to include your Yale Pro 2 Lock into your smart home or smart security system
• Voice control compatible with Apple Siri (Amazon Alexa and Google Assistant available via Yale Smart Module integration)

Enjoy Hands-Free Access with Auto-Unlock and Auto-Lock

The Yale Pro 2 Lock offers hands-free operation through its smart Auto-Unlock and Auto-Lock features. When your mobile device, authorized through the Yale Access app, enters Bluetooth proximity range of the Yale Pro 2 Lock and the included DoorSense Sensor, the lock will automatically unlock for easy entry. Once inside and after closing the door, the lock can automatically lock itself once your mobile device leaves Bluetooth range or after a set period of time. This hands-free operation helps when bringing in groceries or large packages or groups of people, and ensures you don't forget to lock the door when coming or leaving.

Know Your Door's Status with DoorSense

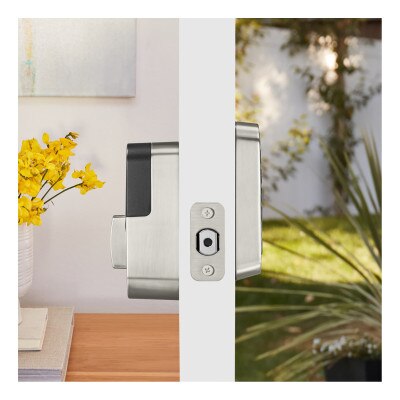

The Yale Pro 2 Lock includes a Yale DoorSense Sensor which tracks the precise location and status of your door. The small magnetic DoorSense Sensor mounts onto or within your door frame to report to the Yale Access app whether your door is open or closed and if the Yale Pro 2 Lock is engaged or unlocked. The DoorSense Sensor works with the Yale Access app on your mobile device to assist Auto-Lock and Auto-Unlock features by ensuring that the door is in the correct position before the lock re-engages or unlocks itself.

Physical Operation Ensures Backup Access

This keyed Yale lock includes a traditional keyturn lock to lock/unlock your door from the outside and a thumb turn latch for indoor operation. One physical key is included.

Unlock with Yale Access Mobile App

The Yale Access mobile app gives you total control over your compatible Yale lock. From your mobile device, the Yale Access app enables you to remotely lock/unlock your door, enable Auto-Lock and Auto-Unlock when you are near the lock, create and share passcodes with others, and keep track of the lock's activity through saved records and real-time alerts. The app utilizes your mobile device's Bluetooth and Wi-Fi transmitters to provide remote access features to your Yale lock, including integration into home automation systems and smart scenes, and enabling voice control compatibility with Alexa and Google Assistant (when enabled via a Yale Smart Module). Bluetooth only Yale Locks without a Yale Smart Module can only be controlled by the Yale Access app when your mobile device is within Bluetooth range.

Share Passcodes for Key Free Operation

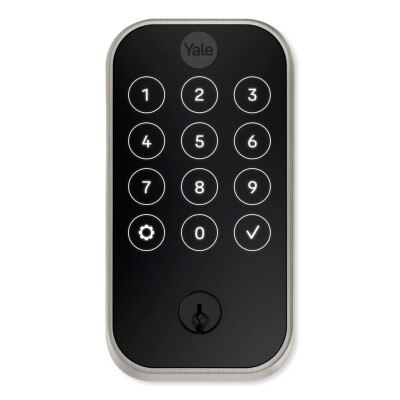

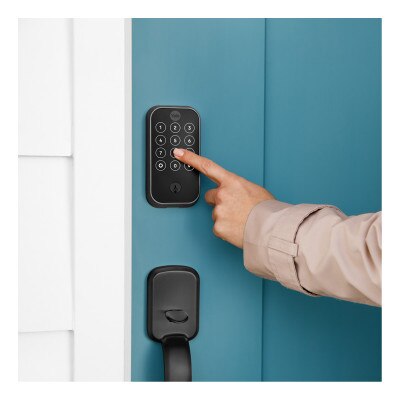

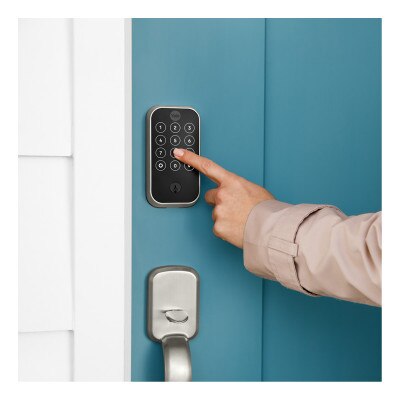

The Yale Pro 2 Lock includes a built-in touchscreen keypad to allow owners and guests to input 4-8 digit codes to unlock the door. Up to 500 codes can be created and shared with guests, family members, and renters. All codes are saved on the Yale Access app. Owners can schedule when codes are valid for greater access control over your building. Valid codes can be limited to certain days of the week or windows of time on a given day.

Installation Details

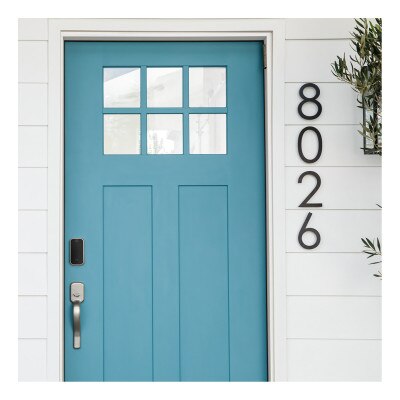

Designed for use with most standard entryway hinge and pivot doors in the US and Canada, the smart lock installs on doors measuring 1-3/8 to 2-1/4 inches thick. The lock is suitable for both left or right handed doors. All the necessary hardware is included, along with a template for door preparation and detailed instructions.

• Installs on a standard door 1-3/8 to 2-1/4" thick
• Adjustable latch fits existing backset of either 2-3/8" or 2-3/4"
• Suitable for right-handed or left-handed operation

The deadbolt is powered by four (4) AA batteries, which are included and should last for up to 6 to 9 months. In the event that the batteries die, the Lock can still be accessed with a turnkey and the interior thumbturn. A Yale Smart Network Module (sold separately) easily snaps in above the batteries. When the battery is low, or wrong codes are entered, or the lock is tampered with, an alert is triggered.

Contents

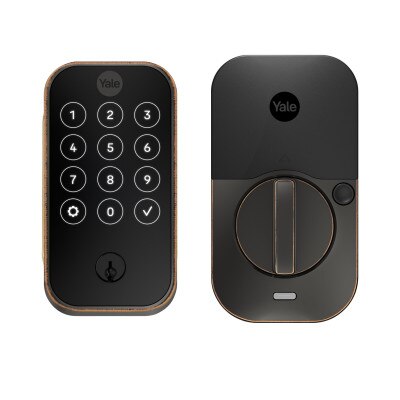

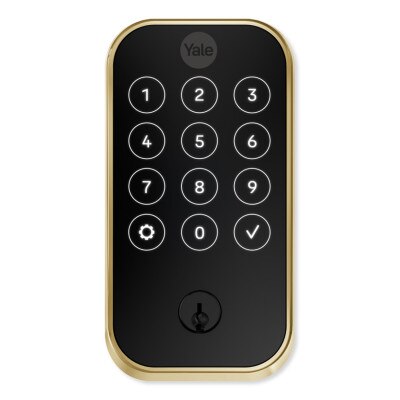

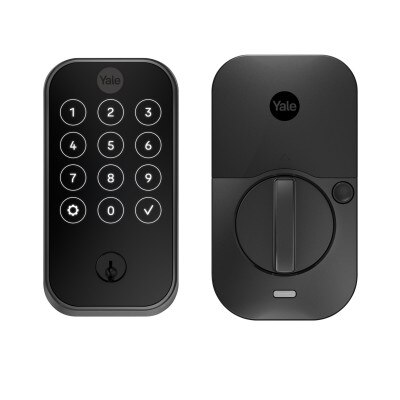

• Yale Pro 2 Exterior Touchscreen Keypad and Deadbolt, Keyed

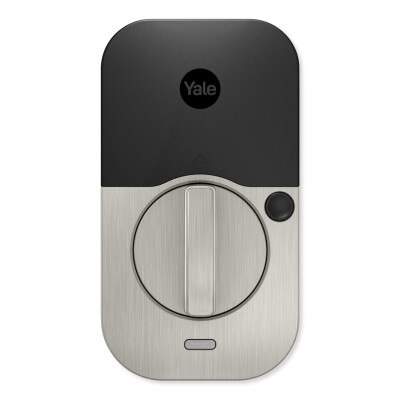

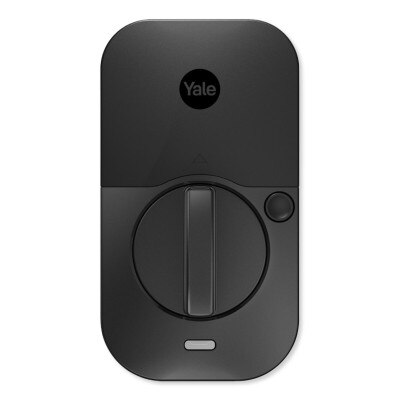

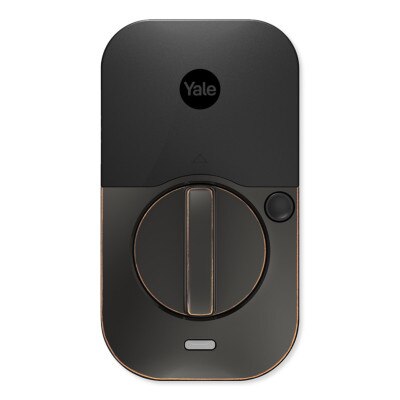

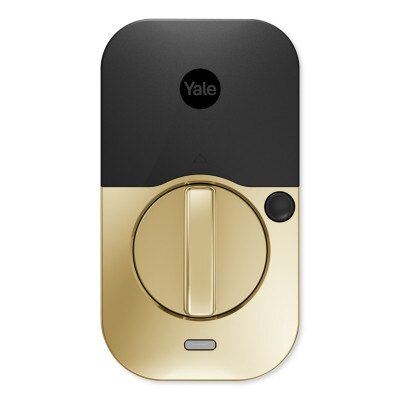

• Yale Pro 2 Interior Lock
• DoorSense Sensor
• Deadbolt and Strike Plate
• Mounting Hardware
• (4) AA Batteries
• Door Template
• Turnkey
• Installation Manual

Notes

• Requires Yale Smart Module (sold separately) and respective compatible automation or security hub for additional wireless capabilities.
• Remote access requires a smartphone or mobile device with the Yale Access app for iOS and Android.

Yale: Simpler & More Secure

Yale focuses on making home security simple, secure, and easily accessible for any consumer. They are committed to designing products and services that allow anyone to monitor and manage entry into the home from wherever they are, while keeping intruders out. They've created a thoughtful system of products and services that are easy to use, aesthetically stylish, and completely reliable. Yale products make life simpler and more secure.

• Manufacturer Part #:
• YRD624-BLE-BSP: Black Suede
• YRD624-BLE-P05: Lifetime Brass

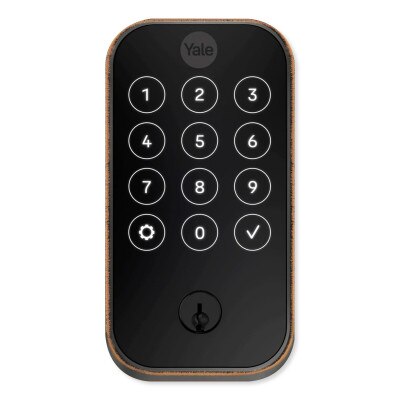

• YRD624-BLE-0BP: Oil-Rubbed Bronze
• YRD624-BLE-619: Satin Nickel
• UPC:
• YRD624-BLE-BSP: 081023126014
• YRD624-BLE-P05: 081023126038
• YRD624-BLE-0BP: 081023126021
• YRD624-BLE-619: 081023126021
• Wireless Protocol: Bluetooth – Wi-Fi, Z-Wave, Matter compatible via through Yale Smart Module
• Number of Entry Codes: 500
• Keypad Type: Touchscreen
• Face Bore: 2-1/8" or 1/12"
• Edge Bore: 1"
• Door Thickness: 1-3/8" to 2-1/4"
• Backset: 2-3/8" or 2-3/4"
• Strike Plate: 1" x 2 1/4" RC (Round Corner)
• Latch: 2 3/8" or 2 3/4" Adjustable Latch
• Faceplate: 1" x 2 1/4" RC (Round Corner)
• Keyway: KW-1 5 Pin
• Number of Keys: 1
• Handing: Self-handing
• Outside Temperature: -22 F to 140°F (-30 to 60°C)
• Inside Temperature: 5 F to 158°F (-15 to 70°C)
• Battery Temperature: -14 F to 131°F (-10 to 55°C)
• Storage Temperature: -40 F to 185°F (-40 to 85°C)
• Weight: 4.5 lbs
• Dimensions:
• Exterior: 0.8" L x 2.6" W x 4.9" H
• Interior: 1.7" L x 2.7" W x 4.9" H
• Ratings & Certifications:
• 90 Min Fire Rating
• Coastal Grade IPX5 Weather Rating
• ANSI/BHMA Grade 2
• Warranty: 1 Year for Electronics, Lifetime Limited for Finish/Mechanical
