Yale Pro 2 Key Free Touchscreen Keypad Lock with Wi-Fi


Please Select Option To View Availability


WARNING: Cancer and Reproductive Harm –


Let Yale Get the Door With Hands-Free Operation

Modernize your entryway door with a smart lock that provides multiple additional unlock methods plus the ability to monitor your lock's status with the Yale Pro 2 Key Free Touchscreen Keypad Lock with Wi-Fi. This Wi-Fi compatible smart lock replaces your existing lock and deadbolt to add style, security, and peace of mind to your entry door through 3 key-free access options: enter a 4-8 digit passcode into the touchscreen keypad, Auto Unlock & Auto Lock via proximity detection, or use a virtual key via remote access through the Yale Access app. You can check on the lock's real time status, receive notifications when the lock is used, and decide who can unlock your door and when through the Yale Access app. The Key Free Touchscreen Keypad Lock's design eliminates the threat of lockpicking from intruders and its backup battery support ensures the lock will remain operational during power outages or when the main batteries die. Additional features include two-factor user verification, optional voice control, integration with select popular home automation hubs, and new IPX5 Coastal Grade Rating and 90 Minute Fire Rating which ensure the lock can continue to operate during rainy weather or in fire related emergencies.

  • Wi-Fi smart lock with touchscreen keypad offers multiple key-free and remote access options to unlock your front door
  • 3 ways to unlock: 4-8 digit passcode, Auto-Unlock via proximity and remote access through the Yale Access app
  • Included DoorSense Sensor reports lock and door status and enables Auto-Unlock/Auto-Lock when entering or leaving Bluetooth proximity
  • Share passcodes with guests, friends, and family and schedule days and time periods when passcodes can be used
  • IPX5 Coast Rating and Fire Rated for up to 90 minutes ensures reliable performance in inclement weather and fire emergencies
  • Compatible with most left and right handed US and Canada doors
  • Two-factor authentication and fingerprint resistant keypad ensure access to your door is kept within your control
  • Voice Control Compatible with Amazon Alexa, Apple Siri, Google Home
  • Smart home integration with Apple HomeKit, SmartThings and select Wi-Fi compatible hubs

Enjoy Hands-Free Access with Auto-Unlock and Auto-Lock

The Yale Pro 2 Lock offers hands-free operation through its smart Auto-Unlock and Auto-Lock features. When your mobile device, authorized through the Yale Access app, enters Bluetooth proximity range of the Yale Pro 2 Lock and the included DoorSense Sensor, the lock will automatically unlock for easy entry. Once inside and after closing the door, the lock can automatically lock itself once your mobile device leaves Bluetooth range or after a set period of time. This hands-free operation helps when bringing in groceries or large packages or groups of people, and ensures you don't forget to lock the door when coming or leaving.

Know Your Door's Status with DoorSense

The Yale Pro 2 Lock includes a Yale DoorSense Sensor which tracks the precise location and status of your door. The small magnetic DoorSense Sensor mounts onto or within your door frame to report to the Yale Access app whether your door is open or closed and if the Yale Pro 2 Lock is engaged or unlocked. The DoorSense Sensor works with the Yale Access app on your mobile device to assist Auto-Lock and Auto-Unlock features by ensuring that the door is in the correct position before the lock re-engages or unlocks itself.

Unlock with Yale Access Mobile App

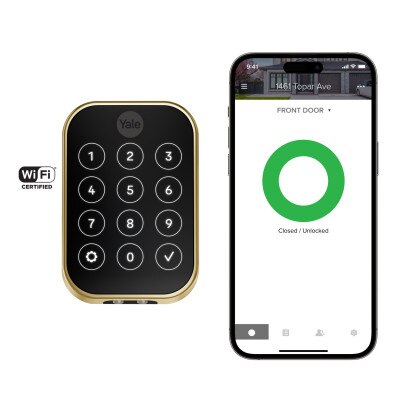

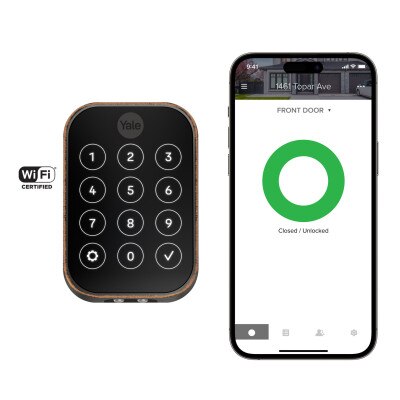

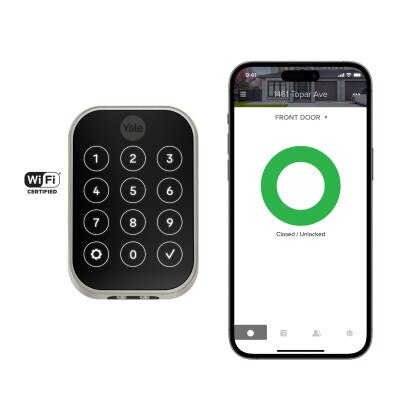

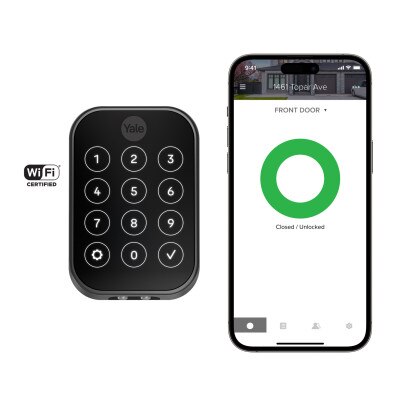

The Yale Access mobile app gives you total control over your Wi-Fi compatible Yale lock. From your mobile device, the Yale Access app enables you to remotely lock/unlock your door, share access with others, and keep track of the lock's activity through saved records and real-time alerts. The app utilizes your mobile device's Bluetooth and Wi-Fi transmitters to provide smart access to your Yale lock, including Auto-Lock and Auto-Unlock when you are near the lock, integration into home automation systems and smart scenes, and enabling voice control compatibility with Alexa, Google Assistant, and Siri.

Share Passcodes for Key Free Operation

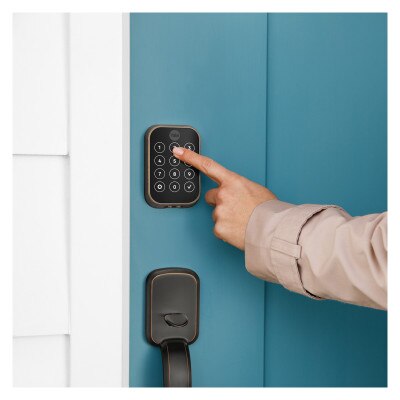

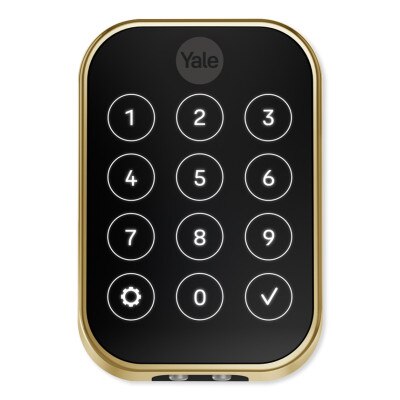

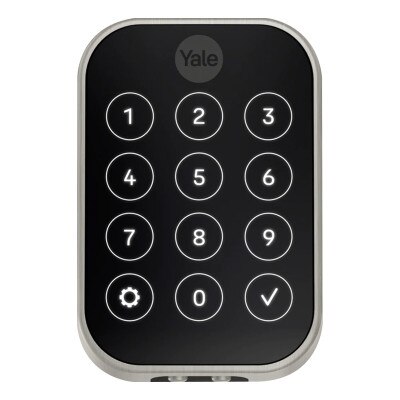

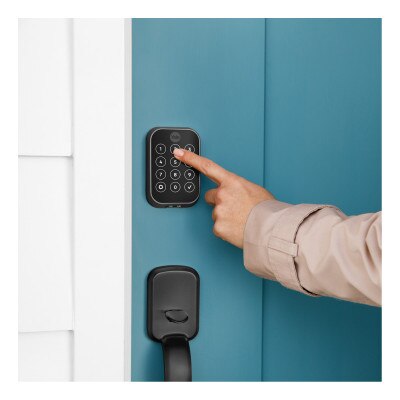

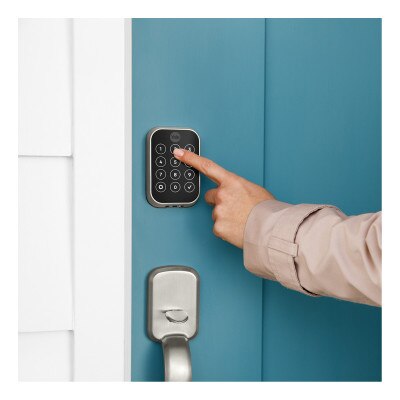

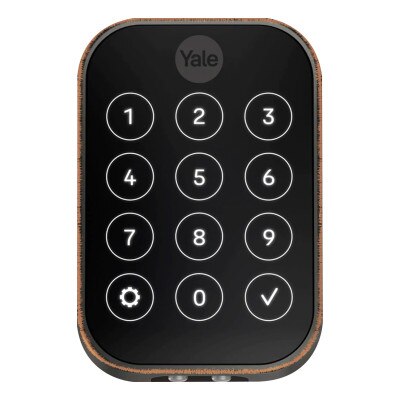

The Yale Pro 2 Lock includes a built-in touchscreen keypad to allow owners and guests to input 4-8 digit codes to unlock the door. Up to 500 codes can be created, saved, and shared with guests, family members, and renters on the Yale Access app. Owners can schedule when codes are valid for greater access control over your building. Valid codes can be limited to certain days of the week or windows of time on a given day.

Installation Details

Designed for use with most standard entryway hinge and pivot doors in the US and Canada, the smart lock installs on doors measuring 1-3/8 to 2-1/4 inches thick. The lock is suitable for both left or right handed doors. All the necessary hardware is included, along with a template for door preparation and detailed instructions.

  • Installs on a standard door 1-3/8 to 2-1/4" thick
  • Adjustable latch fits existing backset of either 2-3/8" or 2-3/4"
  • Suitable for right-handed or left-handed operation

The deadbolt is powered by four (4) AA batteries, which are included and should last for up to 3 months. The deadbolt can also support a 9V backup battery for continuous operation in the event of power outages or when the primary batteries die. A Yale Smart Network Module (Wi-Fi Smart Module included) easily snaps in above the batteries. When the battery is low, or wrong codes are entered, or the lock is tampered with, an alert is triggered.


  • Yale Pro 2 Exterior Touchscreen Keypad and Deadbolt, Key Free

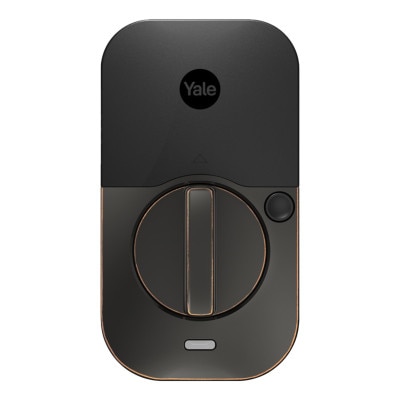

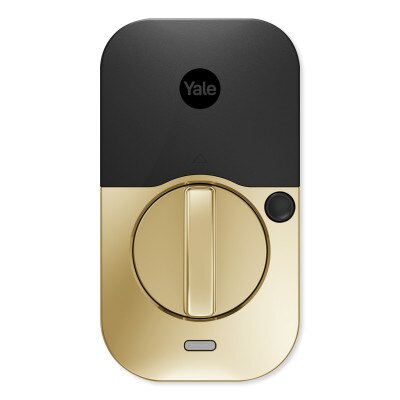

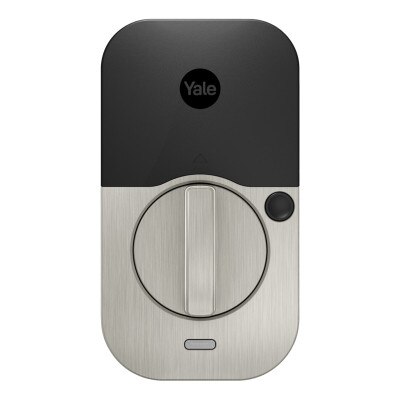

  • Yale Pro 2 Interior Lock
  • DoorSense
  • Wi-Fi Smart Module
  • Deadbolt and Strike Plate
  • Mounting Hardware
  • (4) AA Batteries
  • Door Template
  • Installation Manual


  • Requires connection to the Internet and Wi-Fi network.
  • Remote access requires a smartphone or mobile device with the Yale Access app for iOS and Android.

Yale: Simpler & More Secure

Yale focuses on making home security simple, secure, and easily accessible for any consumer. They are committed to designing products and services that allow anyone to monitor and manage entry into the home from wherever they are, while keeping intruders out. They've created a thoughtful system of products and services that are easy to use, aesthetically stylish, and completely reliable. Yale products make life simpler and more secure.


  • Manufacturer Part #:
    • YRD654-WF1-BSP: Black Suede
    • YRD654-WF1-P05: Lifetime Brass
    • YRD654-WF1-0BP: Oil-Rubbed Bronze
    • YRD654-WF1-619: Satin Nickel
  • UPC:
    • YRD654-WF1-BSP: 081023125895
    • YRD654-WF1-P05: 081023125918
    • YRD654-WF1-0BP: 081023125901
    • YRD654-WF1-619: 081023125888
  • Wireless Protocol: Wi-Fi & Bluetooth – through Yale Wi-Fi Smart Module
  • Grade 2: A156.36 ANSI/BHMA
  • Keypad Type: Touchscreen
  • Batteries Required: Yes (4 Alkaline)
  • Handing: Self handing (Please hand while in unlocked position)
  • Latch Front: RC (Round Corner)
  • Door Thickness: 1-3/8 to 2-1/4"
  • Strike: 1" x 2 1/4"
  • Strike Front: RC (Round Corner)
  • Face Bore: 2-1/8" or 1-1/2"
  • Edge Bore: 1"
  • Backset: 2-3/8 or 2-3/4"
  • Weight: 4.5 lbs
  • Dimensions:
    • Exterior: 0.6" L x 2.5" W x 3.7" H
    • Interior: 1.7" L x 2.7" W x 4.9" H
  • Operating Temperature:
    • Outside: -22 F to 140°F (-30 to 60°C)
    • Inside: 5 F to 158°F (-15 to 70°C)
    • Battery: -14 F to 131°F (-10 to 55°C)
    • Storage: -40 F to 185°F (-40 to 85°C)
  • Warranty: 1-Year Electronics, Lifetime Limited mechanical and finish
