Yale Norwood Lever Passage, Non-Locking

Pairs Perfectly With Your Yale Keypad Lock

Enhance the look and functionality of your front door by pairing your Yale keypad lock with the Yale Norwood Lever Passage (Non-Locking). As part of the YH Collection, this door lever has a distinctive design and durable build, making it ideal for a front door entry, study, pantry, laundry room, or a secondary door. It can easily be installed with a screwdriver and fits most standard doors. It also works with inswing and outswing doors and has concealed screws to give it a clean, sleek look.

• Pairs perfectly with Yale keypad locks
• Ideal for a front door, secondary door, study, or laundry room
• Works with inswing and outswing doors and fits standard doors
• Lifetime limited warranty for mechanical and finish
• Part of the YH Collection

Contents

• Yale Norwood Lever Passage
• Manual

Yale Real Living – Solutions For The Digital Home

As a residential product line under the Yale Security brand, the Yale Real Living series brings over a century of innovation to the digital home. Known for manufacturing top-quality deadbolts and leversets, Yale now offers lock hardware and other home security solutions fit for the modern, connected age.

• Manufacturer Part #:

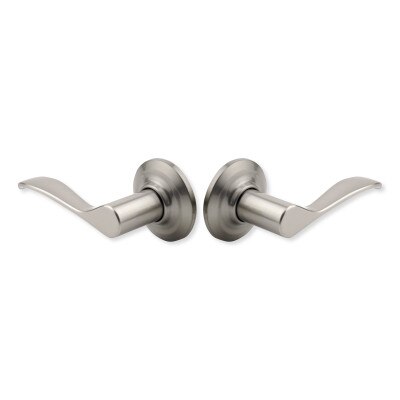

• D5108N01: Satin Nickel

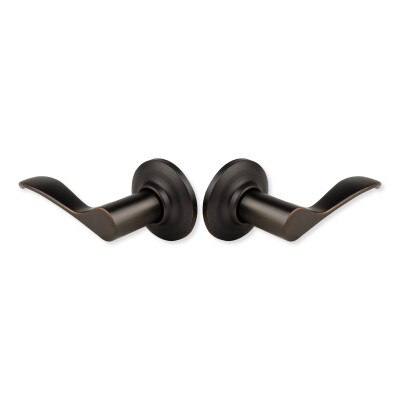

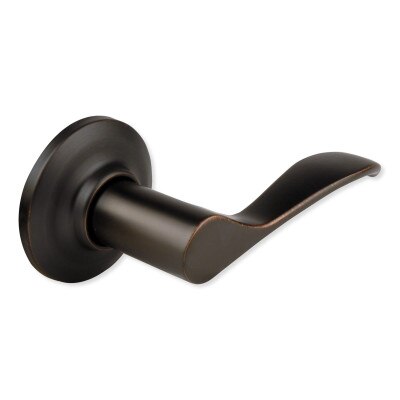

• D5108K01: Oil-Rubbed Bronze

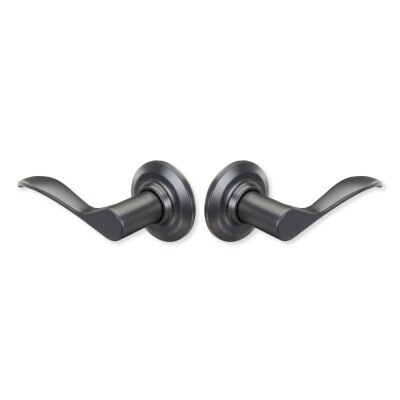

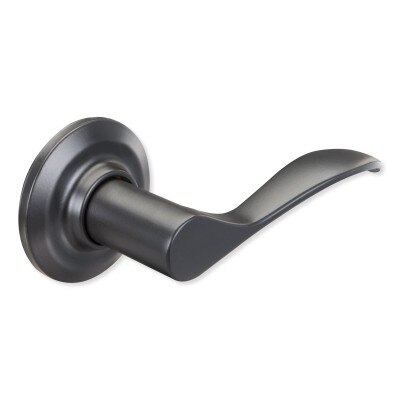

• D5108S01: Black Suede

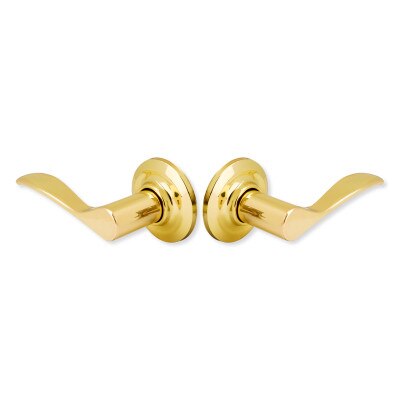

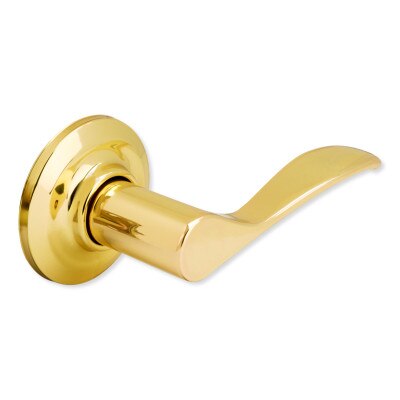

• D5108301: Polished Brass
• UPC:
• D5108K01: 081023182867
• D5108301: 081023162081
• D5108N01: 081023184175
• D5108S01: 081023001663
• Product Dimensions: 2-9/16" x 2-9/16" x 2"
• Grade: Grade 2: Heavy Duty A156.2 Series 4000 ANSI/BHMA
• Door Thickness: 1-3/8" to 1-3/4"
• Edge Bore: 1"
• Backset: 2-3/8" or 2-3/4"
• Face Bore: 2-1/8"
• Cylinder: NA
• Keyway1: NA
• Number of Keys: 0
• Latch: Adjustable
• Latch Front: RC (Round Corner)
• Strike: 2 1/4" Full Lip RC (Round Corner)
• Strike Front: RC (Round Corner)
• Handing: Non-Reversible
• Warranty: Lifetime Limited
