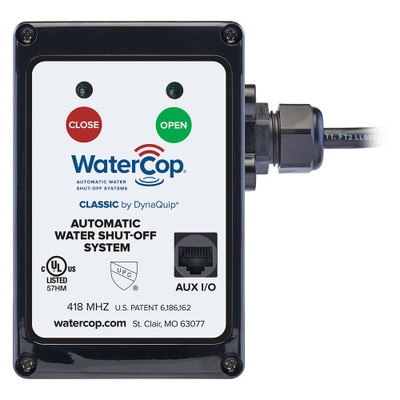

WaterCop Classic Interface for Large Valves with 12VDC Actuators

Command Larger Shut-Off Valves to Stop Leaks

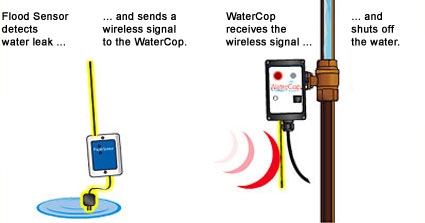

Stop leaks in larger plumbing systems as soon as they appear with the WaterCop Classic Interface for Large Valves with 12VDC Actuators. This smart actuator controller does not include a built-in actuator motor and is specifically designed to work with the WaterCop Lead Free Brass Ball Valve with 12VDC Industrial Actuator, Low Voltage (sold separately) and plumbing systems that utilize 1-1/2-in and 2-in pipes and valves. The WaterCop Classic Interface is the core of the WaterCop Classic Flood Prevention System, which protects your home from leaks and flooding originating from your indoor plumbing. When the Interface receives an alert from a connected leak sensor that water is detected, the Interface activates a connected actuator motor to close the connected valve to prevent further leakage and minimize possible water damage. Once the motor seals your main water line, it will not open until you press the “Open” button on the Interface. The Interface also allows you to manually close the connected shut-off valve by pressing the “Close” button on the Interface or when it receives a “Close” input from a connected Water Control Wall Switch. The Classic Interface receives signals via 418 MHz transmissions from compatible flood sensors up to 200 feet away or via ethernet cable from a wired Water Control Wall Switch (both sold separately). The Classic Interface can also be added into a smart security or automation system.

• Receives wireless signals from wireless flood sensor(s)
• Automatically activates the shut-off valve upon leak detection
• On/off valve control buttons allow for manual operation
• Color-coded LED indicates current valve position
• Includes 20-foot power cord for any standard outlet
• Optionally integrates into a security/automation system

About the WaterCop System

The WaterCop System provides your home with round-the-clock indoor leak and flood detection and protection. The system consists of wired and wireless flood sensors, On/Off control switches, and a main control device consisting of an actuator motor and ball valve mounted on your main water line that all work together to detect leaks from your plumbing system or excessive water in selected areas and automatically shut off the water supply to help reduce and/or minimize the chances of major water damage. A WaterCop automatic water shut-off valve system is compatible with most home security and home automation systems via ethernet connection.

WaterCop System Components

A complete WaterCop System is comprised of three essential components:

• A WaterCop Electric Actuator Motor that receives wireless signals from paired flood sensors to automatically seal the main water line
• A ball valve that mounts onto your main water line and connects to the WaterCop Motor to seal your water supply
• Wireless or wired flood sensors which detect water and transmit alert signals to the WaterCop to turn off your water supply

Where to Place WaterCop Sensors:

• Kitchen: dishwashers, refrigerators, icemakers
• Bathroom: toilets, bathtubs, showers
• Water Heaters
• Washing Machines
• Humidifiers
• Spigots
• Sinks

Contents

• WaterCop Classic Indoor Interface
• Connection Cable
• Power Cord, 20-foot

Notes

• Large Lead-Free Brass Ball Valve with 12VDC Industrial Actuator (WCEHH2xATE25H) is sold separately.
• WaterCop leak sensors (WCDFSx) sold separately.
• Not compatible with Z-Wave WaterCop devices. Intended for use only with the wireless 418 MHz WaterCop Classic system.

Stop Damaging Water Leaks

WaterCop automatic water shut-off systems automatically turn off the water when a leak has been detected. This effectively reduces the chance of water damage due to common plumbing problems.

WaterCop Systems are activated by flood sensors, an optional remote switch, or many types of home security systems. WaterCop systems provide homeowners with added control benefits and peace of mind. Maintain a smarter home ... install a WaterCop today!

• Manufacturer Part #: WCDNM
• Frequency: 418 MHz
• Wireless Range: approx. 100 to 200 feet
• Ambient Temperature: 35 to 105 degrees F
• Enclosure: Polycarbonate
• Voltage: 12VDC, 60 Hz
• Power Cord: 20-foot power cord with 2-prong transformer for a standard outlet.
• Approvals: FCC, UL
• Warranty: 2 Year
