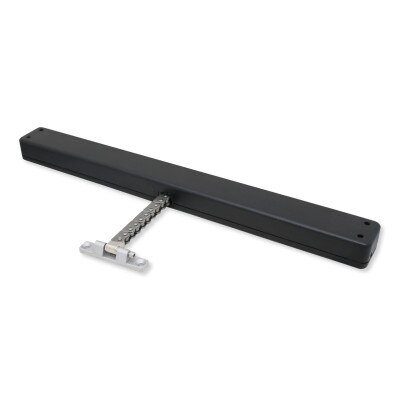

UCS Vega Window Motor System, DC, Black

SKU: UC41149UUL

Usually ships in 3-5 days.

NOTE: This is a heavy/dimensional part; it is not eligible for free shipping.

$478.95

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Details

Chain Self-Adjusts For Proper Closing

Easily Open/Close your windows, skylights, or awnings with the UCS Vega Window Motor System, DC, Black. This electric motorized system includes a 12-inch chain operator for skylights and awning or hopper windows. The automatic blinds motor connects directly to the sash. This actuator features a double-link stainless steel chain, with a chrome-plated brass terminal. Multiple motors can be wired in parallel. This electric curtain motor is UL Listed.

  • Motorized actuator for skylights, awnings or hopper windows
  • Connects direct to sash; no operator needed as with other brands
  • Double-link stainless steel chain with chrome-plated brass terminal
  • Chain electronically self-adjusts for proper closing at installation
  • Operate several openings simultaneously by wiring motors in parallel

Installation Details

The motor system mounts directly over your selected window or awning, with the motor attaching directly to the chain or sash. The system's chain is capable of self-adjusting for proper closing of the window or awning during installation, ensuring correct and easy initial installment.

HeadingSpecifications

  • Vega DC Chain Actuator
  • Manual

Notes

  • Mounting brackets sold separately.
  • Do not tamper with the actuator, or the warranty will be voided.

UCS Vega Motor System

The UCS Motor System is ideal for skylights, awnings or hopper windows. The motor connects directly, easily to sash; no operator needed as with other brands. The chain is double-link, all stainless steel, and centered in case; the chain terminal is chrome-plated brass. It can be easily built-in into the frame of curtain walls. Stopping in a closed position is regulated by an internal limit switch. The motor stops in intermediate positions in case of overload.

Specifications

  • Manufacturer Part #: 41149UUL
  • Opening: 12" (300 mm) maximum opening chain stroke
  • Dimensions: 1-3/4" H x 1-1/4"W x 17-3/4" L (45 x 32 x 450 mm)
  • Force: 66 lbs. (300 N) in push and pull
  • Speed: 0.375 inch (9 mm) per second
  • Min. Height: Minimum 10" sash height if using pivoting brackets; minimum 35-1/2" (900 mm) if brackets are not used
  • Remote: see Vega RF with remote control, or use Vega below with CRM and remote
  • Warranty: 2 Year

Downloads

»UCS Vega DC Chain Actuator Spec Sheet (.pdf)
