UCS Vega Twin Synchro Chain Actuator DC

Chain Self-Adjusts For Proper Closing

The UCS Vega Twin Synchro Chain Actuator DC motor provides dual 12-inch chain operators to aid in opening your skylights, curtain wall vents, and awning or hopper windows. The Twin Synchro Vega automatic motor is designed for wide installations that require 2 motorized connection points and synchronized operation. The chain actuator connects directly to the window or curtain sash with no operator needed. This actuator features a double-link stainless steel chain with an aluminium encased terminal.

• Dual 12" (300mm) self adjusting chain operator for wide window and curtain installations
• 600N (132 lbs) push/pull operating force

Contents

• Twin Synchro Chain Actuator
• Power cable

UCS Motor System

The UCS Motor System is ideal for skylights, awnings or hopper windows. The motor connects directly, easily to sash; no operator needed as with other brands. The chain is double-link, all stainless steel, and centered in case; chain terminal is chrome-plated brass. It can be easily built-in into the frame of curtain walls. Stopping in closed position is regulated by an internal limit switch. The motor stops in intermediate positions in case of overload.

• Manufacturer Part #:

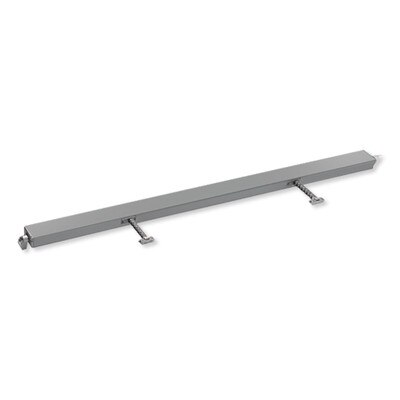

• 41154LUL (Silver)

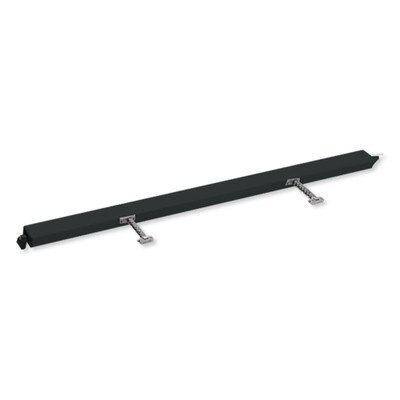

• 41155NUL (Black)

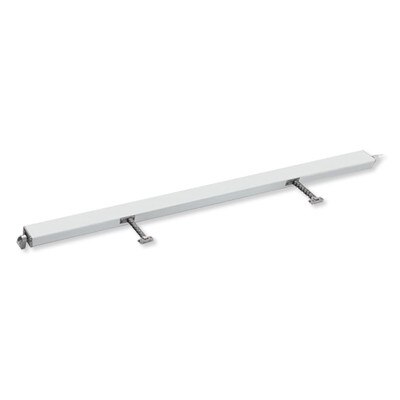

• 41156RUL (White)
• Dimensions: 39.21" W x 2.72 H x 1.46 D (996mm W x 69mm H x 37mm D)
• Force: 132 lbs. (600 N) push and pull
• Chain stroke: 11.8" (300mm)
• Chain Speed: 0.35 inch (9mm) per second
• Voltage Supply: 24VDC Low Voltage
• Current Absorption: 1.4 A average
• Run/Rest cycle: For every 60 sec running (on), must then rest (off) for 120 sec
• Limit Stop:
• (Open): Built in limit switch
• (Closed) Integrated electronic power cut-off
• Power Cable: UL cable 1.5 meter included, white color
• Min. installation Height:
• 10" sash height if using pivoting brackets
• 35.5" (900 mm) if brackets are not used
• Ratings and Certifications: UL, IP20
• Warranty: 2 Year

»UCS 4115xxUL Twin Synchro Vega DC Spec Sheet (.pdf)
