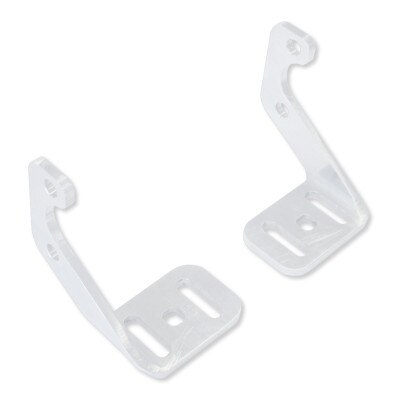

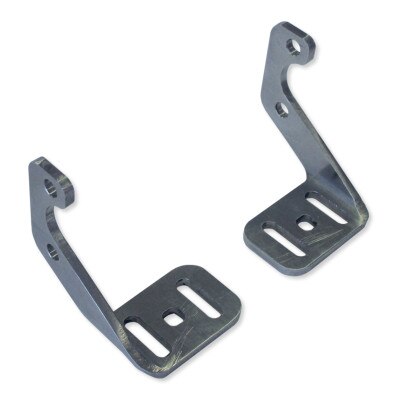

UCS Front Bracket Kit For Nano DC Chain Actuators

Secures A Nano DC Electric Chain Actuator In Place

The UCS Front Bracket Kit For Nano DC Chain Actuators is required for the installation of a DC Chain Actuator to various types of windows such as a skylight, awning window, hopper, or curtain wall vent. This kit allows for a fixed installation if you use two screws or it can have a pivoting installation if you use one screw.

UCS Motor System

The UCS Motor System is ideal for skylights, awnings or hopper windows. The motor connects directly, easily to sash; no operator needed as with other brands. The chain is double-link, all stainless steel, and centered in case; the chain terminal is chrome-plated brass. It can be easily built-in into the frame of curtain walls. Stopping in a closed position is regulated by an internal limit switch. The motor stops in intermediate positions in case of overload.

• Manufacturer Part #:
• 41936R: Black
• 41935Q: Gray
• 41937S: White
• Nano DC Electric Chain Actuator Window Installations:
• Awning
• Skylight
• Hopper
• Curtain Wall

»UCS Nano DC Chain Actuator Spec Sheet (.pdf)
»UCS Nano DC Chain Actuator User Manual (.pdf)
