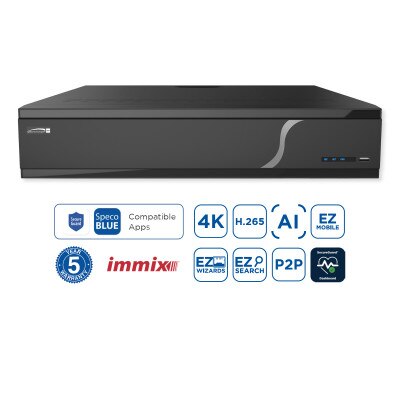

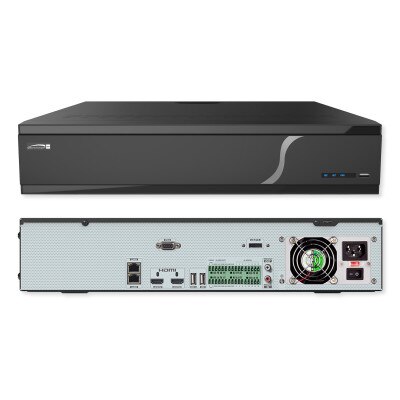

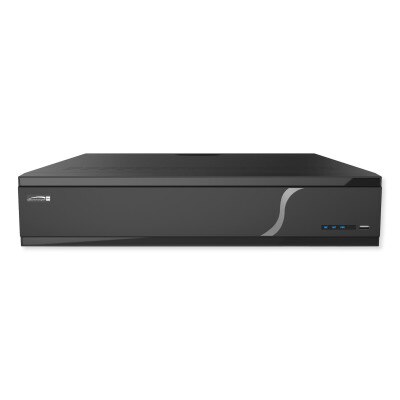

Speco 32-Channel 4K NVR with Facial Recognition and Smart Analytics

Save and Review UHD Footage From 32 Cameras

Dramatically increase the size and capabilities of your surveillance network with the Speco 32-Channel 4K NVR With Facial Recognition and Smart Analytics. This network video recorder (NVR) records and saves surveillance footage in resolutions between 720p to 4K captured from up to 32 compatible IP cameras in indoor or outdoor environments. This NVR features advanced security and playback software including Smart Analytics and Facial Recognition to easily locate specific recordings and identify subjects and events seen by your connected security cameras. Smart Analytics and Facial Recognition features can only be utilized when cameras that support those features are connected to the NVR. This NVR also includes 8 SATA ports for connecting to separate storage devices or to other NVRs to greatly expand the size of your surveillance network. Up to 20TB of additional storage per SATA connection can be added, for a maximum of 160TB of storage for a single network.

• NVR supports up to 32 compatible IP cameras
• Supports real time recording and playback in resolutions between 720p and 12MP (4000 x 3000)
• Max resolution 12MP records and plays back at 20 fps, 8MP and lower records and playback at 30fps
• H.265 compression stores up to 2x more footage than H.264
• Allows for remote monitoring, configuration, PTZ control via web browser
• Smart Analytics improve saved footage with smart playback functionality including Facial Recognition, License Plate Recognition, line crossing, people and more
• Supports VGA and 4K HDMI video outputs
• Allows for remote monitoring, configuration, PTZ control via web browser
• Mobile viewing with Speco SecureGuard and Speco Blue mobile apps

The NVR supports up to 12MP resolution (4000 x 3000) and can record HD footage up to 320 Mbps across all 32 channels. Built-in S.M.A.R.T. technology enables self-monitoring, analysis and reporting for the NVR's HDD. In case of network interruption or connection loss, the NVR can automatically record footage to inserted USB drives and transfer files back to the NVR when connection is restored.

This NVR supports Smart Analytics software, dramatically improving the quality of your surveillance network and captured footage. Smart Analytics software simplifies reviewing saved footage for specialized surveillance tasks. By connecting a Speco Analytic camera to the NVR, you can review footage through the Speco management portal using Smart Playback functions, such as drawing a line or box across a specific area of a recording in order to rapidly search for activity within the selected area. Additionally, this NVR is compatible with cameras that use Facial Recognition technology, enabling you to catalogue and identify images of subjects seen within your surveillance network for more efficient reviewing of recorded footage.

Built-In Hard Drive for Convenient Storage

Each NVR comes equipped with a pre-installed multi-terabyte hard drive to store recorded video and audio and employs H.265 compression for optimized storage. Its HDD storage can also be optimized by switching between low- and high-quality streaming during simultaneous "Continuous + Sensor" or "Continuous + Motion" modes.

Easy Access To Footage Via Mobile App

View live and stored video from anywhere, anytime through the free SecureGuard or Speco Blue mobile apps for iOS and Android devices. From your smart mobile device, you'll be able to view live video footage as well as playback, pause, rewind, and fast forward recorded footage. This allows you to monitor your home from any location with an Internet connection no matter your location.

The NVR has "EZ Wizard" functions for quick installation.

• EZ Wizards: For the Quickest Use & Installation
• Camera: Quickly discovers and installs all Speco IP cameras
• Setup: For quick system setup
• Network: Network setup and port forwarding
• Record: Quickly setup recording resolutions and recording type
• EZ Search 2.0: Quickly search events from thumbnails
• EZ Copy: Auto copy what you are playing onto a USB flash drive
• EZ Mobile: Easy Mobile Setup for viewing on desktop or mobile apps

A web-enabled PC or MAC computer is required to operate the NVR. You can access the network via Speco One and SureGuard VMS, and supported Internet browsers.

Installation Details

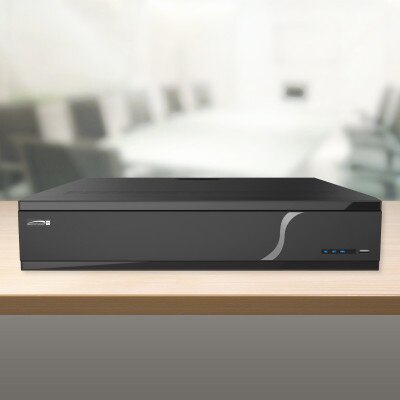

The NVR can be placed on a tabletop or rack mounted. Once camera connections are set up, use the EZ Wizard tools to quickly set up your surveillance system. The NVR connects to the Internet to provide remote management and access to the system and enables you to playback footage, adjust settings, and monitor connected cameras from any Internet enabled device.

Contents

• NVR Unit
• Power Cable
• Ethernet Cable
• Software CD
• Optical Mouse
• Quick Start Guide

Notes

• Hard drives not covered by 5-year warranty.
• USB device not included.
• Facial Recognition and Smart Analytics require Speco Facial Recognition or Analytic Cameras connected to the NVR, both sold separately.

IMPORTANT NOTE: Speco Technologies products are not available to ship outside the U.S. Please contact Speco Technologies directly for international orders.

Commercial & Residential Solutions From Speco

Speco Technologies is dedicated to providing the highest quality residential and commercial sound, security, CCTV closed circuit video and electronic accessories. Contractors, installers, builders, engineers, architects and homeowners rely on Speco products to satisfy both their commercial and residential needs.

• Manufacturer Part #:
• N32NRN4TB: 4 TB
• N32NRN6TB: 6 TB
• N32NRN8TB: 8 TB
• N32NRN12TB: 12 TB
• N32NRN16TB: 16 TB
• N32NRN24TB: 24 TB
• N32NRN32TB: 32 TB
• N32NRN40TB: 40 TB
• N32NRN48TB: 48 TB
• UPC:
• N32NRN4TB: 030519042895
• N32NRN6TB: 030519042871
• N32NRN8TB: 030519042901
• N32NRN12TB: 030519042918
• N32NRN16TB: 030519042925
• N32NRN24TB: 030519042932
• N32NRN32TB: 030519042864
• N32NRN40TB: 030519042956
• N32NRN48TB: 030519042963
• Warranty: 5-Year Limited, Hard Drives Excluded

Video

• Input: 32 channels
• IP Camera: H.264/H.265 Auto Detection (Max. 8MP)
• Output: Main Monitor:
• HDMI: Max. 4K (2160p)
• VGA: Max Full HD (1080p)

Audio

• Network Input: 32 Ch. IPC audio input
• 2-Way Audio: 1 (RCA)
• Local Output: 1 (RCA)

Recording

• Resolution: 12MP / 8MP (4K) / 6MP / 5MP / 4MP / 3MP / 1080p / 720p
• Codec: H.264/H.265 Auto Detection
• Max Frame Rate per Channel: 12MP at 20fps / 8MP or lower at 30fps
• Recording Mode: Analytics / Continuous / Motion / Sensor / Schedule / Manual
• Pre/Post Recording: Max 5 seconds/ Max 10 minutes

Search & Playback

• Search Modes: EZ Search, Motion, Specific Date/Time, Event, Museum, Bookmarks, Snapshots, Log
• Simultaneous Playback: Max 16 Channels
• Smart Search: Highlighted color to display camera records in a certain period of time, different colors refer to different record events
• Playback Functions: Play, pause, FF, Rewind, digital zoom, etc

Backup

• Media: USB Flash Drive, Network
• File Format: JPG, AVI, Proprietary Format (Includes Player)

Storage

• HDD: Interface Type: SATA II
• Max Capacity of Each HDD: 20TB
• Internal SATA ports: 8
• USB Ports:
• Front: 1 USB 2.0
• Rear: 1 USB 3.0, 1 USB 2.0

Alarm

• Mode: Manual, sensor, motion, exception, AI
• Input: 16 Ch. Local
• Output: 9 Ch. Local
• Linkage: Record/Snapshot/Preset/Email/Pop-up Window

User I/F

• Input Method: IR Remote, Mouse

Network

• Bandwidth: 320Mbps
• P2P/Dynamic DNS: Free US-Based Speco P2P and DDNS Service
• Protocols: TCP/IP, PPPoE, DHCP, DNS, UPnP, NTP, SMTP

Network Access

• Mobile Client: iOS/Android via Speco Blue App, SecureGuard® Client
• VMS/CMS: Speco Blue VMS, SecureGuard®
• User Access: Max 10 users online (web client)

Features

• Digital Zoom: Live and Playback, Free Size
• S.M.A.R.T.: Temperature, Power On Time, Bad Sectors, and Health

Smart Analytics

• People/Vehicle Detection: Line Crossing, People and Intrusion
• Facial Recognition:
• Store up to 10,000 face images
• Up to 6CH for event
• Face Search up to 32CH
• License Plate Recognition: LPR on all 32CH, store up to 50,000 License Plate images
• Others: Object abandoned/missing, trip wire

Power

• Power Consumption: ≤ 30W (without HDD)

Environmental & Physical

• Operating Temperature: 14°F to 122° F (-10° to 50° C)
• Relative Humidity: 10 to 90 percent RH
• Dimensions: 17.5 (W) x 17.2 (H) x 3.5 (D) inches (445 x 436 x 90 mm)
