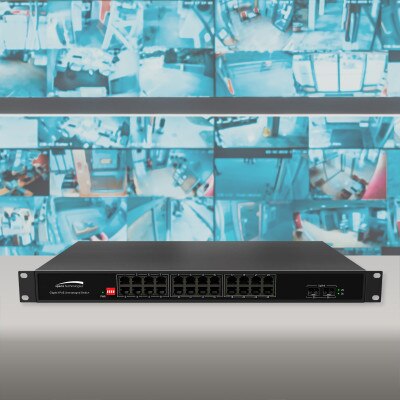

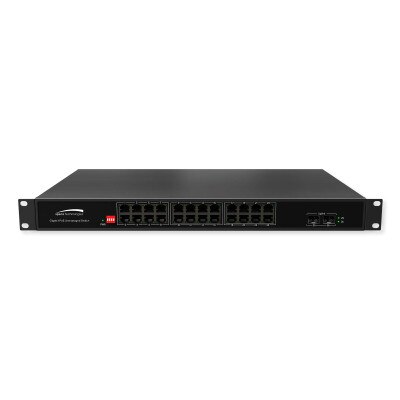

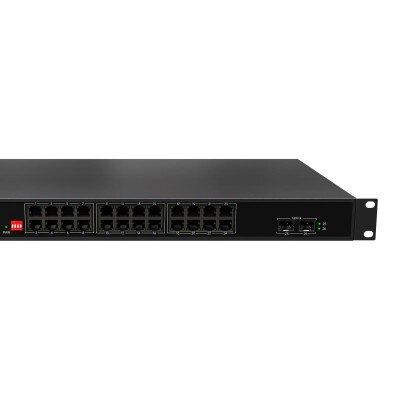

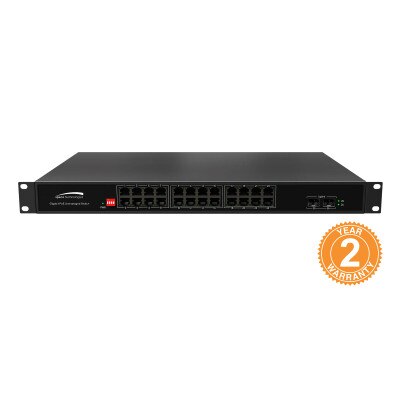

Speco 26-Port Gigabit Switch with 24-PoE Ports and 2 SFP Uplink

Power And Connect Up To 24 PoE Devices

Power and connect up to two dozen PoE devices using the Speco 26-Port Gigabit Switch with 24-PoE Ports and 2 SFP Uplink. This ethernet network switch connects and manages up to 24 ethernet and PoE connected devices such as computers, IP cameras, VoIP devices, and wireless access points. 2 Gigabit SFP expansion ports provide expansion options for the switch to connect with other network switches to drastically increase the number of Ethernet connected devices that can be added into your network. Each PoE port handles devices that use up to 30 Watts of power (max.), and the total power budget reaches 378 Watts. This switch also provides a wide variety of PoE management features to help optimize your network performance based on active connected devices.

The Switch's PoE Watchdog and Storm Control functions reset ports automatically when data is not being transmitted and monitor traffic levels to optimize bandwidth allocation. A Link Extension Mode provides up to 820ft (250 m) long-distance power transmission at 10Mbps for larger installations to guarantee a constant network connection. Finally, the Switch's Port Isolation Mode isolates each port's network connection except for the uplink ports to provide additional security and network performance.

• Gigabit network switch features (24) 10/100/1000Mbps PoE ports and (2) shared SFP Gigabit optical ports
• Each port automatically detects and identifies a plugged-in device in order to efficiently deliver power and network bandwidth
• Link Extension Mode provides up to 820ft (250 m) long-distance power transmission at 10Mbps for larger installations to guarantee a constant network connection
• Port Isolation Mode isolates each port except for the uplink ports to provide additional security and network performance
• Storm Control allows the switch to monitor traffic levels and to drop broadcast, multicast, and unknown unicast packets when a specified traffic level is exceeded

Installation Details

The Gigabit Switch can be placed onto a tabletop setup or rack mounted with the included rack ears.

Contents

• 26-Port Gigabit Switch
• Power Cord
• Rack Mount Ears
• 2 pcs Copper Transceiver Modules

IMPORTANT NOTE: Speco Technologies products are not available to ship outside the U.S. Please contact Speco Technologies directly for international orders.

Commercial & Residential Solutions From Speco

Speco Technologies is dedicated to providing the highest quality residential and commercial sound, security, CCTV closed-circuit video, and electronic accessories. Contractors, installers, builders, engineers, architects, and homeowners rely on Speco products to satisfy both their commercial and residential needs.

• Manufacturer Part #: P24S26G2
• UPC: 030519043366

I/O Interface

• Power Input: AC 100-240V, 50/60Hz
• Ethernet:
• 24 x 10/100/1000M Port
• 2 x Gigabit SFP Port

Performance

• Switching Capacity: 52Gbps
• Throughput: 38.6Mpps
• Packet Buffer: 4.1M
• MAC Address: 8K
• Jumbo Frame: 10KB
• Transfer Mode: Store and forward
• MTBF: 100000 hours

Standards

• PoE Standards:
• IEEE802.3af (15.4W)
• IEEE802.3at (30W)
• Network Standards:
• IEEE802.3 (10Base-T)
• IEEE802.3u (100Base-TX)
• IEEE802.3ab (1000Base-TX)
• IEEE802.3z (1000Base-FX)
• IEEE802.3x (Flow control)
• Recommended Network Medium:
• 10Base-T: Cat3,4,5 or above UTP(≤100M)
• 100Base-TX: Cat5 or above UTP(≤100M)
• 1000Base-TX: Cat5 or above UTP(≤100M)
• Industry Standards:
• EMI: FCC Part 15
• CISPR (EN55032) Class A
• EMS: EN61000-4-2 (ESD)
• EN61000-4-4 (EFT)
• Shock: IEC 60068-2-28
• Free Fall: IEC 60068-2-32
• Vibration: IEC 60068-2-6
• Optical Media:
• Multimode Fiber: 50/125, 62.5/125, 100/140um
• Single Mode Fiber: 8/125, 8.7/125, 9/125, 10/125um

Environmental

• Operating Temperature: 14 to 122°F (-10 to 50°C), 10 to 90 percent RH
• Storage Temperature: -40 to 158°F (-40 to 70°C), 5 to 90 percent RH

Mechanical

• Dimensions: 17.3 inches L x 8 inches W x 1.73 inches H (440mm x 205mm x 44mm)
• Weight: 8.6 lbs (3.9kg)
• Power Voltage:
• Input Voltage: AC100-240V, 50/60Hz
• Power Supply: 52V, 7.69A (included)
• Per Port Max PoE Power: 30W
• Total Power Budget of unit: 378W
