  • Shelly Qubino Wave i4 Multi-Touch Control Module, Z-Wave 800

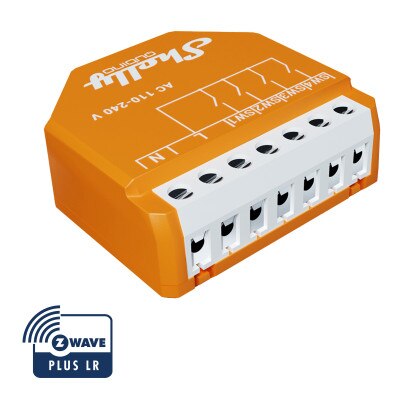

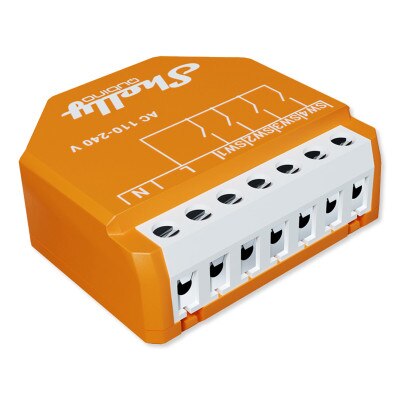

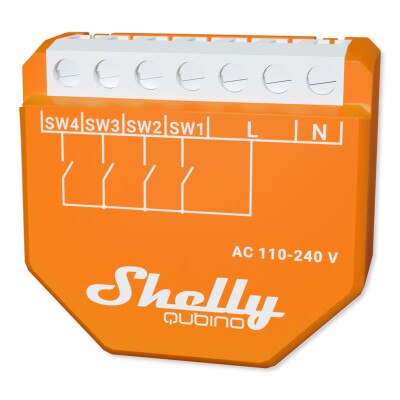

Shelly Qubino Wave i4 Multi-Touch Control Module, Z-Wave 800

SKU: QUWAVEI4

Order now and we'll ship same business day (if ordered before 3 pm PST).

$15.95

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Details

Upgrade Multi-Touch Switches with Z-Wave Automation

Add one-touch activation of smart home scenes to your multi-touch or 4-gang switches with the Shelly Qubino Wave i4 Multi-Touch Control Module, Z-Wave 800! This Z-Wave 800 compatible input reader module installs behind multi-touch switches or multi-gang switches to convert them into Z-Wave automation controllers capable of activating or deactivating Z-Wave scenes or commands. From a single location, users can activate/deactivate individual Z-Wave devices or automated scenes created from a Z-Wave hub's mobile application or web dashboard. For On/Off switches, up to 2 Z-Wave actions or scenes can be configured per switch, reaching up to 8 Z-Wave automations for 4-gang switches. For multi-touch switches (1 Push/Double Push/Hold/Hold and Release), up to 4 Z-Wave actions or scenes can be assigned per switch (On/Off/Hold), allowing you to program and up to 16 commands to individual Z-Wave devices or groups of devices in programmed scenes from 1 location.

  • Z-Wave 800 control module adds On/Off/Activate Scene/Deactivate Scene commands to a multi-gang or multi-touch switch installation
  • Works with switches controlling lighting, small appliances, fans, and motorized shutters, blinds and drapery
  • Multi-click/multi touch support allows for up to 3 to 4 Z-Wave automations to be programmed per switch, allowing for up to 12 to 16 automations per installation
  • Can be powered by 5 to 24 VDC for most electrical installations
  • Can trigger Z-Wave automated scenes and schedules to turn On/Off when a switch is flipped, double clicked, or held down and released
  • Shares realtime status of controlled devices and delivers usage notifications
  • Standard Z-Wave mesh protocol range reaches up to 130 feet (40m) line of sight to the nearest Z-Wave receiver or hub
  • Z-Wave 800 software provide increased power, longer range, faster transmissions, and improved security
  • Z-Wave Smart Start technology pairs news devices quickly and S2 framework ensures enhanced security

The Shelly Qubino Wave i4 Multi-Touch Control Module allows anyone in your home or business to activate/deactivate your programmed Z-Wave automations instead of relying on a single user. From one location you could turn On and Off all Z-Wave controlled lights in your home, slowly Open or Close a window to a specific position and turn a fan On or Off, activate a "Movie Night" smart scene that turns on multicolor lights and media devices plugged into a single outlet, and/or shut off a specific outlet to save some energy while you are away. The i4 Multi-Touch is designed to be installed behind multi-button switch installations to maximize the number of available automations that can be assigned to each switch.

Shelley Smart Control App – Everything at Home Connected

Enjoy enhanced home automation control and precise monitoring of your Shelly devices no matter where you are with the Shelly Smart Control app. The app connects to Shelly's cloud service to help you control your connected devices remotely and send notifications for all automated events in your home directly to your smart device. You can easily configure devices and manage their settings individually, or you can create personalized scenes by combining Shelly devices to trigger certain actions in your home automation. The Shelly Smart Control App supports real-time power metering with power management (PM) devices, smart plugs, and smart bulbs in order to allow you to build complex automation solutions for improved energy efficiency and lower electricity bills.

  • Easy Inclusion and Control: Include and name new devices in the Shelly Smart Control app, assign them to the rooms they are located in, and group them into scheduled or automated scenes.
  • Custom Dashboard: Create multiple dashboards for quick access to your preferred devices, rooms, and scenes. Issue commands using your dashboards or your preferred voice assistant towards individual devices or a group of devices.
  • Smart Scenes: Combine multiple devices into one smart scene with pre-set triggered actions. Lower the lights when the TV is turned on for a "Movie night". Cut off the power and send a notification when a space heater has been left on past 9am while you are "Away at Work".
  • Custom Schedules and Timers: Teach your home how to make you more comfortable by setting custom schedules based on your agenda. You can set a Shelly controlled switch to turn on the outdoor lights at 7:00 PM on workdays, or turn on your heater an hour before you return from work.
  • Energy Monitoring: An energy consumption panel gives you a detailed view of your live and recorded energy usage from devices controlled by Shelley Qubino products. The information is stored in a free cloud and fully accessible to you for further analysis of your energy consumption habits.
  • Works with Alexa: The Shelly Smart Control app is natively compatible with Amazon Alexa.

Installation Details

The Shelly Qubino Wave i4 DC Multi-Touch Control Module, Z-Wave 800 fits in behind a wall switch and requires a neutral wire for setup. The i4 Multi-Touch Control Module works with single multi-button switches or multi-gang switch installations. The i4 can support up to 16 Z-Wave automations and commands, up to 4 assigned per switch input. This device will automatically attempt to locate and request inclusion into your local Z-Wave network after it is installed.

Z-Wave Plus v3 Certification

Z-Wave Plus v3 is an upgraded Z-Wave certification program to help you identify products that take advantage of the latest Z-Wave hardware platform, also known as 800 Series or Gen8 Z-Wave. Z-Wave Plus v3 compatible devices include extended wireless relay range up to 1300ft/400m, three layers of encryption, faster operation, and longer battery life.

Contents

  • Module
  • DSK Label
  • User Guide

Notes

Shelley Qubino Provides A 100% Wireless Smart Home

Shelley Qubino creates innovative and affordable smart home devices for residential and business applications. Qubino, now owned by Shelley, focuses on providing Z-Wave compatible smart home solutions. Shelley Qubino devices are among the smallest Z-Wave devices in the world, allowing them to find their place in nearly any sized smart home installation. Shelley Qubino utilizes the latest Z-Wave technologies to deliver superior automation, safety, and energy efficiency to their customers without breaking down their walls or bank accounts.

Specifications

  • Manufacturer Part #: Wave i4
  • EAN: 3800235269077
  • Power Supply AC: 110 – 240 V AC, 50/60 Hz
  • Power Supply DC: No
  • Power Consumption: < 0.2 W
  • Overload Protection: No
  • Power Measurement: No
  • Working Without a Neutral Line: No
  • Number of Inputs: 4
  • Distance: Up to 40 m indoors (131 ft.), line of sight
  • Z-Wave Repeater: Yes
  • CPU: Z-Wave S800
  • Z-Wave Frequency Band: 868.4 MHz; 865.2 MHz; 869.0 MHz; 921.4 MHz; 908.4 MHz; 916 MHz; 919.8 MHz; 922.5 MHz; 919.7-921.7-923.7 MHz; 868.1 MHz; 920.9 MHz
  • Maximum Radio Frequency Power Transmitted In Frequency Band(s): < 25 mW
  • Size (H x W x D): 37 x 42 x 16 ±0.5 mm / 1.46 x 1.65 x 0.63 ±0.02 in
  • Weight: 17 g / 0.6 oz
  • Mounting: Wall Console
  • Screw Terminals Max. Torque: 0.4 Nm / 3.5 lb in
  • Conductor Cross Section: 0.5 to 1.5 mm? / 20 to 16 AWG
  • Conductor Stripped Length: 5 to 6 mm / 0.20 to 0.24 in
  • Shell Material: Plastic
  • Color: Orange
  • Ambient Temperature: -20°C to 40°C / -5°F to 105°F
  • Humidity: 30% to 70% RH
  • Warranty: 2 Year
