Sensative Square Comfort for LoRaWAN

Use LoRaWAN Technology To Monitor Climate Conditions

Easily monitor the climate conditions on your property with the Sensative Square Comfort for LoRaWAN. This multi-sensor uses LoRaWAN technology to monitor humidity and temperature in both indoor and outdoor settings. It's perfect to ensure humidity and temperature levels are optimal in various locations that are favorable to plant growth such as greenhouses or other sheltered outdoor areas. It also features NFC local management which allows it to pair with an NFC-equipped Android phone and a Wi-Fi receiver for geolocation tracking. Additionally, this LoRoWAN multi-sensor features a 750 mAh battery that lasts up to 10 years and has an IP62 rating for protection against dust and water, ensuring long-lasting use in harsh environments.

This Square Comfort Multi-Sensor can communicate with other LoRaWAN devices, plus Internet of Things (IoT) compatible devices, up to 2 miles (2 km) away, making it perfect for both indoor and outdoor applications. As a LoRaWAN compatible device, the Square Comfort Multi-Sensor can integrate with Internet of Things (IoT) platforms like Yggio to participate in smart automation or security functions. The Sensor can order a connected HVAC system to turn On/Off after a set time or when certain temperature or humidity setpoints are reached.

• Monitors temperature and humidity on your property using LoRaWAN technology (version 1.0.4)
• Helps create ideal conditions for plant growth in greenhouses or other outdoor, sheltered areas
• Low power consumption with up to 10 years of battery life, plus, it's IP62 rated for outdoor use
• Long-range 1.2 miles (2km) and includes NFC functionality for geopositioning

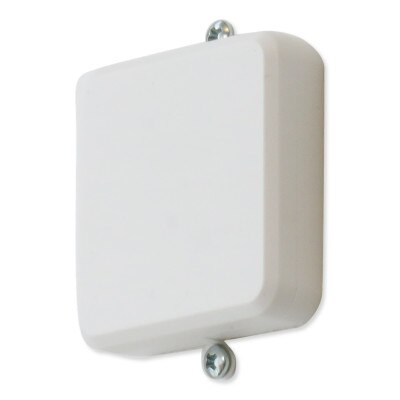

• Low profile design for easy installation includes adhesive strips or with M3 screws

Contents

• Square Comfort
• Adhesive Strips
• Manual

Sensative: Empowered By Data

Since 2015, Sensative has been an innovator in the smart home market, designing unique and elegant products to make life at home easier, safer, and smarter. With an ultra thin design, Sensative Strip Sensors can be installed discreetly and seamlessly without being obtrusive to the eye.

• Manufacturer Part #: 3302002/19
• EAN: 7350088520789
• Application: Room sensor, Tracking, Temperature/Humidity, Asset management, Cold chain data logger
• Benefits: Blend-in design, No maintenance (10 years), Simple installation & mounting, Location-aware, Long-range (2 km), Built-in data memory
• Usage: Indoor or outdoor protected use
• Sensor: Humidity, Temperature, Geolocation
• Accessories: Cloud Positioning Service
• Configuration: LoRaWAN OTAA, NFC
• Geopositioning: Wi-Fi
• Frequency: EU (868 MHz) or US (915 MHz)
• Protocols/Connectivity: LoRaWAN, NFC
• LoRaWAN Version: V 1.0.4
• LoRaWAN Class: Class A
• Temperature Accuracy: ±0.2 °C
• Humidity Accuracy: 1.8% RH
• Sensor Circuit: Sensirion SHT40
• Powered By:
• LiMnO2, 4 AH or LiMnO2, 750 mAh
• Non-replacable battery
• IP Rating: Class 62
• Operating Temperature: -4°F to 140°F (-20~+60°C)
• Dimensions: 2.3(W) x .28(D) x 2.3(H) inches (58 x 7 x 58mm)
• Warranty: 1-Year
