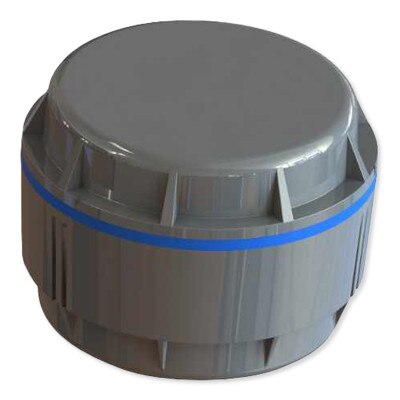

Sensative Puck Radar Sensor for LoRaWAN (Narrow Lens)

Use LoRaWAN Technology To Monitor And Detect Your Assets

Track occupancy or measure distances across a wide range of applications with the Sensative Puck Radar Sensor for LoRaWAN (Narrow Lens). Featuring an innovative design and powered by LoRaWAN technology, this sensor monitors distance, occupancy, water levels, and snow depth. It's perfect for tracking vehicles in parking lots, measuring water levels in tanks, checking waste levels in bins, or assessing snow depth. The sensor's radar beam covers an area of approximately ±30° with a range of up to 22 feet (6.8 meters), making it perfect for narrow spaces. It also has a battery life of up to 10 years and an IP67 rating, making it perfect for indoor and outdoor environments.

This Puck Radar Sensor can communicate with other LoRaWAN devices, plus Internet of Things (IoT) compatible devices, up to 6 miles (10 km) away, making it perfect for both indoor and outdoor applications. As a LoRaWAN compatible device, the Puck Radar Sensor can integrate with Internet of Things (IoT) platforms like Yggio to participate in smart automation or security functions. The Puck Radar Sensor can trigger a siren and send an alert to your mobile device when a motion is detected within its effective range, when a water tank reaches a certain height, or when a parking lot has fewer than 5 spaces open.

• Detect occupancy on your property or measure distances to objects using LoRaWAN technology (version 1.0.4)
• Narrow radar beam approximately covers ±30° with a range of up to 22ft. (6.8m)

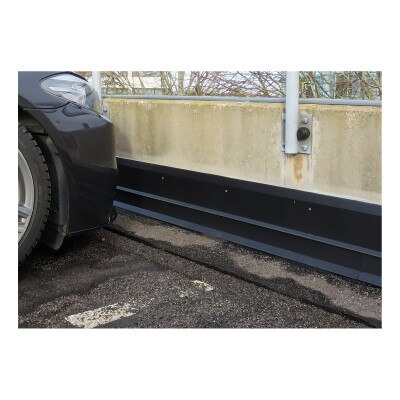

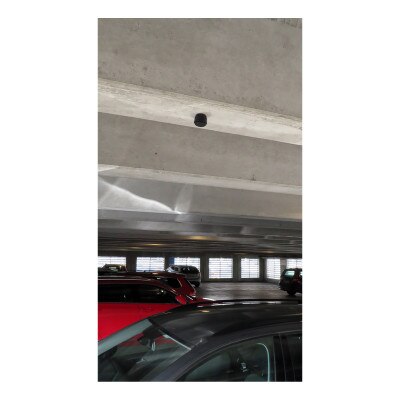

• Ideal for parking lots, waste management, silo or septic tank levels, snow level metering and more
• Up to 10 years of battery life with replaceable 2.1 Ah battery and IP67 rated for outdoor use

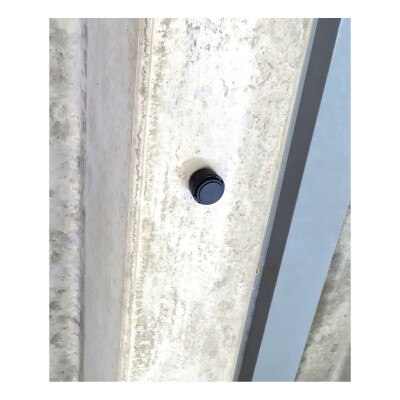

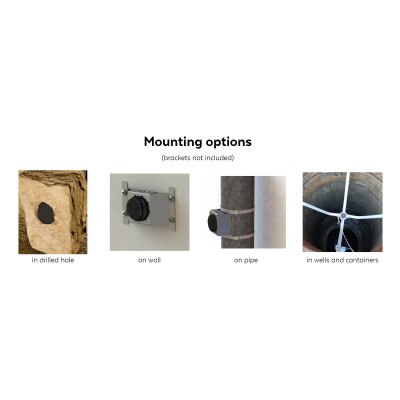

• Installs on walls or pipes or in drilled holes, wells, or containers (brackets sold separately)

Contents

• Puck Radar Sensor (Narrow Lens)
• Manual

Sensative: Empowered By Data

Since 2015, Sensative has been an innovator in the smart home market, designing unique and elegant products to make life at home easier, safer, and smarter. With an ultra thin design, Sensative Strip Sensors can be installed discreetly and seamlessly without being obtrusive to the eye.

• Manufacturer Part #: 4307002/19
• EAN: N/A
• Application: Parking space monitoring, Filling level, Waste management, Distance measurements, Occupancy, Seat monitoring, Septic Tanks
• Benefits: No maintenance (10 years), Long-range (2 km), Sturdy & waterproof, High accuracy, Location-aware, Built-in data memory
• Usage: Indoor & Outdoor
• Sensor Radar: 60 GHz, Temperature, Geolocation
• Accessories: Mounting kits, Cloud Positioning Service
• Configuration: LoRaWAN OTAA, NFC
• Geopositioning: Wi-Fi
• Frequency: US (915 MHz) or EU868 – Europe 863-870 MHz
• Protocols/Connectivity: LoRaWAN, NFC
• LoRaWAN Version: V 1.0.4
• LoRaWAN Class: Class A
• Radar Beam: Narrow lens: ±30° beam 1.8 inches (45 mm height)
• Temperature Accuracy: ±2 °C/ 3.6 °F @ 0-30 °C/32-86°F
• Sensor Circuit: Acconeer A111
• Radar Frequency: 60 GHz
• Radar Range: 22ft (6.8 m)
• Radar Accuracy: cm

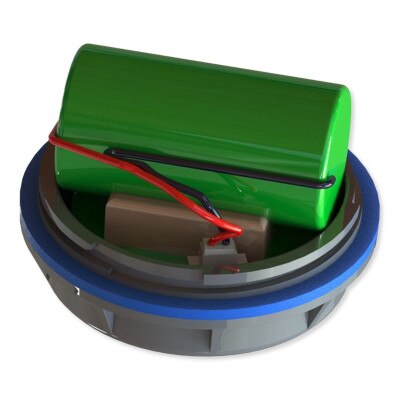

• Power: Battery, Lithium Thionyl Chloride battery, Replaceable battery, 2.1 Ah
• IP Rating: Class 67
• Operating Range: -22°F to 176°F (-30~+80 °C)
• Weight: 43g (Narrow 30° lens)
• Height: 1.8 inches, 45mm (Narrow 30° lens)
• Diameter (mm): 45
• Warranty: 1-Year
