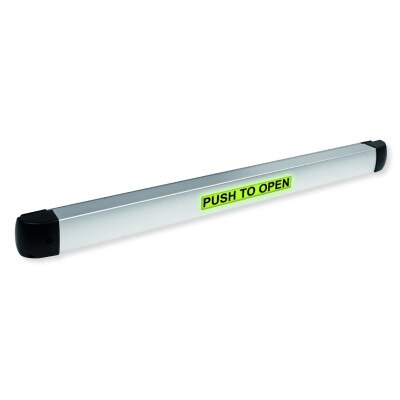

Seco-Larm Enforcer Illuminated Push-To-Exit Bar

SKU: SESD961A36SLQ

Usually ships in 3-5 days.

$179.17

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Details

Easily See The Location Of The Exit

Add reliable and stylish access control to your building with the Seco-Larm Enforcer Illuminated Push-To-Exit Bar. This illuminated push bar is designed to allow egress from inside a protected area that's normally locked by an external electric strike or maglock. It features an illuminated LED to make it easy to see its status, while the bar can be part of an access control system, function in stand-alone mode, and can be locked open by a key. This push-to-open bar also has customizable features such as the buzzer, LED function and colors, and output timing.

  • Provides on-door egress with an illuminated LED that is easy to see
  • Can be connected to an access control system or work as a stand-alone unit
  • Ideal for 36" doors and can be cut for smaller doors (minimum 23-5/8")
  • LED colors: red in standby mode, green when triggered (programmable red/green/blue by the access control panel)
  • Unlock status indicated by a built-in buzzer

Sample Application

Contents

  • Illuminated Push-To-Open Bar
  • (5) Machine Screws
  • Dogging Key
  • Keyhole Cover
  • (2) Self-Stick Wiring Anchors
  • Manual

Seco-Larm Security Products

So many places and things to protect; so many ways to protect them; one partner: Seco-Larm. Under the Enforcer trademark, Home Controls offers an impressive line of Seco-Larm security products, ranging from simple switches to some of the most sophisticated alarm devices. Whether for physical security, CCTV, access control, RF equipment, or vehicle security, Seco-Larm is the premier choice. Seco-Larm gives its customers such an extensive range of dependable, cost-effective security products with a full program of service and support.

Specifications

  • Manufacturer Part #: SD-961A-36SLQ
  • UPC: 676544021520
  • Operating Voltage: 12/24 VDC
  • Power Consumption: 180mA@12VDC, 140mA@24VDC (max.)
  • Contact Load: ≤5A@230VAC
  • Outputs: NO/NC/COM x2
  • Trigger Duration: 0.5 to 60 seconds (adjustable) or dogged open
  • Buzzer: Up to 92dB (adjustable)
  • LED Indicator:
    • Colors: Stand-alone red/green, Controlled red/green/blue
    • Size: 8-1/4"x1" (210x25 mm)
  • Door Width: 36" (91.4cm), minimum 23-5/8" (60cm)
  • Operating Temperature: 32° to 150° F (0° to 70° C)
  • Dimensions: 33-7/16"x2-3/8"x2-3/8" (850x61x61 mm)
  • Weight: 4-lb 10-oz (2.1kg)
  • Certifications: CE, RoHS
  • Warranty: 1 Year

Downloads

»Seco-Larm SD-961A-36SLQ Enforcer Illuminated Push-To-Exit Bar Spec Sheet (.pdf)
»Seco-Larm SD-961A-36SLQ Enforcer Illuminated Push-To-Exit Bar Installation Manual (.pdf)
