  • Seco-Larm Enforcer HDMI Extender with KVM, 1080p

Seco-Larm Enforcer HDMI Extender with KVM, 1080p

SKU: SEMVEAH1E101UQ

Usually ships in 3-5 days.

$143.95

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Details

Use Cat6/7 Cable To Extend Your 1080p HDMI Signal

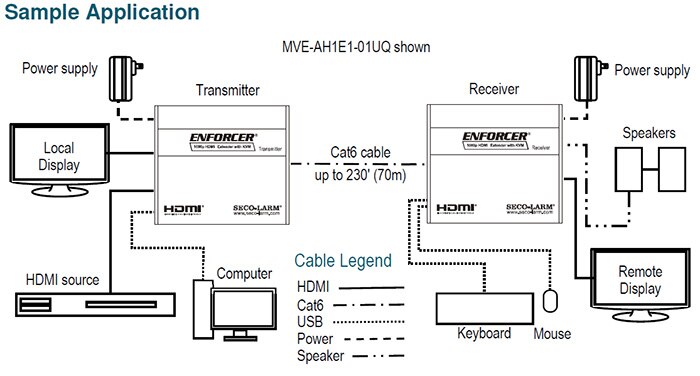

Extend the range of HDMI signals by sending video and audio over a single Cat6/7 cable with the Seco-Larm Enforcer HDMI Extender with KVM, 1080p. This range extender will allow you to view AV signals, or remotely operate a device, such as a computer or NVR/DVR, from an increased distance with zero latency transmission over a single Cat6/7 cable (up to 230 feet). Additionally, it can transmit USB 2.0 signals and supports point to point connections and KVM functionality, which provides a way to control multiple computers from a single keyboard, mouse, and monitor. The Extender also features lighting protection, surge protection, and ESD protection, all of which ensure your electronic devices will be safe and well protected against possible surges and electromagnetic energy that could cause damage.

  • Extends HDMI and USB 2.0 signals up to 230ft over a single Cat6/7 cable
  • Supports resolutions from 800x600 to 1080p with zero signal loss
  • Supports HDMi loop-out and KVM functionality
  • Includes Power Adapter and IR hardware
  • Status LEDs indicate power and KVM status

Contents

  • HDMI Transmitter
  • HDMI Receiver
  • USB Cable
  • (2) Power Adapters
  • Manual

Seco-Larm Security Products

So many places and things to protect; so many ways to protect them; one partner: Seco-Larm. Under the Enforcer trademark, Home Controls offers an impressive line of Seco-Larm security products, ranging from simple switches to some of the most sophisticated alarm devices. Whether for physical security, CCTV, access control, RF equipment, or vehicle security, Seco-Larm is the premier choice. Seco-Larm gives its customers such an extensive range of dependable, cost-effective security products with a full program of service and support.

Specifications

  • Manufacturer Part #: MVE-AH1E1-01UQ
  • UPC: 676544021810
  • Input Video Signal: 3.3V
  • Input DDC Signal: 5Vp-p (TTL)
  • Maximum Signal Link Range: 230ft (70m)
  • Video Formats Supported: High-speed HDMI, HDCP 1.4
  • Audio Formats Supported: PCM, LPCM, DTS-HD, DTS-Audio
  • Output Video: HDMI
  • Resolutions Supported: 1080p,1080i, 720p, 576p, 576i, 480p, 480i, 1920x1080, 1680x1050, 1440x900, 1366x768, 1280x960, 1280x720, 1024x768, 800x600
  • Range (Cat6/6A/7): Up to 230ft (70m)
  • Video Input Connector: HDMI Type A 19-pin female
  • Maximum Input Cable Length: 26ft (8m) AWG24
  • Video Output Connector: HDMI Type A 19-pin female
  • Maximum Output Cable Length: 26ft (8m) AWG24
  • Cat6 Wiring Standard: T-568B
  • Operating Voltage: 5VDC
  • Power Supply: 5VDC@1A
  • ESD Protection: ±8kV (air-gap discharge), ±4kV (contact discharge)
  • Current Draw: Transmitter & Receiver: <2.5W
  • Operating Humidity: 0 to 90%
  • Operating Temperature: -4° to 140° F (-20° to 60° C)
  • Dimensions: 2-15/16 x 3-3/8 x 3/4 inches (74x85x19 mm)
  • Weight: 6.3-oz (180g)
  • Credentials: FCC, CE, RoHS
  • Warranty: 2 Years
