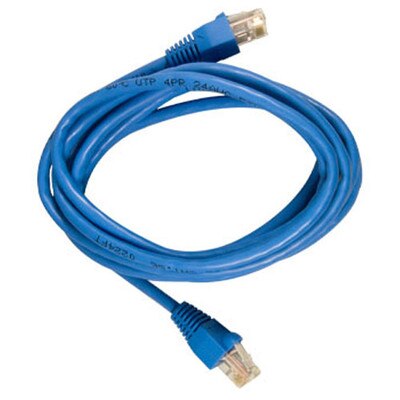

On-Q/Legrand Cat6 Patch Cable

Please select option to view availability

SKU: OQAC36xxBEV1
$3.95 - $34.95

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Snagless For Use In High Density Applications

Designed to fully support 10 Gigabit Ethernet speeds, this 250MHz Cat6 Patch Cable exceeds 750 insertion cycles and meets Cat6 performance patch cable specifications. The cable also features a low profile with a snagless overmold to prevent the insertion tab from catching onto nearby cables.

Start With A Strong Foundation

From innovative enclosures to high-performance connection outlets, On-Q products guarantee a smooth installation. Your home is a refuge from the world, a sanctuary from the elements, a place you can relax in comfort. Maximize your home living experience with innovative solutions from On-Q/Legrand. Let your family enjoy the convenience they want with the added peace-of-mind they need. On-Q/Legrand is changing the definition of home living.

Technical Details

  • Manufacturer Part #: AC36xx-BE-V1
  • Color: Blue
  • Pair Count: 4
  • Termination: 8P8C, contact area plated 50 microinches hard gold over 100 microinches of nickel
  • Type: Cat 6 Patch Cable
  • Housing Material: Flame-Retardant Polycarbonate
  • Input Plug Type: RJ45 Male
  • Flammability Rating: UL 94V-0
  • Material: Fire retardant PVC compound
  • Supported Standards: Verified to TIA/EIA-568-B.2-1 ISO/IEC 11801
  • Wire Gauge: 24 AWG
  • Diameter: 0.25 inches (6.4 mm)
  • CSA Standard: Yes
  • UL Standard: Yes
  • Warranty: 15 Year
