  • Seco-Larm ENFORCER Outdoor Stand-Alone/Wiegand Keypad with Proximity Reader

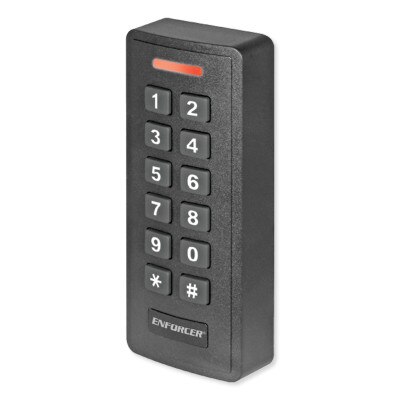

Seco-Larm ENFORCER Outdoor Stand-Alone/Wiegand Keypad with Proximity Reader

SKU: SESK2612SPQ

Usually ships in 3-5 days.

$110.95

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Details

Enter A pin code Or Wave Your Card To Enter The Property

Easily enter your property without having to use keys with the Seco-Larm ENFORCER Outdoor Stand-Alone/Wiegand Keypad with Proximity Reader. This keypad provides access via pin codes (up to 4 to 6 digits) or proximity cards and can be used as a Wiegand Output Reader or Controller. It supports up to 1,000 users (998 users and 2 duress users) and comes with a built-in tamper alarm and external alarm output, backlit keypad, multicolor status LED, and an egress input to allow users to easily exit the property without using a card. You won't need an external programmer since this device allows you to program it directly using the keypad, and by using the Wiegand output you'll be able to easily transfer users to other devices. This keypad is compatible with PR-K1S1-A Proximity Cards and PR-K1K1-AQ Proximity Keyfobs (both sold separately), and is built for durable use since it's constructed with an epoxy-filled black ABS plastic housing that is IP66 rated as weatherproof.

  • Unlock a door with a user code (4 to 6 digits) or proximity card/keyfob
  • Supports up to 1,000 users (998 users and 2 duress users)
  • Can serve as either Wiegand reader or controller, output and input is selectable from 26 to 37 bits
  • Backlit keypad and multicolor status LED
  • Black ABS plastic housing is IP66 rated (weatherproof)

Contents

  • Keypad
  • Security Wrench
  • Diode
  • (2) Mounting Screws
  • (2) Plastic Screw Anchors
  • Master Add Card*
  • Master Delete Card*
  • Manual

NOTE: *User proximity cards or key fobs sold separately.

Seco-Larm Security Products

So many places and things to protect; so many ways to protect them; one partner: Seco-Larm. Under the Enforcer trademark, Home Controls offers an impressive line of Seco-Larm security products, ranging from simple switches to some of the most sophisticated alarm devices. Whether for physical security, CCTV, access control, RF equipment, or vehicle security, Seco-Larm is the premier choice. Seco-Larm gives its customers such an extensive range of dependable, cost-effective security products with a full program of service and support.

Specifications

  • Manufacturer Part #: SK-2612-SPQ
  • UPC: 676544020479
  • IP Rating: Weatherproof IP66
  • Operating Voltage: 9 to 18 VDC
  • Current Draw:
    • Standby: 40mA@12VDC
    • Active: 105mA@12VDC (max.)
  • Output:
    • Form C: 2A@12VDC
    • Alarm: 2.5A@12VDC
    • Wiegand: 26 to 37 bits, PIN output bits – 4, 8, or 10
  • Input:
    • Egress: N.O. Ground
    • Door Sensor: N.C. Ground
    • Wiegand: 26 to 37 bits, PIN input bits – 4, 8, or 10
  • Card Type: EM 125kHz
  • Enclosure / IP Rating: Black ABS plastic
  • Operating Temperature: -40° to 140° F (-40°~60° C)
  • Operating Humidity: 10 to 90% non-condensing
  • Dimensions: 1-15/16"x 4-3/4" x15/16" (49x120x24 mm)
  • Weight: 5.8-oz (165g)
  • Certifications: FCC, CE, RoHS
  • Warranty: 1 Year

Downloads

»Seco-Larm SK-2612-SPQ ENFORCER Outdoor Stand-Alone/Wiegand Keypad with Proximity Reader Spec Sheet (.pdf)
»Seco-Larm SK-2612-SPQ ENFORCER Outdoor Stand-Alone/Wiegand Keypad with Proximity Reader Installation Manuel (.pdf)
