  • Seco-Larm Enforcer Access Control Keypad, Mullion-Style with Proximity Reader

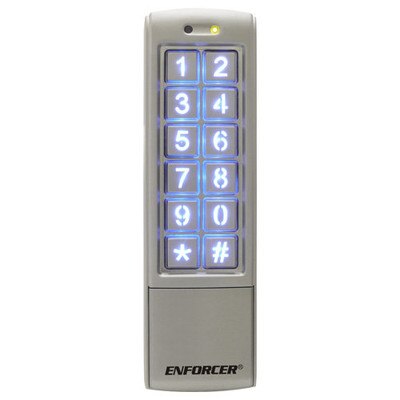

Seco-Larm Enforcer Access Control Keypad, Mullion-Style with Proximity Reader

SKU: SESK2323SPQ

Usually ships in 3-5 days.

$125.76

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

More Products by Seco-Larm

Details

With Built-In Proximity Card Reader

  • 1,010 Users (Output #1: 1,000 users, Output #2: 10 users).
  • 2 Form C relay outputs.
  • Each relay has programmable output time from 1~99 seconds or toggle.
  • Output #2 can be programmed for use with a doorbell.
  • 2 Egress inputs and 1 door sensor input.
  • Backlit keys for easy nighttime use.
  • 2 Multi-colored status LEDs
  • All features are programmed directly from the keypad – no need for an external programmer.
  • EEPROM protects programmed information in case of power loss.
  • Optical tamper sensor for added security.
  • Circuitry is potted with epoxy for outdoor use.
  • Weatherproof (IP65).
  • Rugged aluminum construction.
  • Built-in proximity card reader.
  • 3 Programmable access modes for Output #1: Card Only, Card or Code, and Card with Code.
  • Output #2 may have either a card or a code programmed for each user.

Seco-Larm Security Products

So many places and things to protect; so many ways to protect them; one partner: Seco-Larm. Under the Enforcer trademark, Home Controls offers an impressive line of Seco-Larm security products, ranging from simple switches to some of the most sophisticated alarm devices. Whether for physical security, CCTV, access control, RF equipment, or vehicle security, Seco-Larm is the premier choice. Seco-Larm gives its customers such an extensive range of dependable, cost-effective security products with a full program of service and support.

Specifications

Technical Details

  • Manufacturer Part #: SK-2323-SPQ
  • Type: Mullion-Style Weatherproof Digital Access Keypads
  • Number of user codes: Up to 1,010
  • Operating voltage: 12~15 VDC
  • Current drain:
    • Stand-by: 40mA@12VDC
    • Active: 70mA@12VDC
  • Relay outputs (2): 1A@30VDC, Form C, NO/COM/NC
  • Egress inputs: 2, N.O. Ground
  • Door sensor input: N.C. Ground
  • Tamper sensor: Optical
  • Operating temperature: -4° ~122° F (-20° ~50° C)
  • Keypad LED life: 60,000 hours (over 6.8 years)
  • Weight: 11-oz (312g)
  • Proximity reader frequency: 125kHz
  • Proximity reader distance: 1-15/16" (50mm)
  • Dimensions: 6"x1-3/4"x15/16" (152x44x24 mm)
  • Warranty: 1 Year

Downloads

»Seco-Larm Enforcer Mullion-Style Outdoor Digital Access Keypad Owner’s Manual (.pdf)
»Seco-Larm Enforcer Mullion-Style Outdoor Digital Access Keypad Quick Start Guide (.pdf)
