Seco-Larm Enforcer Access Control Keypad, Outdoor with Proximity Reader

All Features Are Programmed Directly From The Keypad

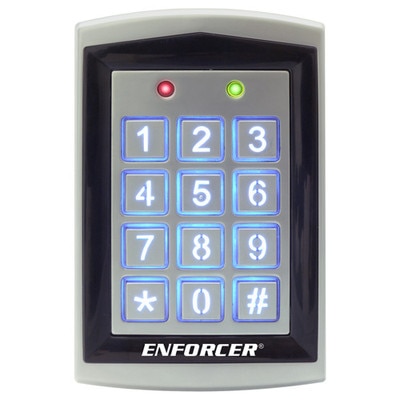

The Seco-Larm Weatherproof Outdoor Digital Access Keypad is standalone with a built-in proximity card reader. All keypad features are programmed directly from the keypad and it is able to mount to a single-gang back box. It is designed with backlit keys for easy night time use.

• Built-in proximity card reader.
• 3 Programmable access modes for Output #1: Card Only, Card or Code, and Card with Code.
• Output #2 may have either a card or a code programmed for each user.
• 12~24 VDC operation.
• 1,010 Users (Output #1: 1,000 users, Output #2: 10 users).
• 2 Form C relays, each rated 1 Amp @ 30VDC.
• Each relay has programmable output time from 1~99 seconds or toggle.
• Output #2 can be programmed for use with a doorbell.
• 2 Egress inputs and 1 door sensor input.
• Backlit keys for easy nighttime use.
• Two multi-colored status LEDs.
• Able to mount to a single-gang back box.
• All features are programmed directly from the keypad – no need for an external programmer.
• EEPROM memory protects programmed information in case of power loss.
• Optical tamper for added security.
• Circuitry is potted with epoxy for outdoor use.
• IP65 weatherproof rating, rugged aluminum construction.

Seco-Larm Security Products

So many places and things to protect; so many ways to protect them; one partner: Seco-Larm. Under the Enforcer trademark, Home Controls offers an impressive line of Seco-Larm security products, ranging from simple switches to some of the most sophisticated alarm devices. Whether for physical security, CCTV, access control, RF equipment, or vehicle security, Seco-Larm is the premier choice. Seco-Larm gives its customers such an extensive range of dependable, cost-effective security products with a full program of service and support.

• Type: Sealed Housing Weatherproof Outdoor Digital Access Keypad
• Number of user codes: Up to 1,010
• Operating voltage: 12~24 VDC
• Current drain:
• Stand-by: 40mA@12VDC
• Active: 70mA@12VDC
• Relay outputs (2): 1A@30VDC, Form C, NO/COM/NC
• Egress inputs: 2, N.O. Ground
• Door sensor input: N.C. Ground
• Tamper sensor: Optical
• Operating temperature: -4° ~122° F (-20° ~50° C)
• Keypad LED life: 60,000 hours (over 6.8 years)
• Proximity reader frequency: 125kHz
• Proximity reader distance: 1-15/16" (50mm)
• Dimensions: 6"x1-3/4"x15/16" (152 x 44 x 24 mm)
• Warranty: 1 Year
