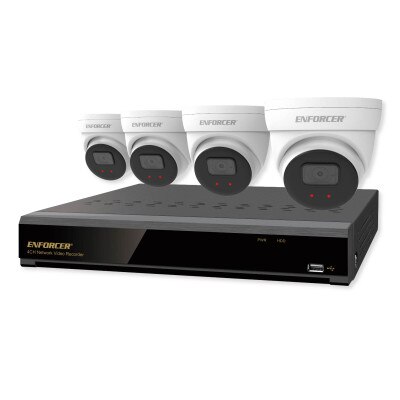

Seco-Larm ENFORCER NVR & Camera Kit with 4K 4-Channel NVR, 4 IP 5MP Turret Cameras, 2TB HDD

Build Your Surveillance Network With A Smart NVR

Build an adaptable and intelligent surveillance system with the Seco-Larm ENFORCER NVR and Camera Kit, 4K 4-Channel NVR + 4 IP 5MP Cameras + 2TB HDD! This complete surveillance kit includes a Seco-Larm ENFORCER 4K Network Video Recorder and four (4) Seco-Larm ENFORCER IP 5MP 2.8mm Turret Cameras to provide everything you need to set up an entire surveillance system on your property. The ENFORCER 4K network video recorder hosts and records live video from connected IP cameras in up to 8MP / 4K resolution and utilizes advanced AI powered functions to improve surveillance and smart security tasks. 1 SATA port is available for connecting the NVR to other NVRs to expand the size of your surveillance network or to separate memory storage units to save recorded footage. Each ENFORCER IP 5MP 2.8mm Fixed Turret Cameras captures footage in up to 2880 x 1620 (5MP) resolution at 30 FPS and can be installed in both indoor and outdoor settings. The camera offers TWDR (true wide dynamic range), Digital Noise Reduction (3DNR), and smart IR technology for superior image quality in most lighting settings, and supports ENFORCER NVR AI functions for smart surveillance and playback applications.

• Surveillance kit includes network video recorder and four 5MP IP fixed lens turret cameras
• Network Video Recorder supports up to four simultaneous 8MP/4K video streams and playback
• Review recorded footage at adjustable resolutions and FPS (720p@120FPS to 4K@30FPS)
• AI functions, i.e. human and vehicle recognition, heat mapping, and more provide advanced security and playback capabilities
• VGA and HDMI outputs support 4K resolution with compatible cables
• 2.8mm Fixed Lens IP Turret Camera captures footage at up to 5MP (2880 x 1620) @30FPS
• Smart IR technology provides night vision up to 98 feet and Digital WDR ensures clear images in high contrast areas
• Conformant with ONVIF profiles G, S, and T and H.265, H.264 and MJPEG encoding

NVR

The 4-Channel 4K NVR supports up to 4K resolution (3840 x 2160) at 30fps and can record simultaneous HD streams at 48 Mbps across all four channels. Built-in AI technology assists live surveillance and during review of recorded footage to improve the capabilities of your security and/or surveillance network. Features such as perimeter intrusion or line crossing can trigger connected alarms and improve responsiveness of security or emergency services. Face detection, vehicle and object detection, and crowd density and heat mapping features improve playback review and shorten the amount of time spent scrubbing footage for particular results. If a EV-N2806-2W4WQ 8MP Turret IP Camera is connected to the NVR, the camera's facial recognition and license plate detection capabilities can be utilized by the NVR.

The 4-Channel 4K NVR has 2 terabytes of local storage and connects to the Internet to provide remote management and access to the system from most common web browsers and the SL Vision mobile app. Cameras can auto-enroll into the NVR over built-in PoE+ connections, making installation quick and simple. The network video recorder is capable of supporting additional storage by replacing the included SATA HDD with a larger storage drive, up to 10 terabytes.

Camera

The IP 5MP 2.8mm Fixed Lens Turret Camera captures high definition video in virtually any lighting setting, including color in near-total darkness and monochrome in absolute darkness. This camera features WDR technology that eliminates image saturation and balances high contrast lighting. The camera supports ENFORCER AI powered functions, such as vehicle or face detection and line crossing, to improve security responsiveness in live surveillance applications as well as shorten the amount of time reviewing footage.

SL Vision App

The SL Vision app for iOS and Android provides you with a seamless and easy-to-use solution at your fingertips for all your video surveillance needs. With the SL Vision app and your ENFORCER® NVR, you can easily connect to your NVR from anywhere through your mobile device to view live feeds from your cameras, review recorded footage, and save video clips or snapshots of what you have seen with just a few taps.

Installation Details

The Seco-Larm ENFORCER NVR can be placed on a tabletop surface or rack mounted. Connect any IP cameras to the recorder via ethernet cables. All ethernet ports provide Power over Ethernet (PoE) for simpler cable management. Once the connections are set up, use the QR Code and Wizard Install tool to quickly set up your surveillance system.

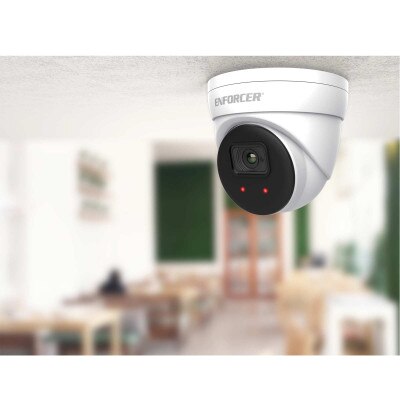

The Seco-Larm ENFORCER Fixed Lens Turret Camera can be installed in outdoor or indoor settings and comes with mounting hardware for easy installation. The camera is primarily powered through Power over Ethernet connection (PoE) and can also be powered with a 12VDC power supply, sold separately.

Contents

• NVR
• Mouse
• Power Supply
• 3 ft HDMI® Cable
• 3 ft Internet Cable
• (4) Screws for 2.5" HDD
• (4) Cameras
• (4) Camera Mounting Templates
• (4) Weatherproof Connectors
• (12) Mounting Screws
• (2) Manuals

Seco-Larm Security Products

So many places and things to protect; so many ways to protect them; one partner: Seco-Larm. Under the Enforcer trademark, Home Controls offers an impressive line of Seco-Larm security products, ranging from simple switches to some of the most sophisticated alarm devices. Whether for physical security, CCTV, access control, RF equipment, or vehicle security, Seco-Larm is the premier choice. Seco-Larm gives its customers such an extensive range of dependable, cost-effective security products with a full program of service and support.

• Manufacturer Part #: DRN-K104-04
• UPC: 676544022855

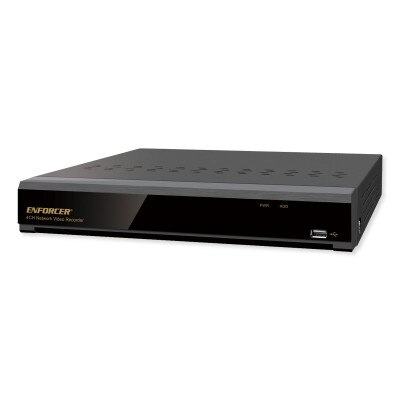

Seco-Larm ENFORCER 4K Network Video Recorder, 4-Channel, 2TB HDD (DRN-104-2TB)

Video

• Resolution: 8MP (4K), 5MP, 2MP (1080p), 1.3MP (960p), 1MP (720p)
• Incoming Bandwidth: 50Mbps
• Outgoing Bandwidth: 48Mbps
• HDMI Output: 1024 x 768, 1280 x 720, 1280 x 1024, 1440 x 900, 1920 x 1080, 2560 x 1440, 3840 x 2160 (4K)
• VGA Output: 1024 x 768, 1280 x 720, 1280 x 1024, 1440 x 900, 1920 x 1080
• Frame Rate: 4K: Up to 30FPS, 4MP: Up to 60FPS, 2MP: Up to 120FPS
• Compression: H.265+, H.265, H.264+, H.264
• AI: Support
• Playback Functions:
• Fast forward / backward (2x, 4x, 8x, 16x)
• Slow forward (1/2x, 1/4x, 1/8x, 1/16x)

User Interface:

• Local: UI5.0
• Web: IE10/11, Safari V12.1 above, Firefox V.52 above, Google Chrome V.57 above, Edge V.79 above

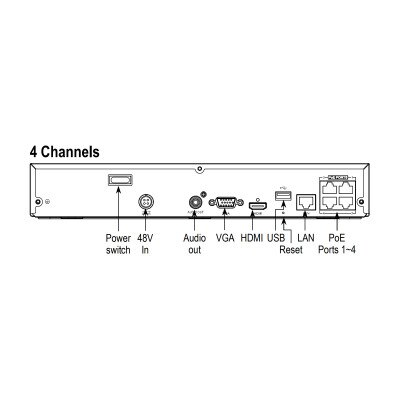

Auxiliary Interface

• HDMI Output: 1 Output
• VGA Output: 1 Output
• PoE Input: 4 x RJ45
• USB: USB 2.0 x 1 front & 1 rear
• Alarm I/O: None
• Included HDD: 2TB SATA
• Internal Storage Capacity: 1 SATA HDD, up to 10TB

General

• Power Supply: 48VDC@1.2A
• Power Consumption: 5W
• Dimensions (WxDxH): 8-15/16" L x 11-11/16" W x 2-1/16" H (227 x 300 x 53 mm)
• Operating Temperature: 32 to 104°F (0 to 40°C)
• Humidity: Less than 90% Relative Humidity
• Ratings and Certifications: FCC
• Warranty: 3 Years

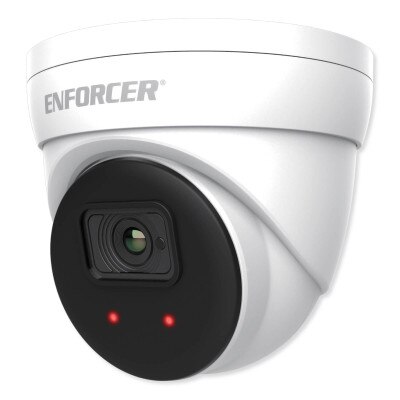

Seco-Larm ENFORCER IP 5MP 2.8mm Turret Camera (EV-N2506-2W4WQ)

Camera

• Sensor: 1/2.7" 5MP SmartSens CMOS
• Effective Pixels: 2880(H) x 1620(V)
• Scanning System: Progressive Scan
• Electronic Shutter Speed: Auto, Manual; 1/5 s to 1/20,000 s
• Minimum Illumination: Color: 0.1 lux at F1.2 (AGC on), 0 Lux with IR on
• IR Distance: Distance up to 98' (30m)
• IR On/Off Control: Auto, Manual
• IR LEDs: 2 x 850nm LEDS

Lens

• Lens Type: Fixed
• Focal Length: 2.8mm
• Maximum Aperture: F1.6
• Field of View:
• Horizontal: 110°
• Vertical: 58°
• Diagonal: 133°

Video

• Compression: H.265, H.264
• Streaming Capability: Triple (3) streams
• Resolution: 2880 x 1620, 2560 x 1440, 2304 x 1296, 1080p (1920 x 1080), 720p (1280 x 720)
• Bit Rate Control: CBR/VBR
• Bit Rate:
• Main Stream: 256 to 8192 Kbps
• Sub Stream: 128 to 4096 Kbps
• Mobile Stream: 8 to 1536 Kbps
• Backlight: Disable (default), BLC, HLC, True WDR
• White Balance: Auto
• Gain Control: Auto
• Noise Reduction: 3D DNR
• Smart IR: Support
• Image Rotation: 0", 180"
• Mirror: Disable, vertical, horizontal, all
• Privacy: Masking Off, on (4 areas, rectangle)
• Region of Interest: Support

Network

• Ethernet: RJ45
• Protocol: TCP/IP, HTTP, DHCP, DNS, DDNS, RTP, RTSP, SMTP, NTP, UPnP, SNMP, HTTPS, FTP
• Interoperability: ONVIF® profiles G, S, and T conformant
• Auto Register: Support
• Streaming Method: Multicast
• Max. User Access: 7
• Web Viewer: IE, Chrome, Firefox, Edge
• On-Board Storage: Built in memory slot, Supports up to 512GB MicroSD/SDHC/SDXC

Electrical

• Power Supply: 12VDC, or PoE (IEEE 802.3af Class 0)
• Power Consumption: <6W

Environmental

• Operating Temperature: -40 to 131° F (-40 to 55° C)
• Operating Humidity: Less Than 95% RH
• Storage Temperature: -40 to 140° F (-40 to 60° C)
• IP Rating: IP66 Weatherproof

Construction

• Casting: Metal
• Dimensions: (Diameter) 3 15/16"x 3 9/16" (Ø100 x 90 mm)
• Weight: 13.05-oz (370g)
• Ratings and Certifications: CE, FCC, RoHS, ONVIF® Profiles G, S, & T conformant, NDAA Compliant
