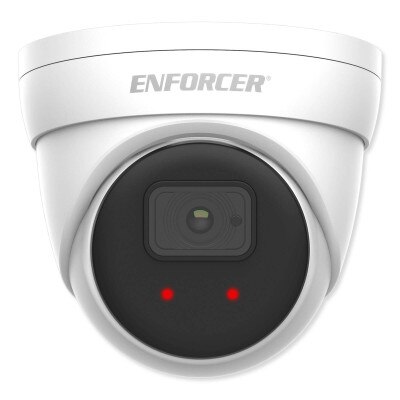

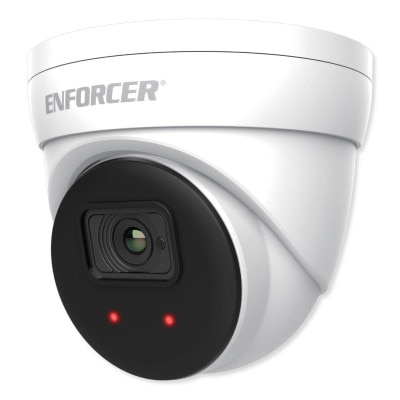

Seco-Larm ENFORCER 4K (8MP) IP Turret Camera, 2.8mm Fixed Lens
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
Details
Capture High Definition Indoor Or Outdoor Activity
See what's happening on your property in high definition 4K footage with the Seco-Larm ENFORCER 4K (8MP) IP Turret Camera, 2.8mm Fixed Lens. This indoor/outdoor IP surveillance camera captures both day and night activity using a maximum resolution of 3840 x 2160 @ 30FPS. It provides excellent picture quality because it features True Wide Dynamic Range (WDR), Digital Noise Reduction (3DNR), and True Day/Night functionality with ICR capabilities. With all of these features combined, you can expect clear and optimized images 24/7. This camera also has two built-in IR LEDs with a range of 98 feet that adjust IR strength to conditions, plus its 126°wide angle fixed lens ensures the camera has a full view of your property. With an IP66 weatherproof rating, this camera will function extremely well in various outdoor settings and because it has built-in standard PoE there will be less necessary cable connections, making installation easier.
- Captures activity in 2160p, 30fps resolution with 126°wide angle fixed lens
- Progressive scan system keeps subjects in focus for enhanced footage
- Triple Stream Encoding: H.265, H.264 and MJPEG
- Optional PoE connection simplifies installation by reducing necessary wires
- MicroSD card slot provides option for backup memory storage
- Weatherproof design (IP66 rated)
The Seco-Larm ENFORCER 4K (8MP) IP Turret Camera, 2.8mm Fixed Lens comes with AI functions that will ensure the best security surveillance for any home or business property. AI functions include face detection, human and vehicle detection, perimeter intrusion detection, line crossing detection, stationary object detection, crowd density detection, queue length detection, cross counting, and a heat map.
Installation Details

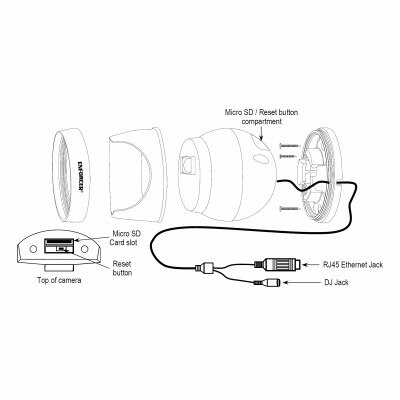

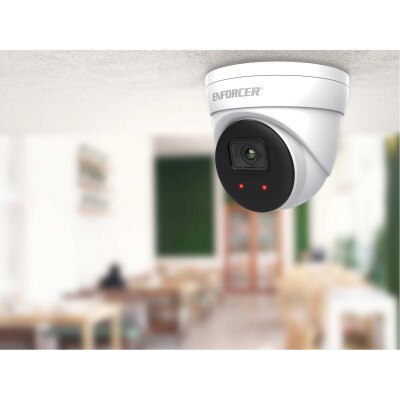

The Camera is powered by a 12VDC or PoE connection and mounts to a ceiling or wall using the included hardware.
Seco-Larm SL Vision App (iOS or Android)
The Seco-Larm SL Vision app allows you to seamlessly connect to your Enforcer NVR using your smartphone or tablet where you'll be able to view live feeds from your cameras, save video clips and snapshots, and access footage that's been recorded. The SL Vision app is an easy-to-use solution that provides both security and convenience when managing your Enforcer NVR from a remote location. All it takes is a mobile device and a few taps on the screen and all of your video surveillance needs are taken care of. It's that intuitive!
Contents
- Turret Camera
- Mounting Template
- (3) Mounting Screws
- Weatherproof Connector
- Manual
Notes
- Do not cut DC jack or RJ45 jack as warranty will be voided.
- Do not open the camera case – there are no serviceable parts.
Seco-Larm Security Products
So many places and things to protect; so many ways to protect them; one partner: Seco-Larm. Under the Enforcer trademark, Home Controls offers an impressive line of Seco-Larm security products, ranging from simple switches to some of the most sophisticated alarm devices. Whether for physical security, CCTV, access control, RF equipment, or vehicle security, Seco-Larm is the premier choice. Seco-Larm gives its customers such an extensive range of dependable, cost-effective security products with a full program of service and support.
Specifications
- Manufacturer Part #: EV-N2806-2W4WQ
- UPC: 676544022497
- Image Sensor: 1/2.8" 8MP Sony CMOS
- Effective Pixels: 3840(H) x 2160(V)
- Scanning System: Progressive scan
- Electronic Shutter Speed: Auto, Manual; 1/5 s to 1/20,000 s
- Minimum Illumination:
- Color: 0.005Lux at F1.2 (AGC on)
- 1 Lux with IR on
- IR Distance: Distance up to 98' (30m)
- IR On/Off Control: Auto, manual
- IR LEDs: 2 x 850nm LEDS
- Lens Type: Fixed
- Focal Length: 2.8mm
- Maximum Aperture: F1.6
- Field of View:
- Horizontal: 105°
- Vertical: 56°
- Diagonal: 126°
- Compression: H.265, H.264
- Streaming Capability: Triple (3) streams
- Resolution: 2880 x 1620, 2560 x 1440, 2304 x 1296, 1080p (1920 x 1080), 720p (1280 x 720)
- Bit Rate Control: CBR/VBR
- Bit Rate:
- Main stream: 256 to 8192 Kbps
- Sub stream: 128 to 4096 Kbps
- Mobile stream: 8 to 1536 Kbps
- AI Functions:
- Face detection
- Human & vehicle detection
- Perimeter intrusion detection
- Line crossing detection
- Stationary object detection
- Cross counting
- Heat map
- Crowd density detection
- Queue length detection
- Backlight: Disable (default), BLC, HLC, True WDR
- White Balance: Auto
- Gain Control: Auto
- Noise Reduction: 3D DNR
- Smart IR: Support
- Image Rotation: 0", 180"
- Mirror: Disable, vertical, horizontal, all
- Privacy Masking: Off, on (4 areas, rectangle)
- Region of Interest: Support
- Ethernet: RJ45
- Protocol: TCP/IP, HTTP, DHCP, DNS, DDNS, RTP, RTSP, SMTP, NTP, UPnP, SNMP, HTTPS, FTP
- Interoperability: ONVIF® profiles G, S, and T conformant
- Auto Register: Support
- Streaming Method: Multicast
- Max. User Access: 7
- Web Viewer: IE, Chrome, Firefox, Edge
- On-Board Storage:
- Built in memory slot
- Supports up to 512GB MicroSD/SDHC/SDXC
- Power Supply: 12VDC, or PoE (IEEE 802.3af Class 0)
- Power Consumption: <6W
- Operating Conditions:
- -40 to 131°F (-40 to 55°C)
- Less Than 95% RH
- Storage Conditions: -40 to 140°F (-40 to 60°C)
- IP Rating: IP66 Weatherproof
- Casting: Metal
- Dimensions: ø3-15/16" x 3-9/16" (ø100 x 90 mm)
- Weight: 13.05-oz (370g)
- Certifications: CE, FCC, RoHS
- ONVIF®: Profiles G, S, and T conformant
- NDAA: Compliant
- Warranty: 3 Years
