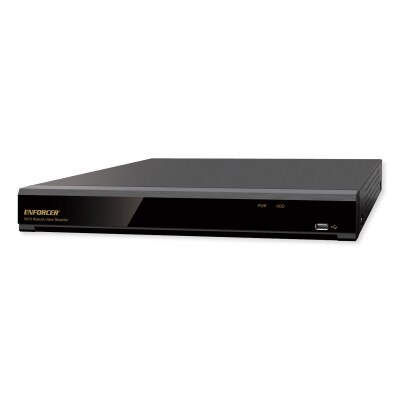

Seco-Larm ENFORCER 4K Network Video Recorder, 16-Channel, 4TB HDD
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
Details
Enhance Your Surveillance Network With A Smart NVR
Build an adaptable and intelligent surveillance system with the Seco-Larm ENFORCER 4K Network Video Recorder, 16-Channel, 4TB HDD! This network video recorder hosts and records live video from connected IP cameras in up to 8MP / 4K resolution and utilizes advanced AI powered functions to improve surveillance and smart security tasks. 2 SATA ports are available for connecting the NVR to other NVRs to expand the size of your surveillance network or to separate memory storage units to save recorded footage. Additional design choices such as PoE ports, a variety of physical inputs, tri-stream encoding, and plug-and-play installation allow the NVR to work with virtually any surveillance system for a wide range of applications.
- Network Video Recorder supports multiple simultaneous 8MP/4K video streams and playback
- Plug-and-play PoE with up to sixteen compatible IP Cameras
- Review recorded footage at adjustable resolutions and FPS (720p@180FPS to 4K@45FPS)
- AI Playback functions, facial detection, human and vehicle recognition, heat map, and more provide advanced playback capabilities
- QR Code and Wizard Install assistance provide easy first-time setup
- Built-in PoE Ports (IEEE 802.3af/at) with Plug-and-Play functionality
- VGA and HDMI outputs support 4K resolution with compatible cables
- ONVIF® profile S conformant and tri-stream encoding prevent outside intrusions
- P2P for simple remote connections using PC or mobile device
This NVR supports up to 4K resolution (3840 x 2160) at 30fps and can record simultaneous HD streams at 112 Mbps across all sixteen channels. Built-in AI technology assists live surveillance and during review of recorded footage to improve the capabilities of your security and/or surveillance network. Features such as perimeter intrusion or line crossing can trigger connected alarms and improve responsiveness of security or emergency services. Face detection, vehicle and object detection, and crowd density and heat mapping features improve playback review and shorten the amount of time spent scrubbing footage for particular results. If a EV-N2806-2W4WQ 8MP Turret IP Camera is connected to the NVR, the camera's facial recognition and license plate detection capabilities can be utilized by the NVR. Additionally, this sixteen channel model of Enforcer NVR includes 8 sensor inputs and 1 alarm relay output for greater security coverage.
The 16-Channel 4K NVR has 4 terabytes of local storage shared between two 2 terabyte SATA drives and connects to the Internet to provide remote management and access to the system from most common web browsers and the SL Vision mobile app. Cameras can auto-enroll into the NVR over built-in PoE+ connections, making installation quick and simple. The network video recorder is capable of supporting additional storage by replacing either included SATA HDD with a larger storage drive, up to 10 terabytes each.
SL Vision App
The SL Vision app for iOS and Android provides you with a seamless and easy-to-use solution at your fingertips for all your video surveillance needs. With the SL Vision app and your ENFORCER® NVR, you can easily connect to your NVR from anywhere through your mobile device to view live feeds from your cameras, review recorded footage, and save video clips or snapshots of what you have seen with just a few taps.
Installation Details

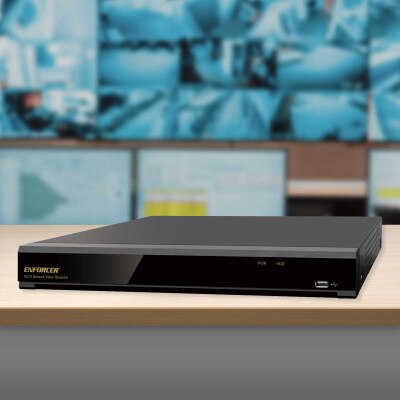

The Seco-Larm Enforcer NVR can be placed on a tabletop surface or rack mounted shelf. Connect any IP cameras to the recorder via ethernet cables. All ethernet ports provide Power over Ethernet (PoE) for simpler cable management. Once the connections are set up, use the QR Code and Wizard Install tool to quickly set up your surveillance system.
Contents
- NVR
- Mouse
- Power Supply
- 3ft HDMI® Cable
- 3ft Internet Cable
- (8) Screws for 2.5" HDD
- (4) Screws for 4" HDD
- Manual
NOTE: *DRN-116-4TB includes 8x mounting screws for 2.5" HDD and 4x mounting screws for 4.5" HDD.
Seco-Larm Security Products
So many places and things to protect; so many ways to protect them; one partner: Seco-Larm. Under the Enforcer trademark, Home Controls offers an impressive line of Seco-Larm security products, ranging from simple switches to some of the most sophisticated alarm devices. Whether for physical security, CCTV, access control, RF equipment, or vehicle security, Seco-Larm is the premier choice. Seco-Larm gives its customers such an extensive range of dependable, cost-effective security products with a full program of service and support.
Specifications
- Manufacturer Part #: DRN-116-4TB
- UPC: 676544022794
Video
- Resolution: 8MP (4K), 5MP, 2MP (1080p), 1.3MP (960p), 1MP (720p)
- Incoming Bandwidth: 112 Mbps
- Outgoing Bandwidth: 96 Mbps
- HDMI Output: 1024 x 768, 1280 x 720, 1280 x 1024, 1440 x 900, 1920 x 1080, 2560 x 1440, 3840 x 2160 (4K)
- VGA Output: 1024 x 768, 1280 x 720, 1280 x 1024, 1440 x 900, 1920 x 1080
- Frame Rate:
- 4K: Up to 45FPS
- 4MP: Up to 90FPS
- 2MP: Up to 180FPS
- Compression: H.265+, H.265, H.264+, H.264
- AI: Support
- Playback Functions:
- Fast forward / backward (2x, 4x, 8x, 16x)
- Slow forward (1/2x, 1/4x, 1/8x, 1/16x)
User Interface
- Local: UI5.0
- Web: IE10/11, Safari V12.1 above, Firefox V.52 above, Google Chrome V.57 above, Edge V.79 above

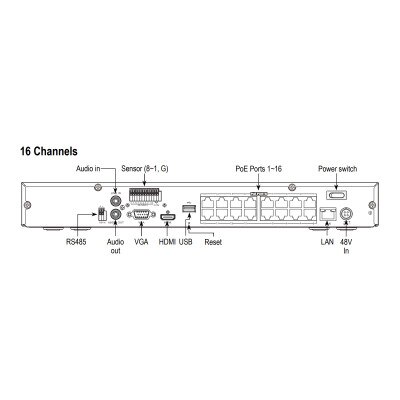

Auxiliary Interface
- HDMI Output: 1 Output
- VGA Output: 1 Output
- PoE Input: 16 x RJ45
- USB: USB 2.0 x 1 front & 1 rear
- Alarm I/O: 8 In / 1 Out
- Included HDD: 4TB SATA
- Internal Storage Capacity: 2 SATA HDD, up to 10TB
General
- Power Supply: 48VDC@3.75A
- Power Consumption: 8W
- Dimensions (WxDxH): 13-3/8" L x 14-7/8" W x 2" H (340 x 378 x 50 mm)
- Operating Temperature: 32 to 104°F (0 to 40°C)
- Humidity: Less than 90% Relative Humidity
- Ratings and Certifications: FCC
- Warranty: 3 Years
