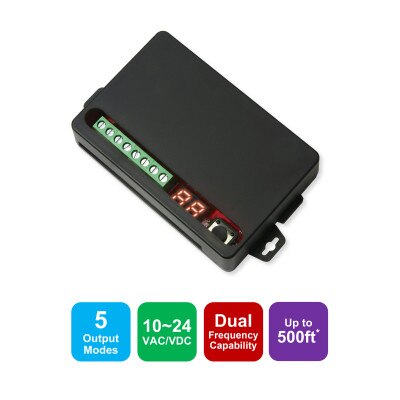

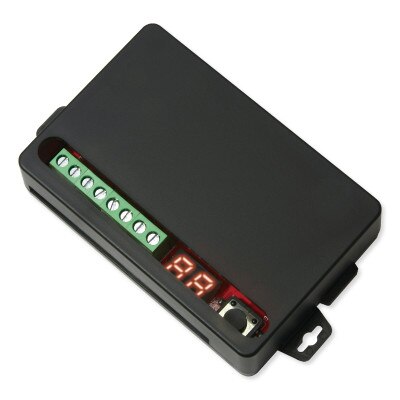

Seco-Larm ENFORCER 2-Channel RF Receiver

Easily Works With 315 MHz Seco-Larm Transmitters

Remote control a wide range of home automation applications with the Seco-Larm ENFORCER 2-Channel RF Receiver. With a range of up to 500 ft., this 2-Channel Receiver provides wireless control of garage doors, gates, house lights, alarm panels, lifts, and other compatible devices. It's compatible with any fixed-code or code-hopping 315 MHz Seco-Larm transmitter, and when used with the optional Extended Range Antenna (model SK-93ERSD, sold separately), it can work with Seco-Larm transmitters in the 433.92 MHz frequency range. Up to 5 independent relay modes can be programmed and it can learn up to 15 transmitter button codes per channel. An LED display shows RF signal received, general status, number of codes programmed, and code learning/deleting messages.

• 2-channel receiver works with 315 MHz SECO-LARM transmitters (fixed code and CODEBUMP)
• Can receive 433.92 MHz signals when paired with the optional Extended Range Antenna (sold separately)
• 5 output modes include 0.5 to 99-second timed pulse, 1 to 99-minute timed pulse, toggle, latch, follow (validity)
• LED display shows RF signal received, general status, number of codes programmed, and code learning/deleting messages
• Can learn up to 15 transmitter button codes per channel
• Receives signals from up to 500 feet (150m), or up to 1,000 feet with optional Extended Range Antenna (sold separately)

Contents

• 2-Channel RF Receiver
• Manual

Seco-Larm Security Products

So many places and things to protect; so many ways to protect them; one partner: Seco-Larm. Under the Enforcer trademark, Home Controls offers an impressive line of Seco-Larm security products, ranging from simple switches to some of the most sophisticated alarm devices. Whether for physical security, CCTV, access control, RF equipment, or vehicle security, Seco-Larm is the premier choice. Seco-Larm gives its customers such an extensive range of dependable, cost-effective security products with a full program of service and support.

• Manufacturer Part #: SK-910RD2
• UPC: 676544023234
• Operating Frequency: 315MHz
• Memory Capacity: 15 per channel
• Operating Voltage: 10~24 VAC/VDC
• Operating Current:
• Standby: 16mA@12VDC, 12mA@24VDC
• Active: 60mA@12VDC, 50mA@24VDC (both per channel)
• Relay Output Modes:
• Type: Independent, sequence, access control
• Modes: .05~99 sec momentary (default, 1s) 1~99 min momentary, toggle, latch, follow (validity)
• Relay Contacts:
• Number: 2
• Rating: Form C 10A@14VDC
• Connectors: Screw terminals, +, -, with NO/NC/COM per relay
• Digital Display: 2-digit, 7-segment LED
• Operating Humidity: 5~95%, non-condensing
• Operating Temperature: 32° to 167°F (0° to 75°C)
• Dimensions: 4-3/16 x 7/8 x 2-3/8 inches (107 x 23 x 60 mm)
• Certifications: FCC, IC, RoHS
• Warranty: 1 Year
