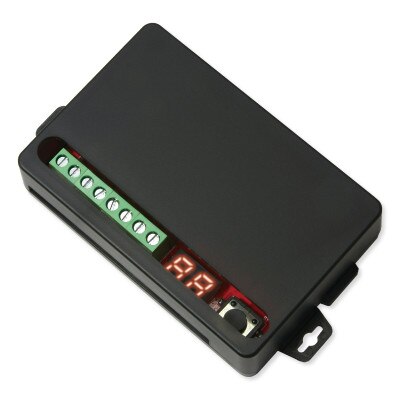

Seco-Larm ENFORCER 2-Channel RF Receiver, 433.92 MHz

Works With 433.92 MHz Seco-Larm Transmitters

Easily control a variety of home automation devices with the Seco-Larm ENFORCER 2-Channel RF Receiver. Offering a wireless range of up to 500 feet, this receiver enables remote operation of garage doors, gates, lighting, alarm systems, lifts, and other compatible equipment. It works with any fixed-code or code-hopping 433.92 MHz Seco-Larm transmitter and, when paired with the optional Extended Range Antenna (model SK-93ERSD, sold separately), also supports Seco-Larm transmitters on the 315 MHz frequency. Featuring five programmable relay modes, the receiver can store up to 15 transmitter button codes per channel. Its built-in LED display provides real-time feedback on RF signal reception, system status, programmed codes, and learning or deletion processes.

• Compatible with 433.92 MHz Seco-Larm transmitters (fixed-code and CODEBUMP models)
• Supports 315 MHz signals when used with the optional Extended Range Antenna (sold separately)
• Offers five output modes: 0.5 to 99-second timed pulse, 1 to 99-minute timed pulse, toggle, latch, and follow (validity)
• LED display provides real-time updates on RF signal reception, system status, programmed codes, and learning/deletion processes
• Stores up to 15 transmitter button codes per channel
• Wireless range of up to 500 feet (150m), extendable to 1,000 feet with the optional Extended Range Antenna (sold separately)

Contents

• 2-Channel RF Receiver
• Manual

Seco-Larm Security Products

So many places and things to protect; so many ways to protect them; one partner: Seco-Larm. Under the Enforcer trademark, Home Controls offers an impressive line of Seco-Larm security products, ranging from simple switches to some of the most sophisticated alarm devices. Whether for physical security, CCTV, access control, RF equipment, or vehicle security, Seco-Larm is the premier choice. Seco-Larm gives its customers such an extensive range of dependable, cost-effective security products with a full program of service and support.

• Manufacturer Part #: SK-910RD2-4
• UPC: 676544023791
• Operating Frequency: 433.92MHz
• Memory Capacity: 15 per channel
• Operating Voltage: 10~24 VAC/VDC
• Current Draw (Max.):
• Standby: 16mA@12VDC, 12mA@24VDC
• Active: 60mA@12VDC, 50mA@24VDC (both per channel)
• Relay Contacts:
• Number: 2
• Rating: Form C 10A@14VDC
• Operating Humidity: 0 to 95%, non-condensing
• Operating Temperature: -40° to 167° F (-40° to 75° C)
• Dimensions: 4-3/16 x 7/8 x 2-3/8 inches (107 x 23 x 60 mm)
• Certifications: FCC, IC, CE, RoHS
• Warranty: 1 Year

»Seco-Larm SK-910RD2-4 ENFORCER Two-Channel 433.92MHz RF Receiver Spec Sheet (.pdf)
»Seco-Larm SK-910RD2-4 ENFORCER 2-Channel RF Receivers Installation Manual (.pdf)
