Seco-Larm 4K HDMI Extender Over IP Kit

SKU: SEMVEAHMPM41NQ

Usually ships in 3-5 days.

$216.95

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Details

Use Cat5e/6 Cable To Extend Your 4K HDMI Signal

Extend the range of HDMI signals by sending video and audio over a single Cat5e/6 cable with the Seco-Larm 4K HDMI Extender over IP Kit. This device supports IR signals with the included transmitter and receiver, which will allow you to remote control a device, such as a media player or DVD player, from one end of an installation to the opposite end. It also allows a connection of multiple units for an extended range due to it supporting One-to-One and One-to-Many applications. It features an IR frequency of 20kHz-60kHz and supports video formats DTV/HDTV: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 4K@30Hz.

  • Extends 4K HDMI signals up to 393ft (with Cat6, 328ft with Cat5e)
  • Supports resolutions from 480i to 4K@30Hz with zero signal loss
  • Transmits over a single Cat5e/6 cable
  • Includes Power Adapter and IR hardware

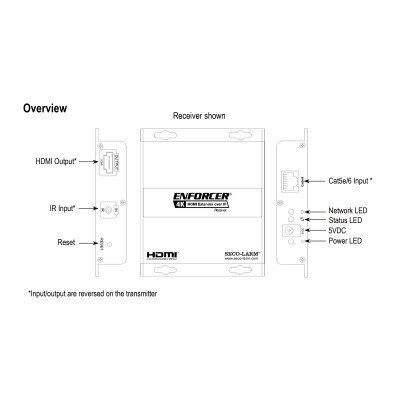

  • Status LEDs indicate power and link status

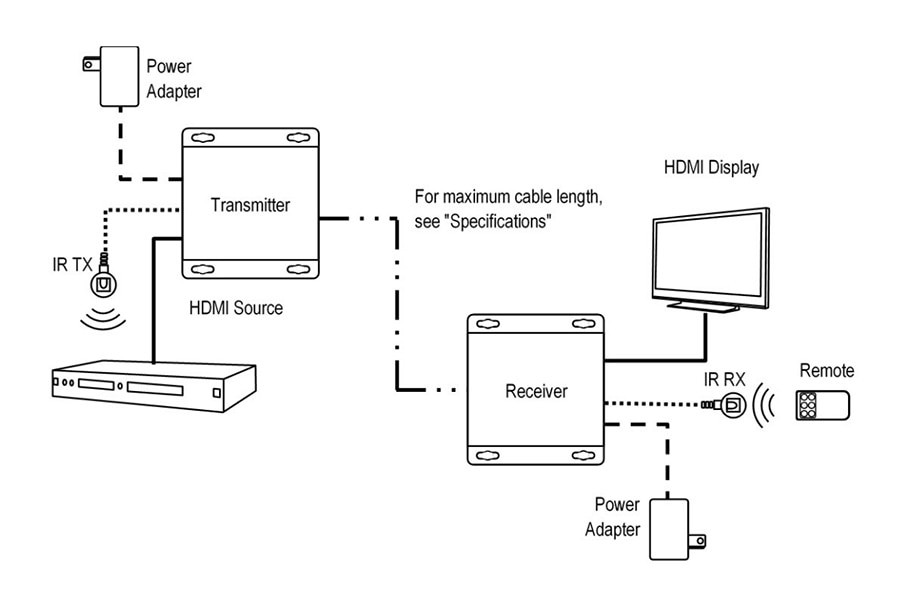

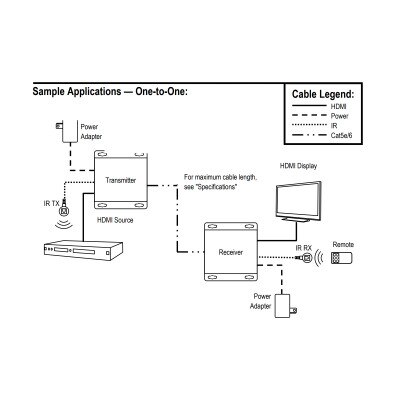

  • One-to-One Sample Application

Contents

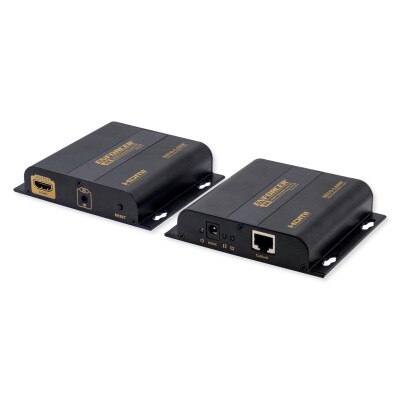

  • HDMI Transmitter
  • HDMI Receiver
  • IR Transmitter
  • IR Receiver
  • (2) Power Adapters
  • Manual

Seco-Larm Security Products

So many places and things to protect; so many ways to protect them; one partner: Seco-Larm. Under the Enforcer trademark, Home Controls offers an impressive line of Seco-Larm security products, ranging from simple switches to some of the most sophisticated alarm devices. Whether for physical security, CCTV, access control, RF equipment, or vehicle security, Seco-Larm is the premier choice. Seco-Larm gives its customers such an extensive range of dependable, cost-effective security products with a full program of service and support.

Specifications

  • Manufacturer Part #: MVE-AHMPM-41NQ
  • UPC: 676544021629
  • Maximum Video Resolution: 4K@30Hz
  • Deep Color: 24-Bit
  • Video Formats Supported: DTV/HDTV: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 4K@30Hz
  • Range – 4K:
    • Cat5: 262ft (80m)
    • Cat5e: 328ft (100m)
    • Cat6: 393ft (120m)
  • IP Addressing: Static
  • IR Frequency: 20kHz~60kHz
  • Operating Voltage: 5VDC
  • Power Supply: 2A@5VDC
  • Power Consumption: 6W
  • Operating Temperature: 32 to 140°F (0 to 60°C)
  • Dimensions: 4-7/16 x 15/16 x 3-11/16 inches (112x23x94 mm)
  • Credentials: FCC, CE, RoHS
  • Warranty: 1 Year

Downloads
