RYSE SmartShade with RYSE BatteryPack

SKU: RYKIT01

Standard Shipping (No Code Needed). Expedite with additional cost.

Usually ships in 1-2 days.

$238.00

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Details

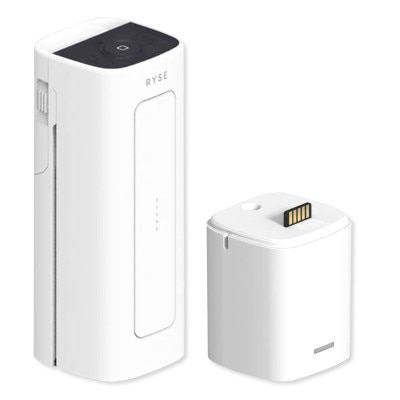

Easily Motorize Your Existing Window Shades

Add motorized operation to one of your existing window shades or blinds with the RYSE SmartShade With RYSE BatteryPack! This retrofit motorized operator kit includes the RYSE SmartShade and the RYSE BatteryPack. The RYSE SmartShade adds automatic control to a single window shade or blinds with a pull chain. The RYSE BatteryPack provides a wire-free option to power your RYSE SmartShade with up to 6 months of operation on a single charge. Unlike competing motorized window covering operators, the SmartShade fits directly onto an existing pull chain, eliminating the need for costly installation. Once installed, the SmartShade opens and closes your shades or blinds by pressing the on-device buttons or via Bluetooth using the RYSE App.

  • Retrofit pullchain operator adds motorized control to shades or blinds
  • Opens and closes shades and blinds using physical buttons or RYSE app
  • Guaranteed to lift any window shade or blind with a pull chain
  • Compatible with plastic and metal beaded pull chains
  • Additional features including scheduled routines, multi-device grouping, and more when paired with the RYSE SmartBridge (sold separately)
  • BatteryPack powers RYSE SmartShade for 3 to 6 months
  • BatteryPack Micro USB connection attaches to the bottom of the SmartShade for a wire-free look
  • BatteryPack fully charges in 6 hours

Installation Details

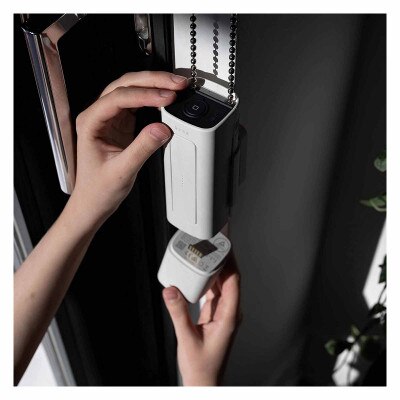

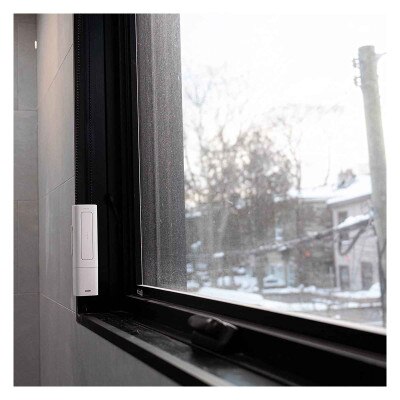

The SmartShade installs directly onto a plastic or metal bead chain of your existing shades or blinds. Remove the SmartShade's back cover to place your bead chain into the grooves of the operator. An included mounting bracket allows you to mount the SmartShade onto a nearby wall or frame.

The SmartShade is powered by an included wired power supply or with the RYSE BatteryPack (sold separately). If powered by the BatteryPack, the SmartShade can operate between 3 to 6 months before the BatterPack needs to be recharged.

The BatteryPack's micro USB connection allows the BatteryPack to easily attach and detach from the SmartShade without worry of it falling off.

RYSE App

Remotely control your SmartShades with the RYSE App for iOS and Android. On its own, the RYSE App connects your smart device to a single SmartShade using Bluetooth wireless communication for on-demand control of your SmartShade. With the addition of the RYSE SmartBridge, additional features such as automated routines, smart home inclusion, Wi-Fi remote control, and voice control compatibility are unlocked. Up to 10 SmartShades can be connected to the RYSE SmartBridge and all can be configured to operate in 1 or more groups or individually.

Automating your RYSE SmartShades assists in lowering your summer energy bills by raising and lowering your window coverings well before the temperature rises.

Contents

  • SmartShade with a Back Cover
  • Power Adapter
  • BatteryPack
  • Micro-USB Charging cable
  • Cord Sprocket
  • Cord Guide Rail
  • Position Marker Tapes
  • Inside Mounting Bracket
  • Outside Mounting Bracket Attachment
  • Mounting Bracket Attachment Screws
  • Screws
  • Anchors

NOTE: Scheduled automatic control of SmartShade only possible with RYSE app and the RYSE SmartBridge (sold separately).

RYSE: Upgrade Your Existing Window Shades

RYSE is the first retrofit solution to motorizing and automating existing window blinds and shades. Their company's inception came from searching for the solution to reducing indoor heat without breaking the bank. Upon discovering the costliness of replacing existing drapery with automated drapery and window opening systems, the team at RYSE endeavored to create a cost effective solution to lowering indoor heat without relying on a thermostat or buying expensive motorized devices. After years of development, RYSE found the answer to their problem in their SmartShade product line.

Specifications

Technical Details

  • Manufacturer Part #: BUNDLE-GR-0102-GB-0102

SmartShade

  • Manufacturer Part #: GR-0102
  • UPC: 627843733607
  • Compatibility: #10 size plastic or metal beaded chain, cord loops of 1.6 to 3.2 mm in diameter
  • Supported Shade Sizes: Up to 9 x 9 ft. or 10 lbs of weight
  • Power: Optional 12V/2.0A Adapter (with 9 ft. cable)
  • Connectivity: Bluetooth LE
  • Radio Frequency: 2.4 GHz
  • Radio Power: +8 dBm
  • OS Requirements: iOS – 11.2 or later; Android – 6.0 or later
  • Operating Temperature: 0°C to 40°C (32°F to 104°F)
  • Operating Humidity: 10% to 85%
  • Dimensions: 1.8 x 1.8 x 5.1 in
  • Weight: 0.727 lbs (330 g)
  • Warranty: 1-Year Limited

BatteryPack

  • Manufacturer Part #: GB-0102
  • UPC: 627843733621
  • Charging Port: Micro USB
  • Battery Type: Lithium Polymer
  • Battery Capacity: 1850 mAh
  • Battery Life: 3-6 Months (depends on Usage
  • Operating Temperature: 0°C to 40°C (32°F to 104°F)
  • Operating Humidity: 10% to 85%
  • Dimensions: 1.8 x 1.8 x 2.4 in
  • Weight: 0.357 lbs (162 g)
  • Warranty: 1-Year Limited

Downloads

»RYSE GR-0102 SmartShade Brochure (.pdf)
»RYSE GR-0102 SmartShade ADA Compliance (.pdf)
