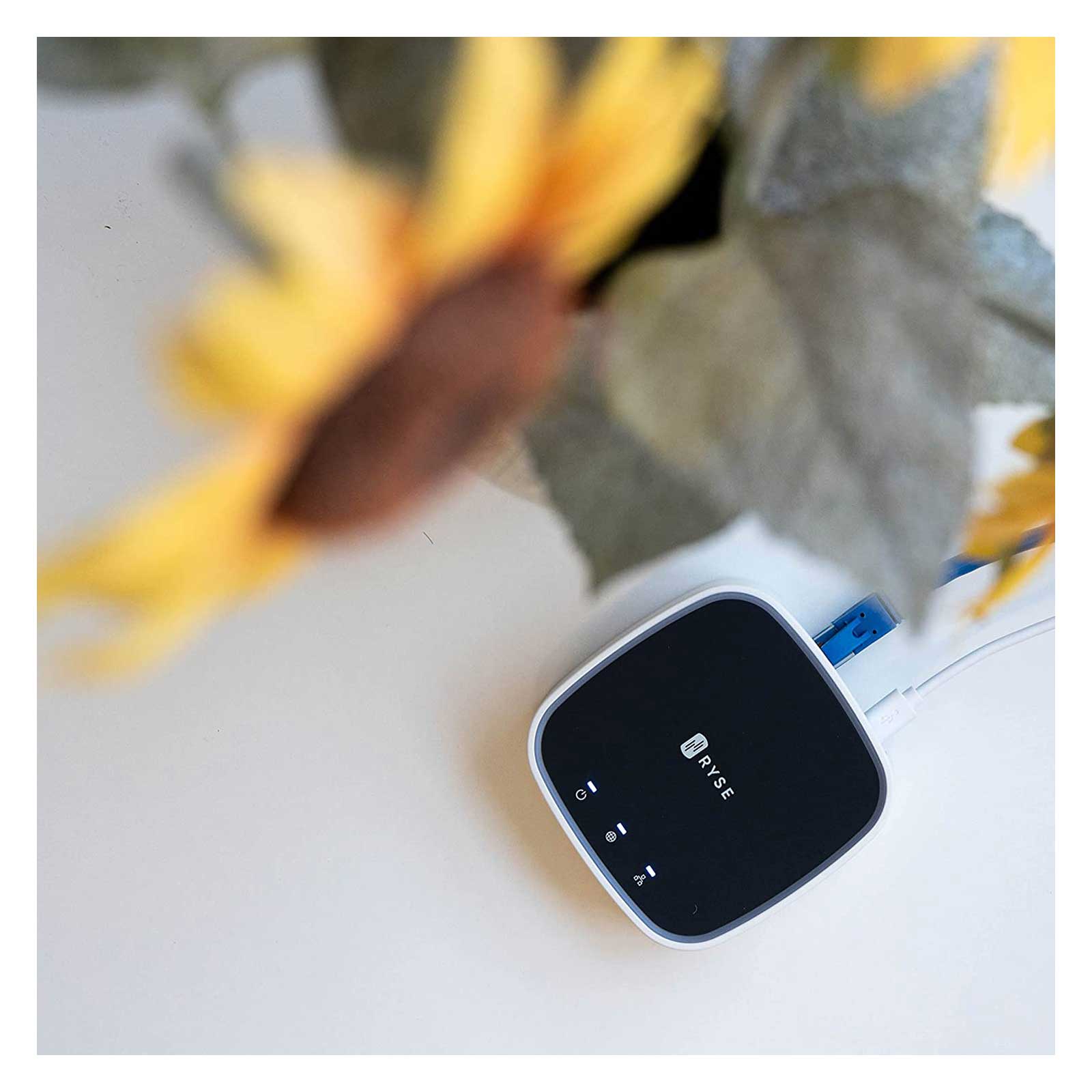

RYSE SmartBridge for SmartShade

Add Automated Features to Your SmartShade

Increase the capabilities and control options of your SmartShades with the RYSE SmartBridge for SmartShade! This automation hub connects to your internet connection to allow your SmartShade(s) to be included into a smart home network and unlock scheduled routines and additional control options. The SmartBridge allows SmartShade devices to be included into a smart home network and programmed to operate on a routine schedule or as a part of an existing automated scene. Up to 10 SmartShade devices can be grouped together to respond to a single command or programmed individually. Additionally, the SmartBridge enables remote control via Wi-Fi and voice control compatibility with Amazon Alexa, Google Home, and Apple HomeKit. Without the SmartBridge, a SmartShade device can only be manually operated using the physical buttons or via local Bluetooth connections.

• Automation hub for RYSE SmartShade adds remote control, automated schedules, voice control, and more
• Create automated schedules to open/close your SmartShades
• Group control up to 10 SmartShades at the same time
• Enables integration with Wi-Fi connected smart home systems
• Voice Control Compatible with Amazon Alexa, Google Home, Apple HomeKit

Installation Details

The SmartBridge plugs into a standard outlet and connects to an Ethernet switch or modem via Ethernet connection. The SmartBridge wirelessly connects to nearby SmartShades within your home or business.

RYSE App

Remotely control your SmartShades with the RYSE App for iOS and Android. On its own, the RYSE App connects your smart device to a single SmartShade using Bluetooth wireless communication for on-demand control of your SmartShade. The RYSE SmartBridge unlocks additional features and control options to one or more SmartShade. Each SmartBridge can wirelessly connect to up to 10 SmartShades which can be configured to operate in 1 or more groups or individually. Features unlocked by the SmartBridge include smart home inclusion and scheduled routines, Wi-Fi remote control, and voice control compatibility.

Contents

• SmartBridge
• Ethernet cable
• Power adapter
• Micro-USB to USB-A Charging cable

RYSE: Upgrade Your Existing Window Shades

RYSE is the first retrofit solution to motorizing and automating existing window blinds and shades. Their company's inception came from searching for the solution to reducing indoor heat without breaking the bank. Upon discovering the costliness of replacing existing drapery with automated drapery and window opening systems, the team at RYSE endeavored to create a cost effective solution to lowering indoor heat without relying on a thermostat or buying expensive motorized devices. After years of development, RYSE found the answer to their problem in their SmartShade product line.

• Manufacturer Part #: BR-0101
• UPC: 627843733614
• SmartShades: connect up to 10 SmartShades
• Connectivity: Ethernet cable
• Radio Frequency: 2.4 GHz
• Radio Power: +8 dBm
• Power: Optional 5V/1.0A Adapter (with 9 ft. cable)
• OS Requirements: iOS – 11.2 or later; Android – 6.0 or later
• Operating Humidity: 10% to 85%
• Operating Temperature: 0°C to 40°C (32°F to 104°F)
• Dimensions: 1.1 x 3.6 x 3.6 in
• Weight: 0.26 lbs (119 g)
• Warranty: 1-Year Limited
