  • Qolsys IQ Wi-Fi 6 Mesh Router System for IQ Panels

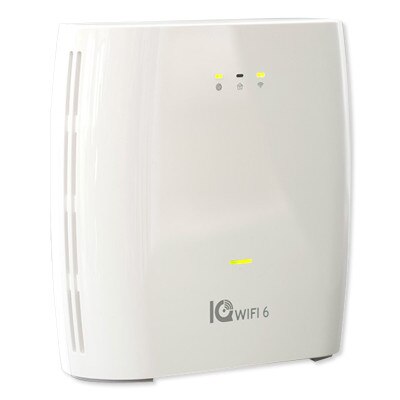

Qolsys IQ Wi-Fi 6 Mesh Router System for IQ Panels


Order now and we'll ship same business day (if ordered before 3 pm PST).


WARNING: Cancer and Reproductive Harm –


Expand And Improve Your Wi-Fi Coverage

Expand Wi-Fi coverage throughout your home or business with the Qolsys IQ Wi-Fi 6 Mesh Router System for IQ Panels. This mesh Wi-Fi router can be used as the starting point or an additional node for your wireless mesh network, and up to 8 Qolsys IQ Mesh Routers may be connected to the same network. A single IQ WI-Fi 6 Mesh Router can handle Gigabit wireless transmission speeds across a 1,500 sqft area using dual-band 2.4/5Ghz wireless transmissions. Additionally, Qolsys IQ Wi-Fi 6 Mesh Router System can partition itself as a separate Wi-Fi network to operate alongside an existing one, enabling users to separate entertainment, security, and/or networking devices onto different Wi-Fi networks for increased security.

  • Mesh Wi-Fi Router connects Wi-Fi devices such as cameras and touchscreens
  • Supports 1GB Wi-Fi Bandwidth across 1,500 sqft. per device
  • Supports Dual-band 2.4/5G Wi-Fi networks
  • Can be used as a stand alone or parallel configuration
  • Managed and configured via the IQ Panel or Web interface
  • Improves connectivity for all Wi-Fi devices on a network
  • Up to 8 nodes (1 controller & 7 agents) can be added
  • Qolsys IQ Panel and Integration out of the box
  • Wi-Fi Partitions separates Wi-Fi devices across 3 separate networks
  • Can replace existing Wi-Fi networks or operate alongside with minimal interference

The Qolsys IQ Wi-Fi Mesh Router can be used to assist the Qolsys home security system (including cameras, IQ Remote and the IQ panel itself), or it can act as replacement to your existing modem/router, allowing you to connect to other devices as well. To manage and configure the IQ Wi-Fi, use the IQ Panel or the online Web Interface.

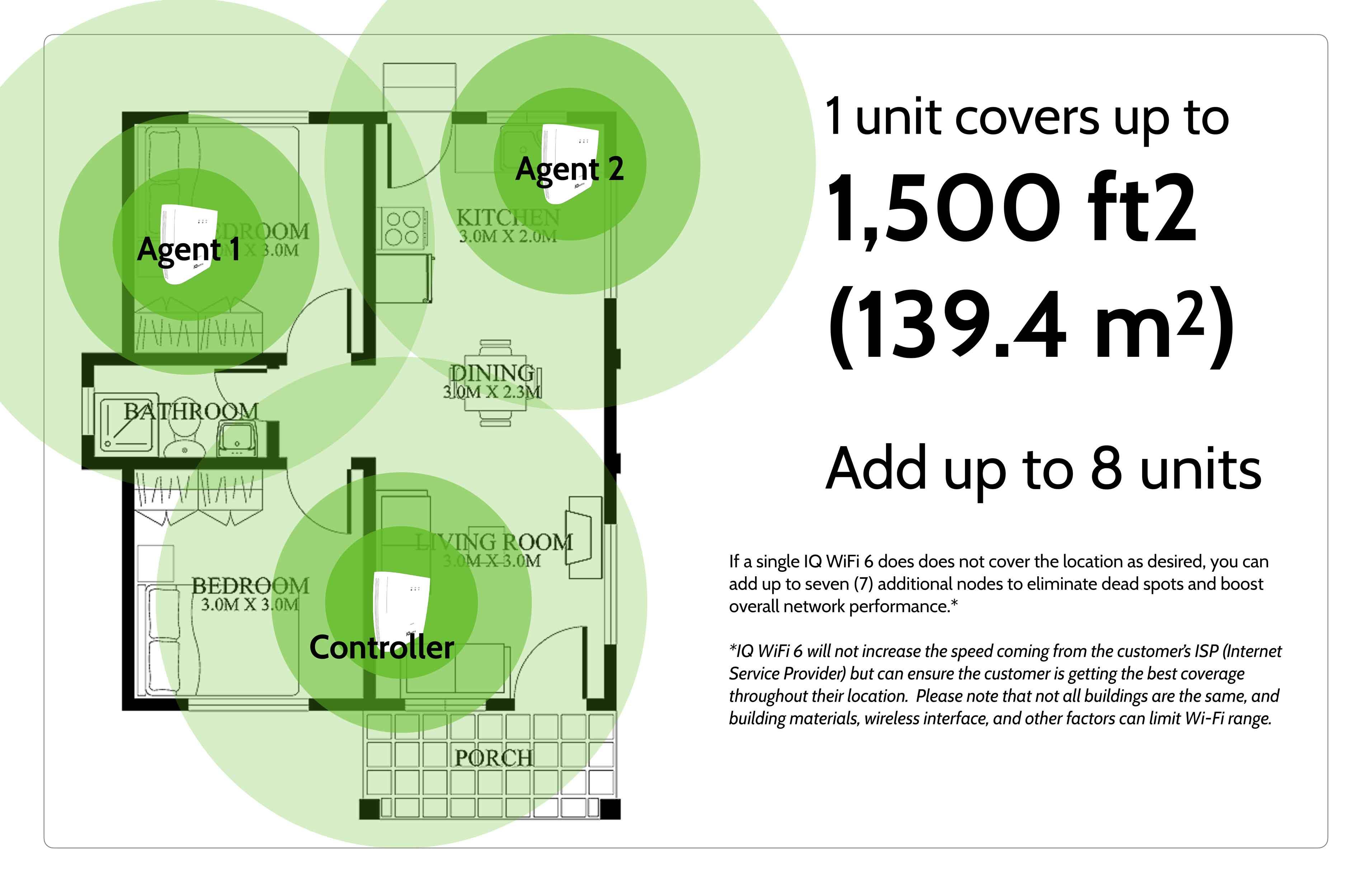

Qolsys IQ Wi-Fi: 1,500 Square Feet of Coverage

One Qolsys Wi-Fi Mesh Router unit covers up to 1,500 square feet. If one unit doesn't cover your desired location up to 8 additional nodes (1 controller & 7 agents) can be added around your home to eliminate dead spots and boost your overall network performance.

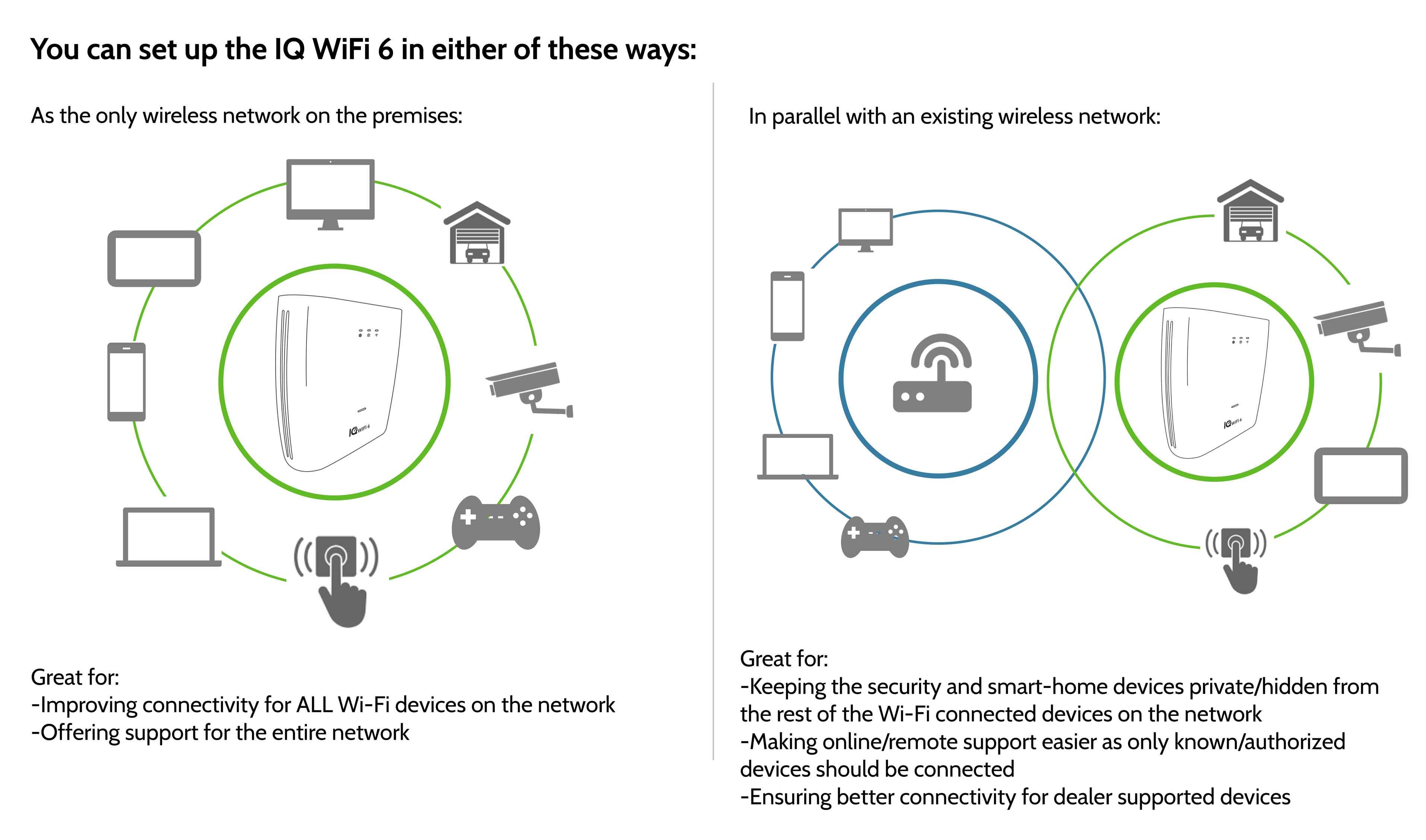

Use the Qolsys IQ Wi-Fi Mesh Router as Stand Alone or Parallel

Set up the Qolsys Wi-Fi Mesh Router as a Stand Alone network or in a parallel configuration with an existing wireless network. Both configurations will improve connectivity for all of your Wi-Fi devices within the network.


  • IQ Wi-Fi 6 Mesh Router
  • Ethernet Cable
  • Power Supply

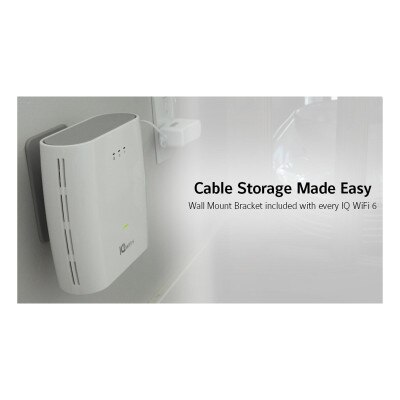

  • Wall Mounting Bracket


  • Requires an IQ Panel or a modem (both sold separately) with an Internet connection.
  • IQ WiFi will not increase the speed coming from your ISP (Internet Service Provider) but can ensure you are getting the best coverage throughout your location.
  • Please note that not all buildings are the same, and building materials, wireless interface, and other factors can limit Wi-Fi range.

Qolsys: All In One. Always Connected

Founded in 2010 with the mission to improve lives through technology, Qolsys develops innovative life safety, security, and home control devices built to set a higher standard for the industry. Qolsys products are flexible, intuitive, and reliable. As Qolsys says, "There's never been a better time to get connected."


  • Manufacturer Part #: IQWF6
  • UPC: 857497008534

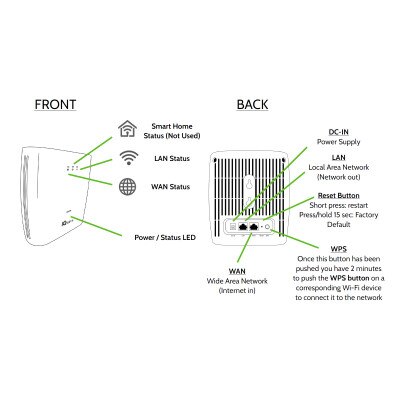

  • LED and Button:
    • LEDs: 4 Single Color LED
    • 1 WPS Button on the side
    • 1 Reset button on the back
  • Wireless Band: Dual IEEE 802.11 b/g/n/ax 2.4GHz IEEE 802.11 a/n/ac/ax 5GHz – AX1800
  • Ethernet: 1x LAN / 1x WAN Gigabit Ethernet Ports
  • Security: WPA2 and WPA 3 Encryption
  • Expandable Mesh: Add up to 8 nodes (1 controller & 7 agents)
  • DHCP: Server, Client
  • Protocols: IPv4 and IPv6
  • Guest Network: 2.4GHz/5GHz
  • WPS: Physical button is on the side of the device
  • Power Supply AC-DC: AC (110V 60Hz / 240V 50Hz), 12 DC (12V/1A) – Barrel jack
  • Operating Temperature: 32°F to 104°F (0°C – 40°C)
  • Operating Distance: Up to 1,500 square feet per point
  • Weight: 0.936 lbs (425g)
  • Size: 5.96 x 5.92 x 2.18 inches (151.4 x 89 x 55.4mm)
