Qolsys IQ Z-Wave Plus v2 Water Valve, S-Line

Immediately Prevent Water Damage Once Leaks Are Detected

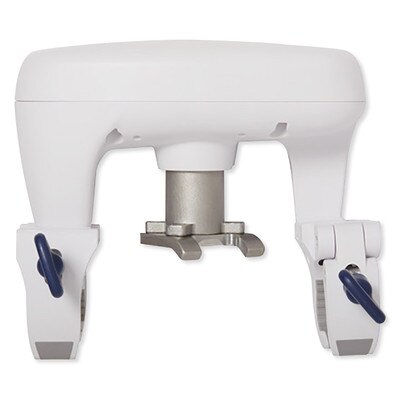

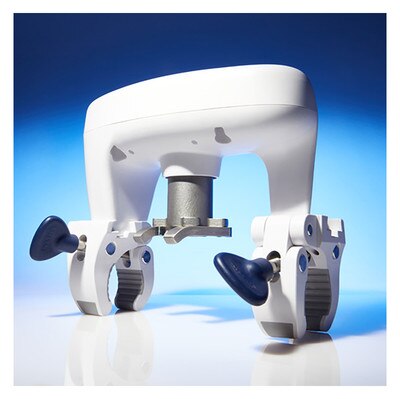

Immediately protect your property from leaks using Z-Wave 700 with the Qolsys IQ Z-Wave Plus v2 Water Valve, S-Line. This Z-Wave 700 connected retrofit servo can automatically shut off your main water valve when water is detected by flood or leak detectors on the same Z-Wave network, limiting the potential for water damage. The IQ Water Valve fits onto 1/4 turn ball valves connected to 1/2" to 1 1/4" pipes and installs easily without the need for a professional plumber. It is compatible with the Qolsys IQ Panel via Z-Wave wireless communications and can be configured using the IQ Panel's touchscreen or the Alarm.com mobile app. 2 S-Line flood detection sensors are included to allow the Water Valve to be added to PowerG compatible security and automation systems and aid in preventing water damage.

• Z-Wave 700 connected water shutoff valve immediately shuts off water when a connected leak or water sensor is triggered
• Adaptive torque output up to 8 N-m
• Retrofits onto existing quarter turn ball valves with 1/2" to 1 1/4" pipes
• Includes 2 S-Line flood detection sensors

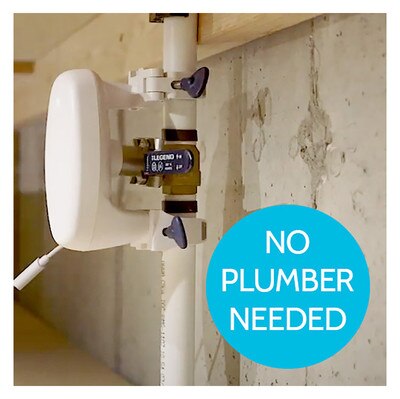

• No professional plumbing installation required
• Z-Wave Plus 700 certification ensures reliable connection, stronger encryption, and longer battery life
• Compatible with Qolsys IQ Panel, sold separately
• Can be used for indoor or outdoor applications

Z-Wave 700 Series / Z-Wave Plus v2 Certification

Z-Wave Plus v2 is an upgraded Z-Wave certification program to help you identify products that take advantage of the latest Z-Wave hardware platform, also known as 700 Series or Gen7 Z-Wave. Z-Wave Plus v2 compatible devices include extended wireless range up to 2600 ft/800 m, three layers of encryption, faster operation, and longer battery life.

Contents

• IQ Water Valve
• (2) S-Line 319.5MHz Flood Sensors

NOTE: *Does not work on Gate valves. Be sure to check the valve type of your water main prior to install. Avoid installing in direct sunlight.

Qolsys: All In One. Always Connected

Founded in 2010 with the mission to improve lives through technology, Qolsys develops innovative life safety, security, and home control devices built to set a higher standard for the industry. Qolsys products are flexible, intuitive, and reliable. As Qolsys says, "There's never been a better time to get connected."

• Manufacturer Part #: IQWV908-KIT-SL
• UPC: 857497008527
• Application: Fits quarter turn ball valves with pipes from 1/2 inch to 1 1/4 inch
• Max adaptive torque: 8 N-m
• Communication: Z-Wave Plus 700 Series 908.4 Mhz
• Operating Distance: Up to 130ft (indoors) and 450ft (outdoors)
• Power Supply: AC-DC AC (110V 60Hz / 220V 50Hz), DC (12V/1A) – Barrel jack
• Ratings and Certifications: Waterproof and Dustproof IP 66
• Operating Temperature: 14 to 112°F (-10 to 44°C)
• Weight: 1.33 lbs (603g)
• Dimensions: 14.8 x 9.6 x 13.3mm
• Warranty: 1 Year Limited

»Qolsys IQWV908-KIT IQ Water Valve Spec Sheet (.pdf)
»Qolsys IQWV908-KIT IQ Water Valve Quick Start Guide (.pdf)
