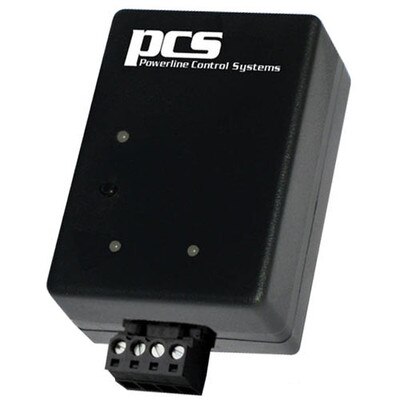

PCS SimpleWorx Plug-In Transmitter Module, Contact Closure Input

Triggers A SimpleWorx Receiver When Activated

The Plug-In Transmitter Module plugs into a standard electrical outlet and accepts a single low voltage contact closure input to trigger SimpleWorx receivers (sold separately). The module includes a 12VAC 500mA power output for sensors. The input can be connected to any Class 2 low-voltage device such as alarm panel switches, motion sensors, photo sensors, etc. This allows you to trigger an alarm when a sensor is activated.

• Simple installation, just plug it in to any standard outlet
• Links to SimpleWorx receivers in seconds
• Triggers when a UL Class 2 contact is applied to the input
• LED indicates status of relay

PulseWorx Products Utilize UPB Technology

SimpleWorx is a revolutionary digital point to points control system that cost-effectively provides basic on/off lighting control. SimpleWorx is powered by SPC (Simple Powerline Communication), a rock solid proven technology that offers efficient solutions for remotely turning lights on and off. SPC provides super reliable one-way control of lights and appliances using existing 120V wiring, and offers significant benefits above older powerline technologies or traditional Wired and RF solutions.

• Manufacturer Part #: SPMT-CC

Electrical

• Power Requirements: Primary: 120 Volts AC, 50/60Hz
• Channels: 1
• Switch Load Types: Contact Closure
• Relay Lifetime: 100,000 on/off operations at full electronic ballast load
• Standby Power Consumption:< 0.8 Watts
• Environmental Conditions: Indoor Use Only
• Temperature: -40 to 194 degrees F (-40 to 90 degrees C)
• Humidity: 10 to 90 percent RH (non-condensing)
• Certifications: Safety tested for USA and Canada to ETL tested to UL508 UL-508-2010 CSA C22.2 #14-2010

Operation

• Status LED:
• Blinking Green = Link Mode
• Red = Power applied
• Blinking Red = Transmitting
• Channel LED: Red when on
• During Power outage: Retains all settings in Non-volatile EERPOM

Mechanical

• Terminals: (28 -16 gauge wire)
• Connections: Wago #253 Series or equivalent 4-position connector terminal block
• Set Button: Button
• Mounting: 3-pin grounded plug
• Dimensions: 3(L) x 2(W) x 1.55(D) inches
• Weight: 0.3 pounds
• US Patent No.: 6,734,784; 6,784,790; 7,265,654; 7,688,183. U.S. and foreign patents may be pending.
