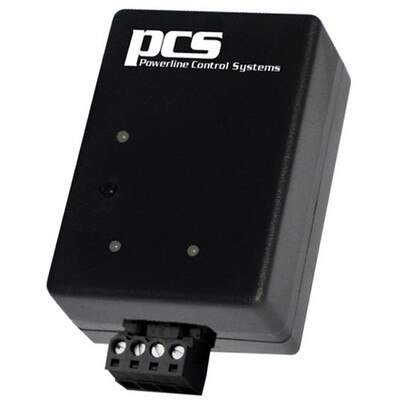

PCS SimpleWorx Plug-In Receiver Module, Contact Closure Input

Remotely Controlled With SimpleWorx Transmitters

Turn any device (up to 8A) that needs a dry contact input into a remote controlled device with the Plug-In Receiver Module. The module can control shades, blinds, gate motors, garage door openers, pool or irrigation valves, electronic door strike, motorized screens, etc. Simply plug it into a standard electrical outlet, connect your device, and activate the module with a SimpleWorx transmitter. The connected device now turns on by remote.

• Connect device that need a dry contact input
• Plugs into a standard power outlet
• Controlled by a SimpleWorx transmitter (sold separately)

PulseWorx Products Utilize UPB Technology

SimpleWorx is a revolutionary digital point to points control system that cost-effectively provides basic on/off lighting control. SimpleWorx is powered by SPC (Simple Powerline Communication), a rock solid proven technology that offers efficient solutions for remotely turning lights on and off. SPC provides super reliable one-way control of lights and appliances using existing 120V wiring, and offers significant benefits above older powerline technologies or traditional Wired and RF solutions.

• Manufacturer Part #: SPMR-CC

Electrical

• Power Requirements: Primary: 120 Volts AC, 50/60Hz
• Channels: 1
• Switch Load Types: Contact Closure
• Relay Lifetime: 100,000 on/off operations at full electronic ballast load
• Max Load: 8 Amps at 120V AC 50/60 Hz
• Standby Power Consumption:< 0.8 Watts
• Environmental Conditions: Indoor Use Only
• Temperature: -40 to 194 degrees F (-40 to 90 degrees C)
• Humidity: 10 to 90 percent RH (non-condensing)
• Certifications: Safety tested for USA and Canada to ETL tested to UL508 UL-508-2010 CSA C22.2 #14-2010

Operation

• Status LED:
• Blinking Green = Link Mode
• Red = Power applied
• Blinking Red = Transmitting
• Channel LED: Red when on
• During Power outage: Retains all settings in Non-volatile EERPOM

Mechanical

• Terminals: (28 -16 gauge wire)
• Connections: Wago #253 Series or equivalent 4-position connector terminal block
• Set Button: Button
• Mounting: 3-pin grounded plug
• Dimensions: 3(L) x 2(W) x 1.55(D) inches
• Weight: 0.3 pounds
• US Patent No.: 6,734,784; 6,784,790; 7,265,654; 7,688,183. U.S. and foreign patents may be pending.
