PCS SimpleWorx Wall Keypad Transmitter, 4 Button

SKU: PCSWXKPT4x

Please Select Option To View Availability

$75.95

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Details

Control Up To Four Groups

The Keypad Transmitter is a wall mounted controller that allows you to control up to four groups of SimpleWorx receivers anywhere in your home or office. Each group can have one or multiple receivers. The keypad instantly communicates to the desired group of devices associated with the button. All devices listen for commands and react by turning their connected lights/loads on/off accordingly.

  • Controls up to four groups of SimpleWorx receivers
  • Each group can have one or multiple receivers
  • Mounts in any standard single-gang electrical box

NOTE: Wallplate not included.

About SimpleWorx

SimpleWorx is a revolutionary digital point to points control system that cost-effectively provides basic on/off lighting control. SimpleWorx is powered by SPC (Simple Powerline Communication), a rock solid proven technology that offers efficient solutions for remotely turning lights on and off. SPC provides super reliable one-way control of lights and appliances using existing 120V wiring, and offers significant benefits above older powerline technologies or traditional Wired and RF solutions.

Specifications

  • Manufacturer Part #: KPT4

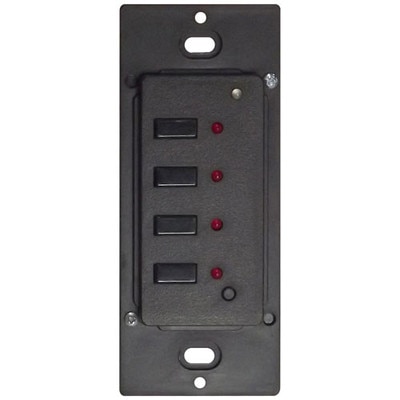

    • KPT4-BK (Black)

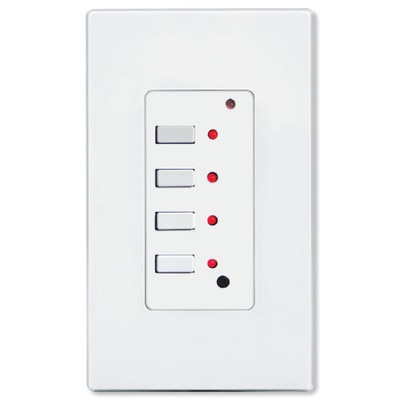

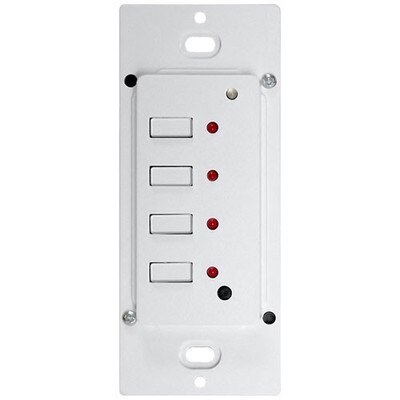

    • KPT4-W (White)

Power Requirements

  • Primary: 120 Volts AC, 50/60Hz
  • Transmission Channels: 4 Groups
  • Connections/Power Wire: Three 16 AWG gauge, 105 C insulation
    • Black: Hot/Line
    • White: Neutral
    • Ground: 18 AWG stranded copper
  • Standby Power Consumption:< 0.8 Watts

Environmental Conditions

  • Temperature: -40 to 194 °F (-40 to 90 °C)
  • Humidity: 10 to 90 percent RH (non-condensing)
  • Certifications: Safety tested for USA and Canada to ETL tested to UL508 UL-508-2010 CSA C22.2 #14-2010
  • Indoor Use Only

Operation

  • Status LED Modes:
    • Red: Operation Mode
    • Flashes Green: Transmitting SPC Message
    • Blinking Green: Link Mode
  • LED Indicators: One per button; LED reflects status of Group
  • During Power outage: Retains all settings in Non-volatile EERPOM

Mechanical

  • Button Type: 4 mechanical latching contact type buttons
  • Set Button: Button
  • Wire Nuts: 3 included
  • Mounting: Single Gang or multiple-ganged junction box
  • Dimensions: 4.10(H) x 1.7(W) x 1.2(D) inches
  • Weight: 5.6 ounces
  • US Patent No.: 6,734,784; 6,784,790; 7,265,654; 7,688,183. U.S. and foreign patents may be pending.
