  • Optex Indoor Recessed Mount PIR Detector, 360 Degree

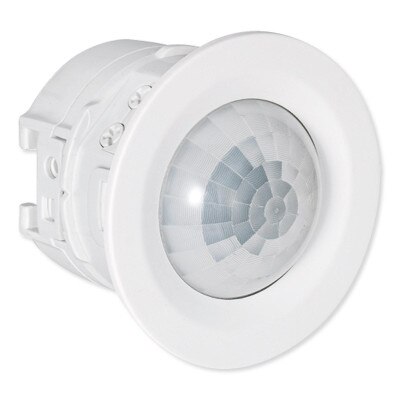

Optex Indoor Recessed Mount PIR Detector, 360 Degree

SKU: OPAP360BxC

Please Select Option To View Availability

$29.95 to $35.95

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Details

Discreet Detection Coverage With A Compact Design

Add discreet motion detection to your home or business with the Optex Indoor Recessed Mount PIR Detector, 360 Degree. This uniquely designed PIR motion detector uses passive infrared technology to detect motion covering 360° up to 20' at a mounting height of 14' 9". It features a tamper switch that will notify when the sensor has been tampered with and it comes with selectable detection sensitivity: High, Medium, and Low. It has a compact design and installs discreetly on a ceiling. It's ideal for large rooms or corner areas that have windows or doors where unwanted intruders can break in and enter.

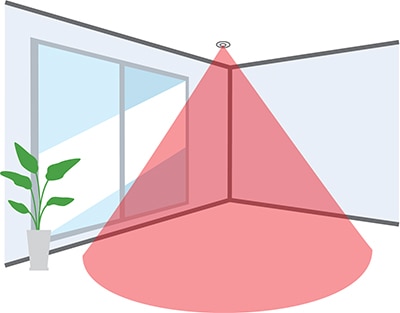

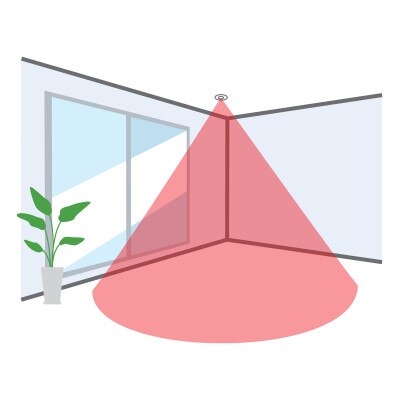

  • 360° (20') detection area at 14' 9" mounting height

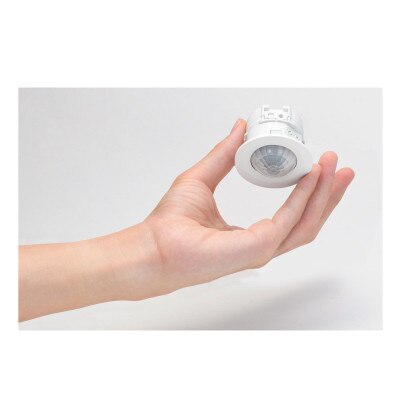

  • Compact design allows for discreet installation
  • Selectable detection sensitivity: High, Medium, and Low
  • Tamper switch notifies when the device has been tampered with

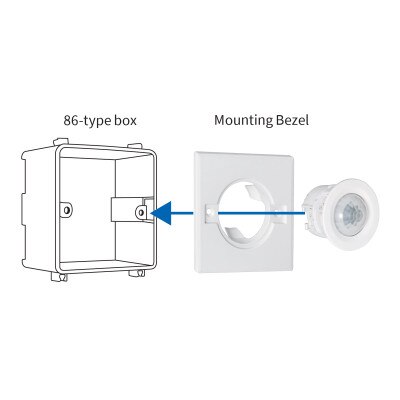

  • Ceiling mount installation with 86-type box or without

Contents

  • Indoor Recessed Mount PIR Detector
  • Manual

Optex: The Quality Products People Expect

Optex specializes in passive and active infrared technology, control systems and CCTV products for home and business security. Since its founding in 1979, Optex has established a world-wide reputation for quality, innovation and technical excellence. Their products always represent an investment in performance and long-term satisfaction.

Specifications

  • Manufacturer Part #:
    • AP-360B(C): Wired
    • AP-360BR(C): Battery Operated
  • UPC:
    • AP-360B(C): 788924505022
    • AP-360BR(C): 788924505039
  • Detection Method: Passive infrared
  • Detection Area: Diameter 6 m (Diameter 20') at mounting height 4.5 m (14'9")
  • Mounting Height: 8'2" to 14'9" ( 2.5 to 4.5 m)
  • Mounting Type: Recessed ceiling mount/86-type box mount
  • Sensitivity: 2.0°C at 0.6 m/s (3.6°F at 2'/s)
  • Detection Speed: 0.3 to 3.0 m/s (1'/s to 9'10"/s)
  • LED indicator:
    • AP-360B(C):
      • Warm-up upon power on: blinking
      • Stand-by: off
      • Alarm: solid on
    • AP-360BR(C)
      • Warm-up upon power on: blinking
      • Stand-by: off
      • Walk test: solid on
      • Alarm: solid on
  • Alarm Cycle: 2 s to 120 s (variable)
  • Battery Saving Timer:
    • AP-360BR(C): 120 s/ 5 s selectable
  • Alarm Output:
    • AP-360B(C): N.O./N.C., 28 V DC 200 mA max.
    • AP-360BR(C): N.O./N.C., 3.6 V DC 10 mA max.
  • Illuminance:
    • AP-360B(C): 20 to 320 lux (variable/not detected)
  • Tamper switch:
    • N.C. 28 V DC 100 mA max
    • The contact opens once the casing is detached
  • Warm-up Time: Approx. 60 s
  • Power Supply:
    • AP-360B(C): 9.5 to 16 V DC
    • AP-360BR(C): 2.7 to 3.6 V DC (CR123A battery)
  • Current:
    • AP-360B(C):
      • 12 V DC
      • Stand-by: 11mA, Max.: 13 mA
    • AP-360BR(C)
      • 3 V DC
      • Stand-by: 10цA, Max.: 4 mA
  • PIR Sensitivity: H/ M/ L
  • Weight: 50 g (1.76 oz)
  • Operation Humidity: < 95%
  • Location: Indoors
  • Dimensions:
    • Diameter 2.05 x 1.67 inches (diameter 52 x 42.5 mm): without switch box mount
    • 3.39 x 3.39 x 1.67 inches (86 x 86 x 42.5 mm): with 86-type box mount

Downloads

»Optex AP-360B Indoor Recessed Mount PIR Detector Spec Sheet (.pdf)
»Optex AP-360B(C) 360 Degree Wired Indoor Recessed Mount PIR Detector Installation Manual (.pdf)
»Optex AP-360BR(C) 360 Degree Battery Operated Indoor Recessed Mount PIR Detector Installation Manual (.pdf)
