  • Optex 180-Degree Panoramic Outdoor PIR & Microwave Dual-Tech Motion Detector, Anti-Masking

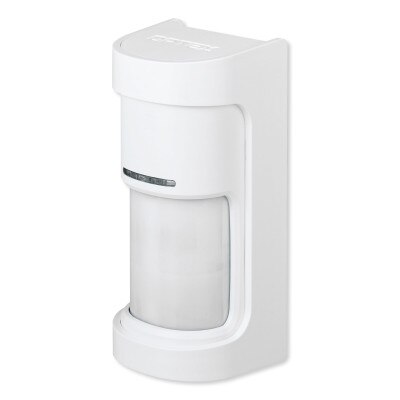

Optex 180-Degree Panoramic Outdoor PIR & Microwave Dual-Tech Motion Detector, Anti-Masking

SKU: OPWXSxDAM

Please Select Option To View Availability

$277.95 to $292.95

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Details

180° Wide Angle Outdoor Detection Coverage

Bring versatile and reliable outdoor motion detection into your home or business with the Optex 180° Panoramic Outdoor PIR & Microwave Dual-Tech Motion Detector with Anti-Masking. This outdoor motion detector utilizes PIR and Microwave detection zones to identify and notify you of movements of subjects such as humans, large animals, cars, and others while ignoring smaller subjects such as small pets or swaying branches. This greatly reduces the amount of excessive notifications or false alarms of detected movement, ensuring you are notified only when necessary. The sensor's 180° panoramic field of vision allows it to monitor large indoor or outdoor areas, and can identify which direction motion is coming from. Additionally, the motion detector features anti-masking functionality, digital triple layer detection, and SMDA Logic technology, which accounts for weather changes and wind-swept vegetation to easily distinguish between false alarms and real intrusions.

  • PIR and Microwave motion detector monitors a 180° detection area, up to 40ft per side for 80ft total coverage
  • Only alerts you of movement when a subject is seen by both PIR and microwave detection zones, eliminating false alarms from moving vegetation or small animals
  • Adjustable masking shutter lets you pick where you want the sensor to focus on
  • Settings for Left and Right detection zones can be separately configured, including range, sensitivity, and alarm output
  • Self learning infrared anti-masking functionality helps the sensor differentiate between direct sunlight, rain water, insects, and intentional tampering

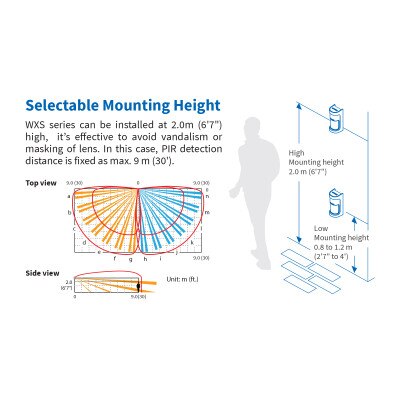

  • Adjustable height settings between 2'7 to 6'7 ft (0.8 to 2 M)
  • 40 feet wide angle with triple layer detection area
  • Available in Wired or Wireless options
  • Shield housing with IP55 protection and UV resistant ASA body

Digital Triple Layer Detection

The 180° Panoramic Outdoor PIR & Microwave Dual-Tech Motion Detector emits six areas of motion detection zones, 4 PIR and 2 microwave, within its field of view. This enables the device to only be triggered by moving subjects of certain sizes, such as a person or large animal, while ignoring movement from objects, vegetation, or small animals. An alarm will be generated only when a subject is detected by the upper and lower PIR detection areas as well as a microwave detection area simultaneously. This prevents the sensor, and your security system, from being triggered by false alarms. The detection range of the sensor varies based on the height the sensor is installed, between 30 to 40 ft long within a 180° wide area. The detection zone can be narrowed by sliding the masking shutter.

Installation Details

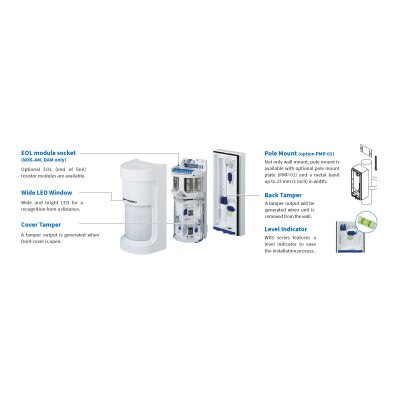

The Motion Detector mounts onto a wall with the included mounting bracket. Once the wall mount is installed, the Detector can be removed/fixed without any screws. The Detector's cover can also be opened/closed without any screws. The device can be pole mounted with the pole mount plate (PMP-01), sold separately. The device includes a built-in level indicator to simplify installation. Additionally, all configurable components are colored blue for easy adjustment of settings.

Contents

  • 180° Panoramic Outdoor PIR & Microwave Dual-Tech Motion Detector, Anti-Masking
  • (5) Area Masking Plate
  • (2) 4x20mm Mounting Screws
  • Velcro tape
  • Lock Screw
  • Manual
  • Velcro (WXS-RDAM only)
  • Connector for Power and Alarm (R) (WXS-RDAM only)
  • Connector for Alarm (L) (WXS-RDAM only)
  • Connector for Trouble Output (WXS-RDAM only)

Optex: The Quality Products People Expect

Optex specializes in passive and active infrared technology, control systems and CCTV products for home and business security. Since its founding in 1979, Optex has established a world-wide reputation for quality, innovation and technical excellence. Their products always represent an investment in performance and long-term satisfaction.

Specifications

  • Manufacturer Part #:
    • WXS-DAM: Hard Wired
    • WXS-RDAM: Wireless Ready
  • Detection Method:
    • WXS-DAM: Passive Infrared & Microwave
    • WXS-RDAM: Passive Infrared & Microwave
  • PIR Coverage:
    • High Mount: 9 m (30 ft) 180° wide
    • Low Mount: 40 ft (12 m) 180° wide
  • PIR Distance Limit:
    • High Mount: 9 m (fixed)
    • Low Mount: 2.5 to 12 m
  • Detectable Speed: 0.3 to 2.0 m / s (1' to 6'7" / s)
  • Sensitivity: 3.6 °F (2.0 °C) at 0.6 m / s selectable for each side
  • Power Input:
    • WXS-DAM: 9.5 to 18 V DC
    • WXS-RDAM: 3 to 3.6 V DC Lithium Battery
  • Current Draw:
    • WXS-DAM: 24 mA max. at 12 V DC
    • WXS-RDAM: 24 µ A standby / 6 mA max. at 3 V DC
  • Alarm Period: 2.0 ± 0.1 sec.
  • Warm-Up Period: 60 sec. or less (LED blinks)
  • Alarm (R) Output:
    • WXS-DAM: N.C. / N.O. Selectable 28 V DC 0.1 A max.
    • WXS-RDAM: N.C. / N.O. Selectable-Solid State Switch 10 V DC 0.01 A max.
  • Alarm (L) Output:
    • WXS-DAM: N.C. / N.O. Selectable 28 V DC 0.1 A max.
    • WXS-RDAM: N.C. / N.O. Selectable-Solid State Switch 10 V DC 0.01 A max.
  • Trouble Output:
    • WXS-DAM: N.C. 28 V DC 0.1 A max.
    • WXS-RDAM: N.C. / N.O. Selectable-Solid State Switch 10 V DC 0.01 A max.
  • Tamper Output:
    • WXS-DAM: N.C. 28VDC 0.1 mA max. open when cover unit, main unit or mounting plate is removed
  • LED indicator (Red):
    1. Warm-up
    2. Alarm
    3. Masking detection
    4. "High mount" only setting (When the tamper switch is activated, LED blinks
  • LED indicator (Yellow):
    1. Warm-up
    2. MW detection
  • Operation Temperature: -4 to 113°F (-20 to 45°C)
  • Environment Humidity: 95% max.
  • International Protection: IP 55
  • Mounting: Wall or Pole
  • Mounting Height/Weight: 2'7 to 4 ft (0.8 to 1.2 m)
  • Weight:
    • WXS-AM: 625 g (22.1 oz. / 1.38 lbs)
    • WXS-RAM: 770 g (27.2 oz. / 1.7 lbs)
