Optex InSight HX-80N Visual Verification Camera and PIR Detector

SKU: OPINSHX80N

Usually ships in 3-5 days.

$393.10

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Details

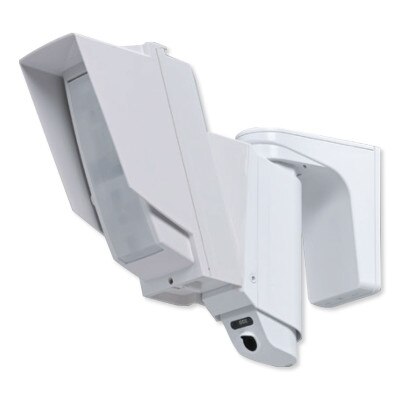

Outdoor Camera With PIR Motion Detector

Reduce the chances of false alarms and environmental obstruction with the Optex InSight HX-80N Visual Verification Camera and PIR Detector. This dual PIR camera and motion detector provides reliable surveillance coverage to any security system with its wide area of IR motion detection and field of view. In order for an alert to be triggered, both the PIR sensor and camera must detect a subject simultaneously. The camera's dual zone technology limits the amount of false alerts caused by small animals passing through or vegetation swaying in the wind. This model detects motion up to 80 feet away and provides 20 individual detection zones for customization.

  • Dual camera and PIR motion detector for high-end applications with severe environmental changes

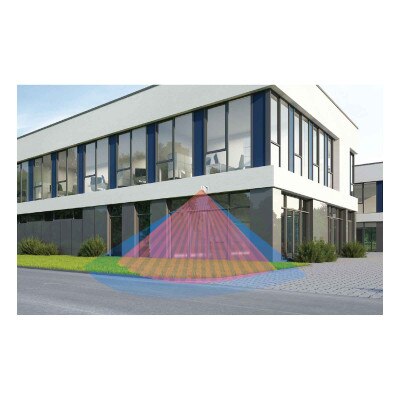

  • 80-foot L x 6'7-foot H coverage with 20 detection zones
  • Adjustable detection areas allow for precise surveillance monitoring
  • Dual zone detection limits false alarms caused by small animals or objects
  • Both upper and lower detection areas must be interrupted to trigger an alert
  • Wide and Narrow Detection area options greatly enhance security capabilities
  • Compliant with ONVIF compatible DVRs, NVRs, and other devices
  • Fully integrated with Optex Bridge devices and CHeKT online web portal

Optex Vision App

The Optex Camera and PIR Detector can be controlled through the Optex Vision app for iOS and Android. The Optex Vision app enables users to see real time feeds from their connected security cameras, receive notifications from triggered cameras or sensors, and review recorded footage saved on compatible DVR or NVR devices. Users may also utilize the app to adjust device settings and configurations.

Installation Details

The camera mounts onto an exterior wall with included mounting plate and hardware. The camera can be powered via DC power cable, PoE connection, or terminal wiring. The terminal wiring connection can alternatively be used as backup power if PoE connection is used as the primary power source.

Contents

  • Camera and PIR Detector
  • Mounting Plate
  • (2) Mounting Screws
  • Torx Wrench
  • Waterproof cap for LAN Connector

Optex: The Quality Products People Expect

Optex specialize in passive and active infrared technology, control systems and CCTV products for home and business security. Since its founding in 1979, Optex has established a world-wide reputation for quality, innovation and technical excellence. Their products always represent an investment in performance and long-term satisfaction.

Specifications

  • Manufacturer Part #: INS-HX-80N
  • UPC: 788924504278
  • Detection Method: Passive infrared
  • PIR Coverage: 80 x 6'7" feet (24 x 2 m) narrow / 20 zones
  • PIR Distance Limit:
    • 22 feet, 33 feet, 43 feet, 60 feet (6.5 m, 10.0 m, 13.0 m, 18.0 m)
    • Default setting: 43 feet (13 m)
  • Detectable Speed: 1 foot/second to 5 feet/second (0.3 m/s to 1.5 m/s)
  • Sensitivity: 3.6° F (2.0° C) at 0.6 m/s
  • Power Input:
    • PoE (IEEE 802.3af compliant)
    • Mini-jack 12 V DC; 420 mA max
    • Terminal 9.5 to 18 V DC; 35mA max at 12 v DC
  • Alarm Period: 2.0 ±1 second
  • Warm-Up Period: Approx. 60 seconds (LED blinks)
  • Alarm Output: N.C./N.O. switchable, 28 V DC; 0.1 A max
  • Tamper Output: N.C. 28 V DC; 0.1 A max. Open when the cover is opened.
  • LED Indicators:
    • Warm-up
    • Alarm
    • Viewing Angle: 114 H° 61 V°
  • Minimum Illumination:
    • With Color: 0.02 lux
    • Colorless with IR: 0 lux
  • IR Illumination: Visible up to 39ft (12m)
  • Night Vision: Day and Night Automatic / Manual Switching
  • Image Compression: H.264, H.265, MJPEG
  • Resolution and Frame Rate: 1080@30fps, D1 (704 x 480 or 704 x 576)
  • Network Protocol: IPv4; TCP/IP, UDP, RTP (UDP/TCP), RTSP, NTP, HTTP, HTTPS, SSL, DHCP, SNMPv1/v2/v3 (MIB-2), ONVIF
  • Security: HTTPS (SSL), IP Filtering, 802.1x, Digest authentication (ID/PW)
  • RF Interference: No alarm 10 V/m
  • Operating Temperature: -22 to 122° F (-30 to 50° C)
  • Operating Humidity: 95 percent max.
  • Weatherproof Rating: IP55
  • Mounting: Wall (Outdoor, Indoor)/ Gang box
  • Mounting Height: 8'2" to 9'10" (2.5 to 3.0 m)
  • Bracket Adjust Angle: Vertical: ±20° ; Horizontal: ±95°
  • Weight: 2.64 lbs (1.2kg)
  • Warranty: 2 Year

Downloads

»Optex INS-HX-80N InSight Series Visual Verification PIR Camera Quick Start Guide (.pdf)
»Optex INS-HX-80N InSight Series Visual Verification PIR Camera Installation Manual (.pdf)
»Optex InSight Series IP Camera User Manual (.pdf)
»Optex InSight Series IP Camera VCA User Manual (.pdf)
