Napco StarLink Connect MAX Universal Cell/IP Communicator & Hub with Z-Wave Control

Keep Your Security System Online with Via a Cellular Network

Keep your security system always online via cellular networks with the StarLink Connect MAX Universal Cell/IP Communicator & Hub with Z-Wave Control. This two channel (Dual Path) cellular transmitter module connects to a 5G cellular network, either AT&T or Verizon, as well as your Internet network, to ensure your security system is always online. Additionally, this Communicator allows your connected security panel to command Z-Wave security devices thanks to a built-in Z-Wave chipset. The Communicator can be configured to connect to one cell network and your local Internet via Ethernet or keep only one channel active. The Communicator is compatible with any 12V security panels using Contact ID or 4/2 connections.

• Communicator in white plastic enclosure sends reports from any 15V security or alarm panel to connected mobile devices or emergency services using 5G LTE wireless or Ethernet connections
• Dual path communications maintain Internet connection via 5G LTE cellular network or local IP network, depending on strongest signal strength for guaranteed online connection
• Choose between sole path (cellular or IP) or dual path connection; Internet connection only required for video surveillance applications
• Z-Wave chipset provides control over Z-Wave devices to increase the amount and complexity of security capabilities
• Backwards compatible with existing 15V control panels that communicate using Contact ID and 4/2 connections
• Patented Signal Boost™ Circuitry & dual-diversity twin antennas, maximize signal acquisition and minimize signal interference and drop-outs
• Place unit up to 100 feet from the control panel for optimal performance
• Setup and monitor locations with the Napco Gemini App

Ensure your property is properly monitored with Napco's Gemini app

The Gemini Commercial App provides smart multi-tier controls for business and end user accounts of all sizes, on all NAPCO Gemini Security &/or Integrated Access Control Systems with up to 255 zones. The app connects via StarLink Connect LTE or MAX 5G Cellular/IP Communicators and allows users to upgrade and safeguard their accounts on any smartphone or device.

The Gemini Commercial App features easy intuitive mobile control of security systems and/or their integrated access control systems, supporting multi-tier user/manager levels, and privileges on one or across multiple areas, as applicable. Users interact with an easy graphical icon-based screen & traditional virtual 3D keypad to coordinate with connected devices. Dealers enjoy additional features including keypad programming mode, scheduling, zone description templates & address book utility.

• Dealer and business catered mobile app for setting up security systems
• Features include dealer keypad programming mode, address book, scheduling, zone description templates and more
• Reports activity and alarm logs, zone open lists, users codes and registry of access cards
• Supports smart notifications triggered by system-based events including Alerts, Reminders, Confirmations & SMS and/or MMS Text Notifications with Video Alerts
• Customizable to appear as Dealer's own app with logo and About Us / Contact info with easy upload (patented)
• Select your communication monitoring subscription at www.napcocomnet.com

Installation Details

The Communicator Module can be installed and setup in four easy steps:

• First, register your new StarLink communicator module online www.napcocomnet.com
• Next, mount the module up to 100 feet away from your alarm security panel and attach the antennas
• Wire the radio module to the alarm panel
• Test for power and signal connections

Z-Wave Plus v2 Certification

Z-Wave Plus v2 is an upgraded Z-Wave certification program to help you identify products that take advantage of the latest Z-Wave hardware platform, also known as 700 Series or Gen7 Z-Wave. Z-Wave Plus v2 compatible devices include extended wireless range up to 1300 ft/600 m, three layers of encryption, faster operation, and longer battery life.

Contents

• Communicator Module with Plastic Housing
• Power Supply
• Backup Battery
• Mounting Hardware

Notes

• Z-Wave integration not available on Metal models (sold separately).
• Requires a compatible security control panel (sold separately).
• Regular testing and maintenance are recommended for optimal performance.
• Professional installation is recommended for compliance and safety.

Security By Napco

The Napco Security Group is a leading diversified manufacturer of security products, encompassing burglar and fire alarms, access control systems, video and electronic digital and proximity locks, as well as panic exit hardware. Sold and installed by tens-of-thousands of security professionals, from security dealers to locksmiths to systems integrators, millions of homes, businesses, institutions, and people around the globe are protected by products from the Napco Group of Companies.

• Manufacturer Part #:

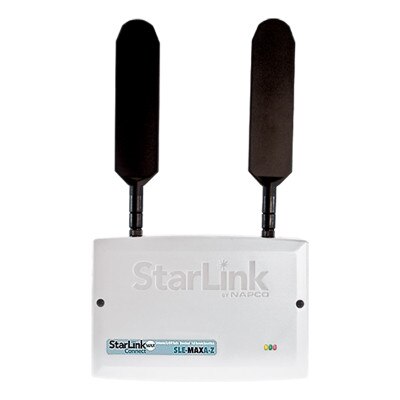

• SLE-MAXA-Z: AT&T Compatible with Z-Wave

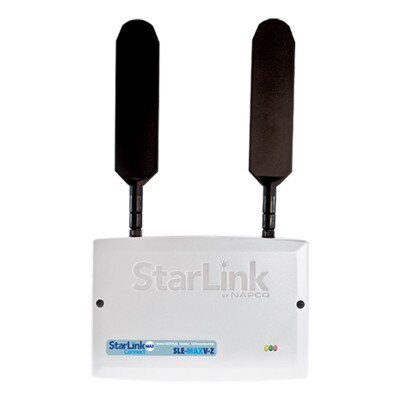

• SLE-MAXV-Z: Verizon Compatible with Z-Wave
• Housing: Durable ABS plastic (white) includes three keyhole slots for mounting (easy alignment with triple gang boxes)
• External Diagnostic LED Indicators:
• Green: Signal Strength
• Amber: Busy/Activation
• Red: Trouble
• Internal Diagnostic LED Indicators:
• Blue: AT&T active network connection
• Red: Verizon active network connection
• Electrical Ratings:
• Input Voltage: 10-15VDC (power-limited output from control panel)
• Input Current: 10V = 70mA, 12V-15V = 65mA
• Standby current: 100mA (110mA with telco EOLR)
• Maximum Charging Current: 200mA
• Ratings for IN 1 Burg/Fire Input:
• Input Voltage: 9-15VDC
• Maximum Input Current: Up to 2mA from FACU NAC circuit
• Ratings for IN 2 to 5 (Class B):
• Maximum Loop Voltage: 15VDC
• Maximum Loop Current: 1.2mA
• End of Line Resistor (EOLR) Value: 10K
• PGM Output (3) Ratings:
• Open Collector Outputs: 3V Max when active; 15V Max., inactive
• PGM Max Sink Current: 50mA (up to 15VDC), 15mA (15.1VDC – 15VDC)
• Environmental Ratings:
• Operating Environment: 32-120°F (0 to 49°C)
• Operating Humidity: Maximum 93% (non-condensing)
• Dimensions:
• Communicator: 7-7/8" W x 5-3/8 H x 1-7/8" D
• Antennas: 8-1/4"
• Housings: 2 Keyholes for wall mounting
• Weight: 13.5 oz
• Compliances: UL 1023, UL285, UL 1610, UL 2610, FDNY COA, CSFM, NFPA 72 Editions: 2007, 2010, 2013, 2016, 2019
• Warranty: 3 Year
