Luxul Gigabit 8-Port POE+ Switch

SKU: LXSW10008P

Usually ships in 3-5 days.

$Dealer

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Details

DEALER ONLY ITEM: Not Available Directly to End Users.

Dealers, log on to see pricing. »Sign up to become an authorized installer.

Power Ethernet Connected Devices Through Your Network Switch

Power and connect Internet-connected devices with the Luxul Gigabit 8-Port POE+ Switch. This plug-and play network switch supports Gigabit speeds to distribute between 8 connected POE and IP devices, such as automation hubs, video surveillance cameras, WiFi routers, and more.

  • Gigabit network switch supports up to 8 PoE-Enabled Devices (Max Output 92 Watts)
  • Supports various applications including home automation, video streaming, video surveillance, etc
  • Surge-Protection for each individual port
  • Fanless for silent operation

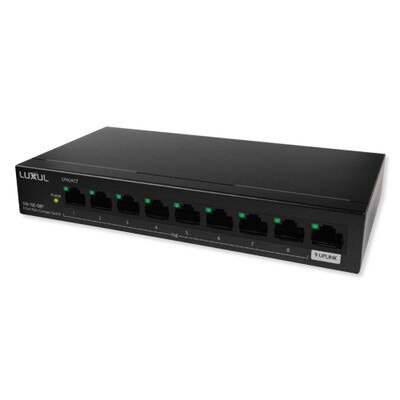

All network ports are located on the front of the device. LEDs display connection and power status for each connected device. The switch can be rack mounted or placed on a desktop with included rubber feet.

Luxul ProWatch Provides Off-Site Monitoring

ProWatch is a free cloud management solution that provides app-based remote monitoring and management of your network devices from anywhere with an Internet connection. ProWatch consists of three classifications: ProWatch Enabled, ProWatch Integrated, and ProWatch+.

  • ProWatch Enabled products are designed with ProWatch compatibility to provide remote access and monitoring of the device, deliver alert notifications and firmware updates, and allow for remote rebooting of the device.
  • ProWatch Integrated products are devices that have been added into a ProWatch connected network and are capable of reporting information to the network.
  • ProWatch+ products allow non-ProWatch enabled devices to be controlled remotely and report information as if they were native ProWatch Enabled devices.

As a ProWatch Integrated device, this device is capable of self-reporting its information to a connected ProWatch+ device, such as a Luxul router, Mesh Node, or Access Point.

Contents

  • Network Switch
  • Power Supply
  • Rubber feet
  • Quick Install Guide

Simply Connected Network Design

Luxul is a leading innovator of custom IP networking solutions and installations. Luxul provides a complete line of network devices and accessories for residential and commercial applications that serve to streamline network design and functionality. With Luxul, installers can deliver scalable IP networks that are easier to install and configure compared to traditional networking systems.

Specifications

Requirements

  • Devices supporting 802.3 Ethernet, 802.3u Fast Ethernet, or 802.3ab gigabit Ethernet
  • Ethernet cable (sold separately)
  • Internet connection to view documentation online

Technical Details

  • Manufacturer Part #: SW-100-08P
  • UPC: 655003921670
  • Number of Ports: 8 port Gb PoE+ with uplink
  • Switching Capacity: 18 Gbps
  • LEDs: Power and Link/Act
  • Power Supply: External power supply
    • Input: 100-240VAC, 50/60Hz
    • Output: 51VDC, 1.25A
  • Power:
    • Power Budget: 92W
    • Max Power Consumption: 5.8W min to 117W max
  • Surge Protection: Surge 6KV
  • Dimensions: 7" L x 4.3" W x 1.1" H (177.8 L x 109.22 Wx 27.94 H mm)
  • Weight: 2.6 lbs (1.2 kg)
  • Operating Temperature: 32°F to 104°F (0°C to 40°C)
  • Operating Humidity: 10% to 90% (Non-condensing)
  • Standards: IEEE802.3, IEEE802.3u, IEEE802.3x, IEEE802.3af, IEEE 803.at, IEEE802.3ab
  • Certifications: FCC, IC, RCM, CE-EMC, CE-LVD (IEC-62368-1), CB Report
  • Warranty: 3-Year Limited
