Luxul Epic 3 Whole Home Wi-Fi System with AC3100 Gigabit Router & AC1900 Access Point

SKU: LXWS250

Usually ships in 3-5 days.

$Dealer

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Details

DEALER ONLY ITEM: Not Available Directly to End Users.

Dealers, log on to see pricing. »Sign up to become an authorized installer.

Complete Kit Provides 802.11ac Wireless Coverage

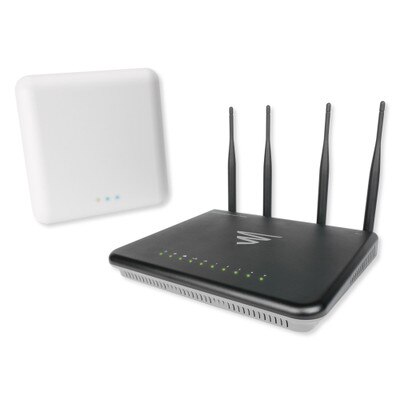

This Luxul Wireless Router Kit includes an Epic 3 Router and an XAP-1510 Access Point to provide powerful 802.11ac wireless coverage for large sized homes or small businesses. The Epic 3 Router features advanced Wave 2 technology, Roam Assist technology, and built-in Domotz remote management software. These features will improve Wi-Fi performance, provide seamless roaming for mobile devices, and allow you to manage your network from anywhere. The XAP-1510 Access Point is easy to install, has 3 dual-band antennas, and provides dual-band beamforming technology for creating a wireless connection that's faster, stronger, and more reliable.

  • 4x4 MU-MIMO (Wave 2) technology provides powerful Wi-Fi coverage and routing
  • Access point with 3 dual-band antennas for strong, stable wireless connection
  • Built-in Domotz remote management allows you to manage networks from anywhere (subscription required)
  • Provides four Gigabit ports, a WAN port, and 3.0 port
  • Wireless data transfers of up to 3100Mbps
  • 2.4 and 5Ghz beamforming technology for optimal Wi-Fi performance
  • Supports up to two Access Points

Additionally, the Epic 3 Router features one WAN port for your Internet connection and four Gigabit ports (10/100/1000Mbps) to connect up to four network devices via Ethernet cables. It also provides wireless data transfer speeds of up to 3100Mbps and will filter content and Internet use with Router Limits.

Luxul ProWatch Provides Off-Site Monitoring

ProWatch is a free cloud management solution that provides app-based remote monitoring and management of your network devices from anywhere with an Internet connection. ProWatch consists of three classifications: ProWatch Enabled, ProWatch Integrated, and ProWatch+.

  • ProWatch Enabled products are designed with ProWatch compatibility to provide remote access and monitoring of the device, deliver alert notifications and firmware updates, and allow for remote rebooting of the device.
  • ProWatch Integrated products are devices that have been added into a ProWatch connected network and are capable of reporting information to the network.
  • ProWatch+ products allow non-ProWatch enabled devices to be controlled remotely and report information as if they were native ProWatch Enabled devices.

As a ProWatch Enabled and ProWatch+ device, this device allows for remote monitoring of networks, either local or remote, and devices connected to the network, as well as allowing for remote reboots, power cycling, firmware updates, and notification delivery.

Contents

  • Dual-Band Wireless AC3100 Gigabit Router
  • High Power AC1900 Dual-Band AP
  • Mounting Bracket and Hardware
  • PoE Injector
  • Power Adapter
  • (4) Dual-Band Omni-Directional Antennas
  • (2) Quick Install Guide

Simply Connected Network Design

Luxul is a leading innovator of custom IP networking solutions and installations. Luxul provides a complete line of network devices and accessories for residential and commercial applications that serve to streamline network design and functionality. With Luxul, installers can deliver scalable IP networks that are easier to install and configure compared to traditional networking systems.

Specifications

Product Features

  • Concurrent dual-band wireless 802.11ac
  • Up to 4 SSIDs per band (8 Total)
  • VLAN support for secure guest networking
  • VPN remote access
  • Quality of service (QoS)
  • Network security and firewall

Requirements

  • Web Browser
  • Ethernet Cable
  • Internet Connection
  • Domotz subscription service required

Technical Details

  • Manufacturer Part #: WS-250
  • UPC: 655003920772
  • Warranty: 3-Year Limited

Epic 3 Router (XWR-3150)

  • Manufacturer Part #: XWR-3150
  • Standards Compliance: 2.4GHz: IEEE802.11n, IEEE802.11g, IEEE 802.11b 5.xGHz: IEEE 802.11n, IEEE 802.11a; 802.11ac, IEEE802.3, IEEE802.3u, IEEE802.3ab
  • Interface:
    • One 10/100/1000M WAN Port
    • Four 10/100/1000M LAN Ports
    • One USB 3.0 Port
  • Antenna: Four 5dBi Detachable Omni-Directional Antennas
  • Power Input: 12V/3A DC Power Jack
  • Max Power Consumption: 35W
  • Dimensions: 9.3 x 7 x 1.65 inches (236 x 178 x 42mm)
  • LEDs: Power, SYS, USB, WAN, LAN (4), 5GHz, 2.4GHz
  • Frequency: Concurrent 2.4GHz & 5GHz with Dual-Band Beamforming
  • Warranty: 3-Year Limited

Access Point (XAP-1510)

  • Standards Compliance: IEEE, 802.11b/g/n, 802.11a/n/ac, 802.3at
  • Interface: Two 10/100/1000M Ports
  • Antenna: Three Dual-Band Antennas
  • Power: PoE (Injector Included)
  • Power: 15W Avg.
  • Max Power Consumption: 26W
  • Environmental Temperatures: 32°F to 122°F (0°C to 50°C)
  • Dimensions: 7.25 x 7.25 x 2 inches (184.15 x 184.15 x 50.8mm)
  • LEDs: Power, 2.4GHz, 5GHz (Can be turned Off/On Via User Interface
  • Frequency: Concurrent 2.4GHz & 5GHz
  • Wireless Speed:
    • 2.4GHz: 600Mbps;
    • 5GHz: 1.3Gbps
  • Wireless Security: WPA-PSK, WPA2-PSK, WPA/WPA2
  • Warranty: 3-Year Limited

Downloads

»Luxul WS-250 Whole Home WiFi System Spec Sheet (.pdf)
»Luxul XAP-1510 High Power AC1900 Dual-Band Wireless Access Point Installation Manual (.pdf)
»Luxul XWR-3150 Epic 3 Dual-Band AC3100 Gigabit Router Installation Manual (.pdf)
